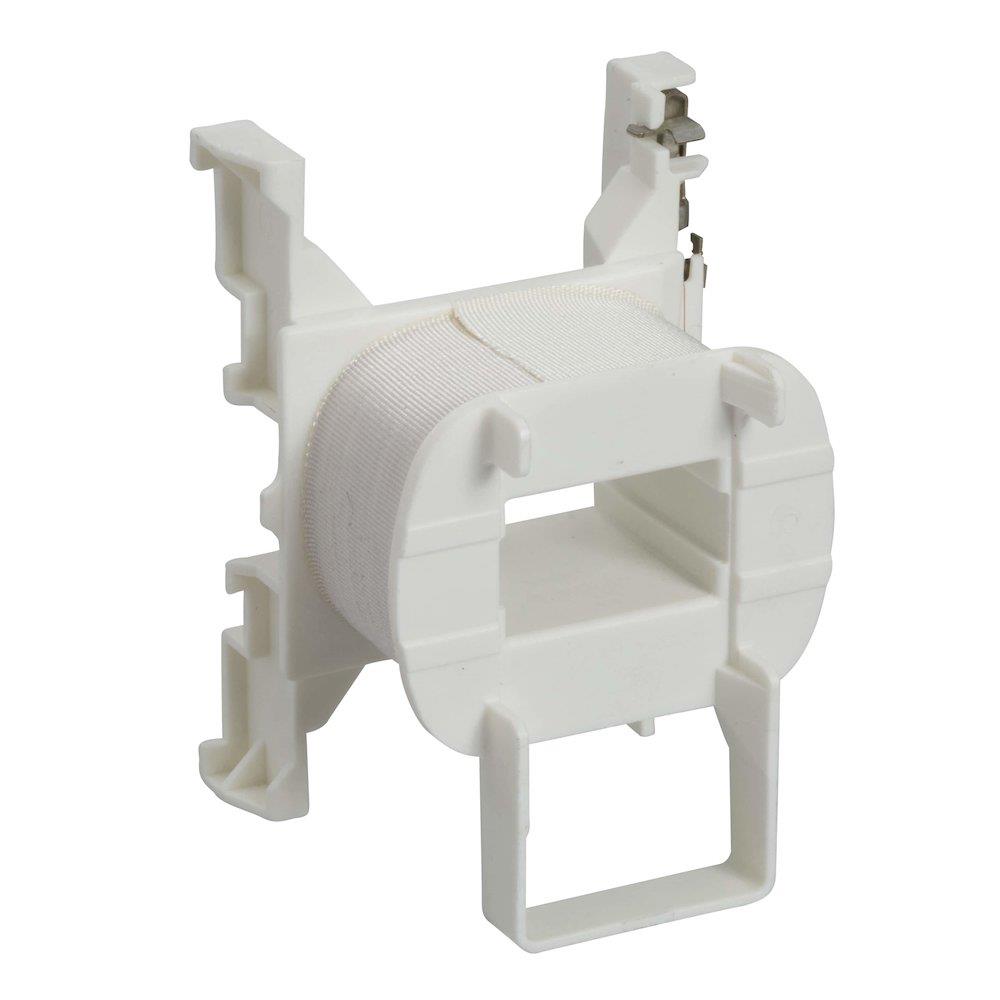

Schneider LXD1 Coil - TeSys D 3389110970838

Schneider LXD1 Coil. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D. Supplied under manufacturer part number LXD1S7, EAN 3389110970838, HS code 8504.50, country of origin France.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

REACH SVHC substance above 0.1%

None

Carbon footprint (EPD)

0.3519 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85045000

HS code

8504.50

Manufacturer part number

LXD1S7

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD1

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

500 V AC 50/60 Hz

Average resistance

2499 Ohm at 20 °C

Inductance of closed circuit

95 H

Product compatibility

CAD; LC1D09...D38; LC1DT20...DT40

Mechanical durability

15 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

2…3 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Number of Units in Package 1

1

Number of Units in Package 2

30

Warranty (in months)

18

EAN

3389110970838

HS Code

8504.50

• EAN 3389110970838
• MPN LXD1S7
