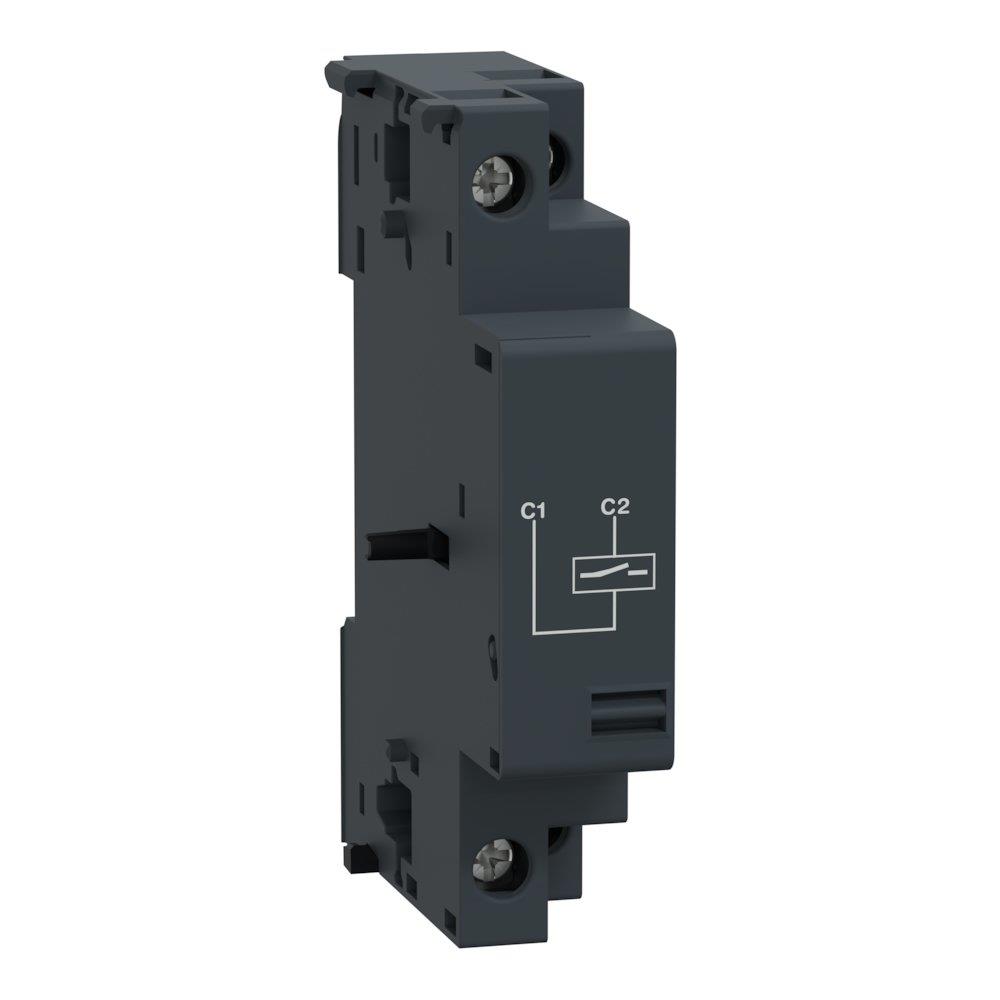

Schneider GVAS Undervoltage release - TeSys D, 115 ACV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider GVAS Undervoltage release. Motor protection and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, voltage 115 V AC. Supplied under manufacturer part number GVAS115, EAN 3389110343625, HS code 8536.50, country of origin Czechia.
Technical Specifications
- Product type
- Motor protection and accessories
- Product group
- Components for panels and boxes
- Series
- TeSys D
- Voltage
- 115 V AC
- Carbon footprint (EPD)
- 0.9036 kg CO2e per pcs
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 85365080
- HS code
- 8536.50
- Manufacturer part number
- GVAS115
- Range
- TeSys; TeSys Deca
- Product or component type
- Shunt trip release
- Device short name
- GVAS
- [Uc] control circuit voltage
- 127 V AC 60 Hz; 110...115 V AC 50 Hz
- Range compatibility
- TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca
- Control circuit voltage limits
- 0.7...1.1 Un
- [Ui] rated insulation voltage
- 690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1
- Threshold tripping voltage
- 0.75...0.2 Un
- Inrush power in VA
- 14 VA AC
- Inrush power in W
- 10.5 W
- Hold-in power consumption in VA
- 5 VA AC
- Hold-in power consumption in W
- 1.6 W
- Operating time
- 10...15 ms conforming to IEC 60947-1
- On-load factor
- 100 %
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
- Tightening torque
- < 1.4 N.m on screw clamp terminals
- Mechanical durability
- 10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P
- Quantity per set
- Set of 10
- Height
- 89 mm
- Width
- 18 mm
- Depth
- 66 mm
- Product weight
- 0.105 kg
- Colour
- Dark grey
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Warranty (in months)
- 18
- EAN
- 3389110343625
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3389110343625
- MPN GVAS115
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60N Circuit breaker - MULTI9 C60, 10A, 2P, D
M9F12210
Schneider Electric
Schneider NSX160S Maximum breaker - 3606481999849
C16S4
Schneider Electric

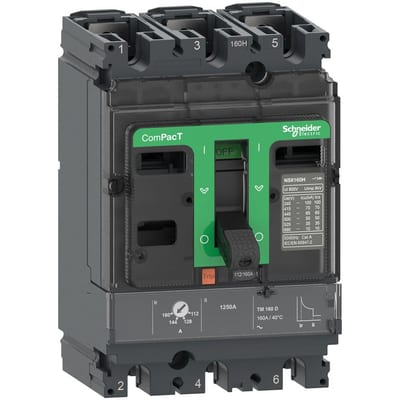

Schneider NSX100H Maximum breaker - 3606481998439
C10H3TM016
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 0.5A, 2P, C
A9F04270
Schneider Electric

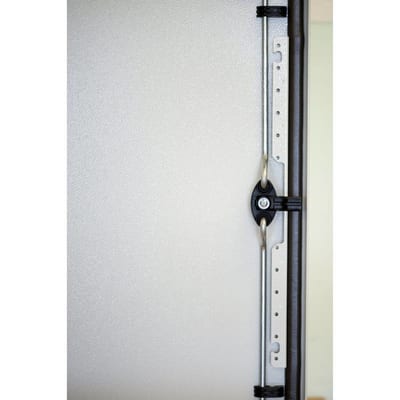

Schneider Spacial S3D Rod Drive - 3606480428395
NSYBTAS3D90
Schneider Electric

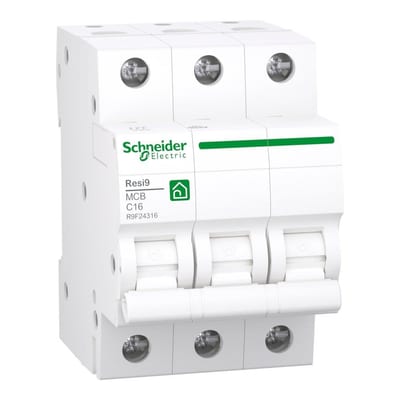

Schneider RESI9 XP MCB Circuit breaker - RESI9 XP, 16A, 3P, C
R9F24316
Schneider Electric

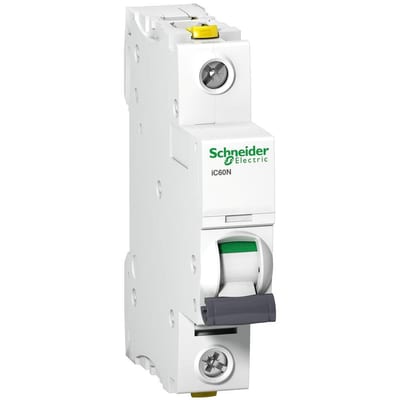

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 63A, 1P, D
A9F05163
Schneider Electric

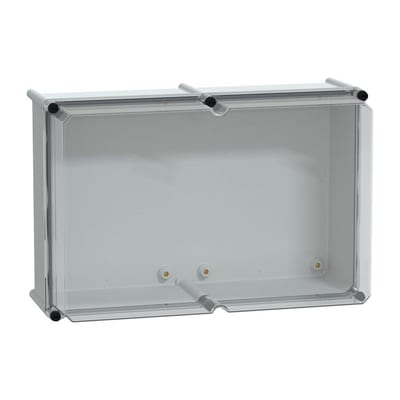

Schneider Thalassa PLS Box transparent - 360 x 540mm, 230mm, grey, PC ( Polycarbonat )
