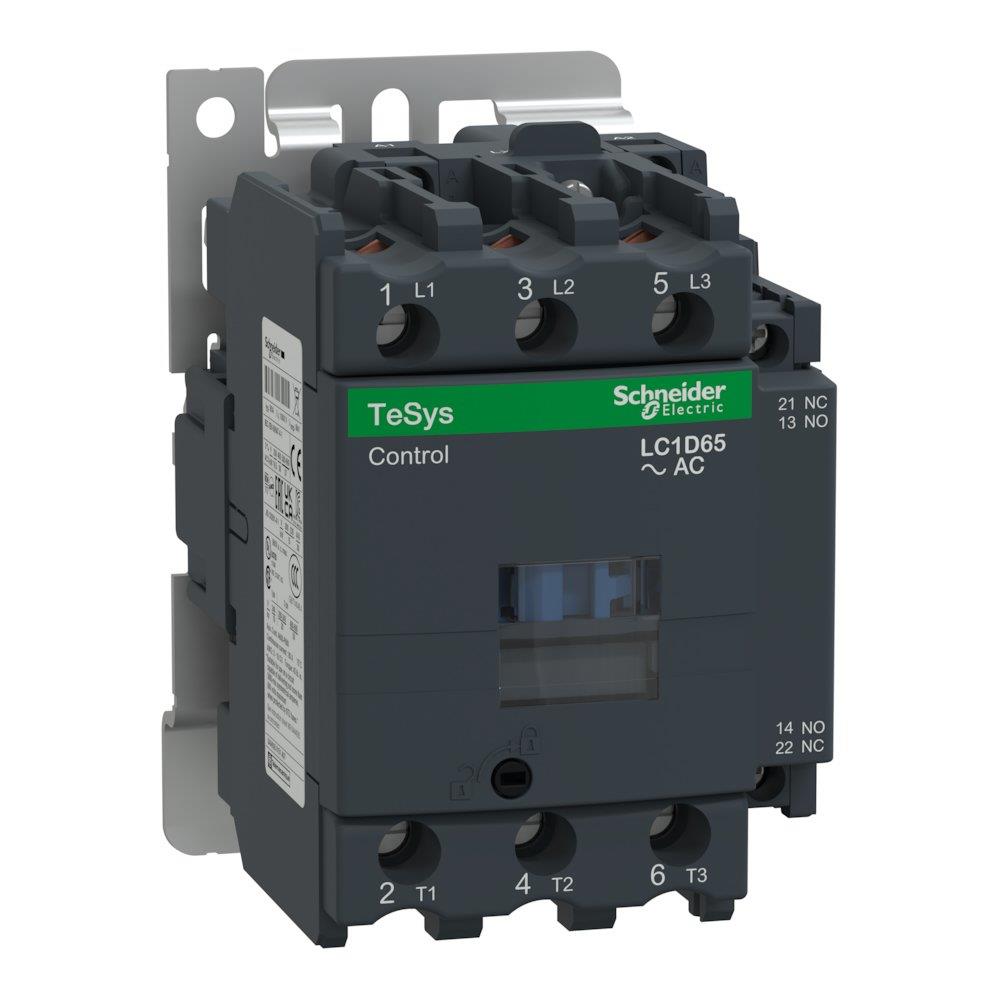

Schneider LC1D Contactor - TeSys D, 65A, 3P

Schneider LC1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, current 65 A, number of poles 3P. Supplied under manufacturer part number LC1D65N7, EAN 3389110437416, HS code 8536.49, country of origin Czechia.

Product type

Contactors and thermal relays Product group: Components for panels and boxes Series: TeSys D Current: 65 A Number of poles: 3P Carbon footprint (EPD): 5.9294 kg CO2e per pcs Country of origin: Czechia Customs tariff code (EU CN): 85364900 HS code: 8536.49 Manufacturer part number: LC1D65N7 Range: TeSys Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load; Motor control Utilisation category: AC-1; AC-2; AC-3; AC-3e; AC-1 Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit; 65 A (at <60 °C) at 415 V AC AC-3 for power circuit; 80 A (at <60 °C) at 415 V AC AC-1 for power circuit [Uc] control circuit voltage: 415 V AC 50/60 Hz Motor power kW: 11 kW at 400 V AC 50 Hz (AC-4); 30 kW at 380...400 V AC 50 Hz (AC-3); 37 kW at 660...690 V AC 50 Hz (AC-3); 18.5 kW at 220...230 V AC 50 Hz (AC-3); 37 kW at 1000 V AC 50 Hz (AC-3); 30 kW at 440 V AC 50 Hz (AC-3e); 30 kW at 380...400 V AC 50 Hz (AC-3e); 37 kW at 500 V AC 50 Hz (AC-3e); 37 kW at 660...690 V AC 50 Hz (AC-3e); 18.5 kW at 220...230 V AC 50 Hz (AC-3e); 30 kW at 415 V AC 50 Hz (AC-3e); 37 kW at 1000 V AC 50 Hz (AC-3e); 37 kW at 500 V AC 50 Hz; 30 kW at 380...400 V AC 50 Hz Motor power hp: 10 hp at 230/240 V AC 60 Hz for 1 phase motors; 20 hp at 200/208 V AC 60 Hz for 3 phases motors; 20 hp at 230/240 V AC 60 Hz for 3 phases motors; 40 hp at 460/480 V AC 60 Hz for 3 phases motors; 50 hp at 575/600 V AC 60 Hz for 3 phases motors; 5 hp at 115 V AC 60 Hz for 1 phase motors Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 80 A (at 60 °C) for power circuit; 10 A (at 60 °C) for control circuit Irms rated making capacity: 140 A at 440 V AC for control circuit conforming to IEC 60947-5-1; 140 A AC for control circuit conforming to IEC 60947-5-1; 1000 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 1000 kA at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 520 A 40 °C - 10 s for power circuit; 900 A 40 °C - 1 s for power circuit Associated fuse rating: 125 A gG at <= 690 V coordination type 1 for power circuit; 125 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-1; 10 A gG for control circuit conforming to IEC 60947-5-1 Average impedance: 1.5 Ohm - Ith 80 A 50 Hz for power circuit Power dissipation per pole: 6.4 W AC-1; 4.2 W AC-3e; 6.3 W AC-3; 9.6 W AC-1 [Ui] rated insulation voltage: Control circuit: 600 V UL certified; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified conforming to IEC 60947-1; Control circuit: 690 V conforming to IEC 60947-1; Power circuit: 690 V CSA certified conforming to IEC 60947-1; Control circuit: 600 V CSA certified Overvoltage category: III [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 6 Mcycles Control circuit type: AC at 50/60 Hz Coil technology: Without built-in Control circuit voltage limits: 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz; 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz; 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz; 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz Inrush power in VA: 160 VA cos phi 0.75 (at 20 °C); 140 VA cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 15 VA 50 Hz cos phi 0.3 (at 20 °C); 13 VA 60 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 4…5 W at 50/60 Hz for control circuit Operating time: 12...26 ms closing; 4...19 ms opening Maximum operating rate: 3600 cyc/mn at 60 °C Connections - terminals: Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: rigid; Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: rigid without cable end; Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2; Power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm; Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2; Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm Auxiliary contact composition: 1 NO + 1 NC Auxiliary contacts type: type mirror contact 1 NC conforming to IEC 60947-4-1; type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 Terminals description ISO n°1: (13-14)NO; (21-22)NC minimum switching voltage: 17 V for control circuit minimum switching current: 5 mA for control circuit Insulation resistance: > 10 MOhm for control circuit Non-overlap time: 1.5 ms on energisation between NC and NO contacts; 1.5 ms on de-energisation between NC and NO contacts Mounting support: Rail; Rail Standards: IEC 60947-5-1; EN 60947-4-1; IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 14 Product certifications: GOST; CSA; DNV; UL; CCC; LROS (Lloyds register of shipping); BV; RINA; UKCA; DNV IP degree of protection: IP2X conforming to VDE 0106; IP2X conforming to IEC 60529 Protective treatment: TH (pollution degree 3) conforming to IEC 60068-2-30 Climatic withstand: conforming to IACS E10 exposure to damp heat Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Shocks contactor closed (15 Gn for 11 ms) ; Vibrations contactor opened (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) ; Shocks contactor opened (10 Gn for 11 ms) Height: 122 mm Width: 70 mm Depth: 118 mm Product weight: 2.185 kg Quantity per set: Set of 10 Warranty (in months): 18 EAN: 3389110437416

HS Code

8536.49

• EAN 3389110437416
• MPN LC1D65N7
