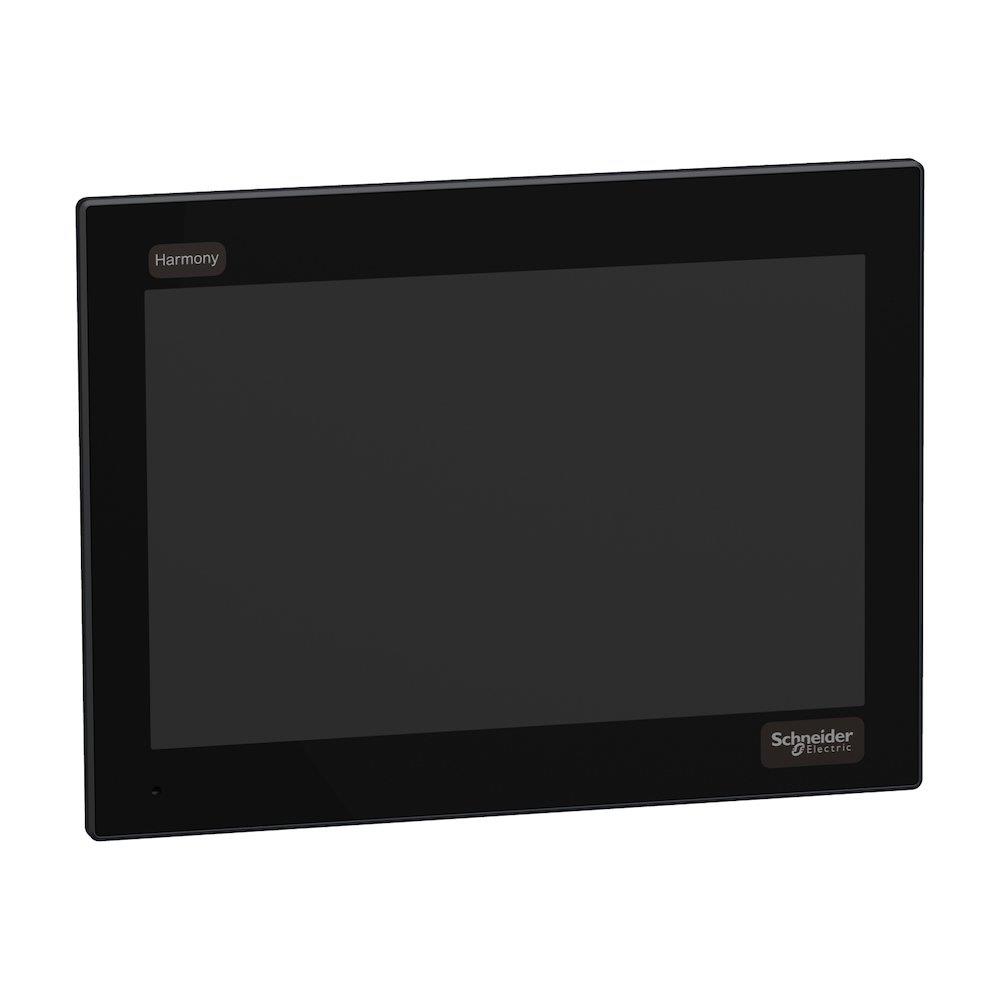

Schneider Harmony P6 Screen - HMIDM6600WC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Harmony P6 Screen. Industrial PC (Electrical Engineering / Industry and automation). Principal data: type HMIDM6600WC. Supplied under manufacturer part number HMIDM6600WC, EAN 3606481808462, HS code 8529.90, country of origin France.
Technical Specifications
- Product type
- Industrial PC
- Product group
- Industry and automation
- Type
- HMIDM6600WC
- Carbon footprint (EPD)
- 16.8227 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85299096
- HS code
- 8529.90
- Manufacturer part number
- HMIDM6600WC
- Range of product
- Harmony P6
- Product or component type
- Touch panel screen
- Display size
- 12.1 inch
- Aspect ratio
- 16:9
- Display colour
- 16 million colours
- Pixel resolution
- 1280 x 800
- Inrush current
- 30 A
- Cut-out dimensions
- 295 (+ 1/- 0) x 217 (+ 1/- 0) mm
- Width
- 308.5 mm
- Height
- 230.5 mm
- Product weight
- 2.6 kg
- Pollution degree
- 2
- Product certifications
- RCM; KC; UKCA; DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot); ATEX zone 22 dust (DC model, front USB cover must be locked with screw); ATEX zone 2 (DC model, front USB cover must be locked with screw); CULus Class 1 Division 2 (without DIO option); IECEx zone 2 (DC model, front USB cover must be locked with screw); IECEx zone 22 (DC model, front USB cover must be locked with screw)
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- 0…60 °C
- Shock resistance
- 147 m/s² conforming to IEC 61131-2; 147 m/s² 3 shocks in each direction X, Y and Z
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Warranty (in months)
- 18
- EAN
- 3606481808462
Standards & Compliance
- HS Code
- 8529.90
Cross References
- EAN 3606481808462
- MPN HMIDM6600WC
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider 270 Paint Marker - yellow, 1-3mm
212204
Schneider Electric
Schneider RESI9 MP Covering front white / white - 3 x 12
MIP30312
Schneider Electric
Schneider ACTI9 Vigi NG125 Residual current device PFI - ACTI9 Vigi NG125, 125A, 4P
3303430190561
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 6A, 3P, C
A9F04306
Schneider Electric
Schneider NSX100F Maximum breaker - 3606481997500
C10F4TM063
Schneider Electric
Schneider Modicon TM5 Expansion Module - 24V 3595864074900
TM5SPS1
Schneider Electric

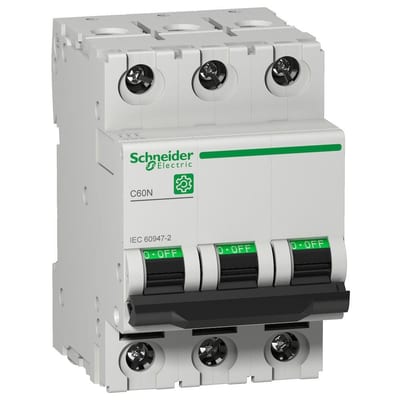

Schneider MULTI9 C60N Circuit breaker - MULTI9 C60, 63A, 3P, C
M9F11363
Schneider Electric

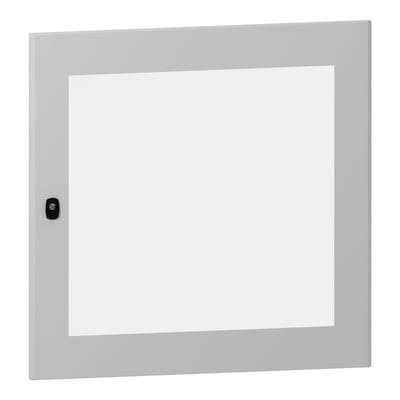

Schneider Spacial S3D Door - 800 x 800mm
NSYDS3D88T
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HMIDM6600WC?
- HMIDM6600WC can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is HMIDM6600WC.
- What is the HS code for HMIDM6600WC?
- The customs tariff (HS) code for HMIDM6600WC is 8529.90.
- Who manufactures HMIDM6600WC?
- HMIDM6600WC is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for HMIDM6600WC?
- Yes — the HMIDM6600WC datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HMIDM6600WC?
- The minimum order quantity is 1.
- Is HMIDM6600WC available?
- Yes — HMIDM6600WC is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
