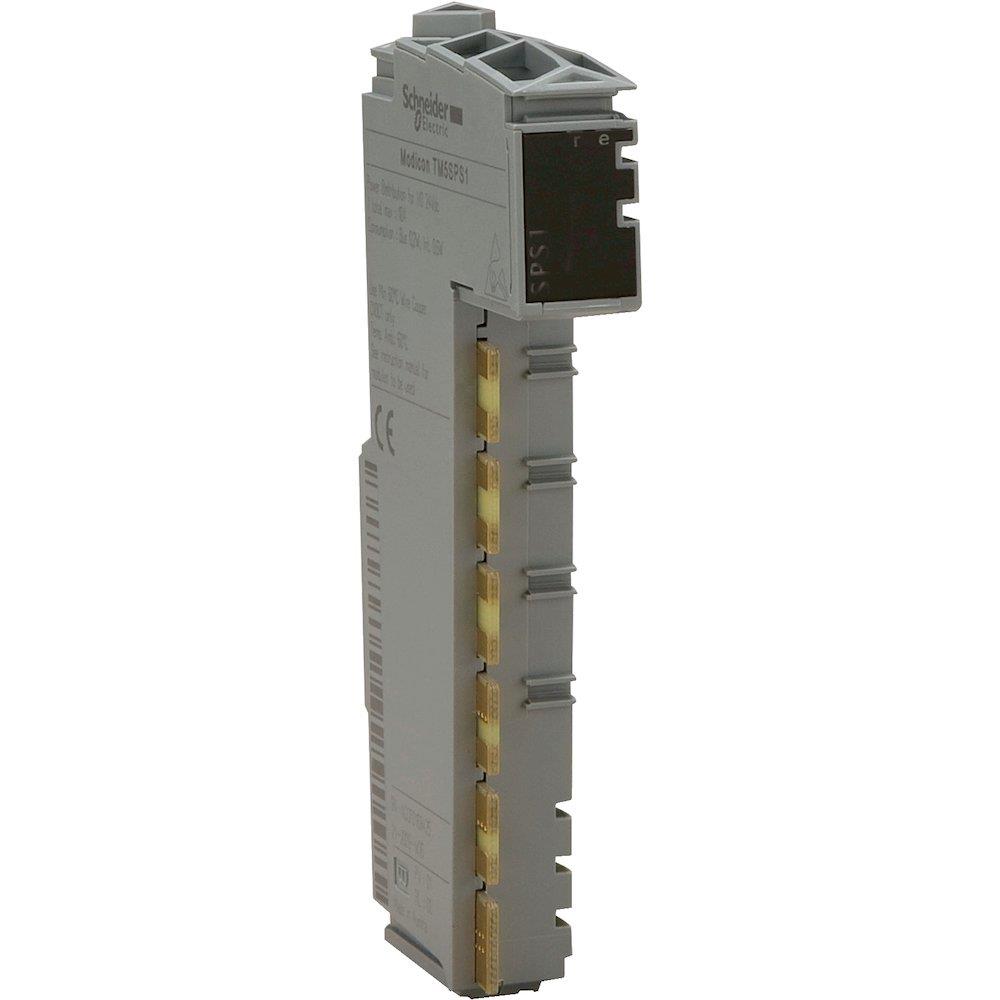

Schneider Modicon TM5 Expansion Module - 24V 3595864074900
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V. Supplied under manufacturer part number TM5SPS1, EAN 3595864074900, HS code 8504.40, country of origin Austria.
Technical Specifications
- Product type
- Distributed I/O
- Product group
- Industry and automation
- Supply voltage
- 24 V
- Carbon footprint (EPD)
- 0.3621 kg CO2e per pcs
- Country of origin
- Austria
- Customs tariff code (EU CN)
- 85044083
- HS code
- 8504.40
- Manufacturer part number
- TM5SPS1
- Range of product
- Modicon TM5
- Product or component type
- Power distribution module
- Product compatibility
- Logic controller; Motion controller
- Range compatibility
- Modicon M258; Modicon LMC058
- [Us] rated supply voltage
- 24 V for DC
- Power supply output current
- 10 A for I/O power segment
- Input current
- 10000 mA for I/O power segment
- Maximum power dissipation in W
- 0.8 W
- Typical current consumption
- 25 mA at 24 V DC
- Short-circuit protection
- 10 A external fuse
- Housing colour
- Grey
- Electrical connection
- Screw/spring terminal block
- Height
- 99 mm
- Width
- 12.5 mm
- Depth
- 75 mm
- IP degree of protection
- IP20
- Marking
- CE
- Product certifications
- GOST-R; C-Tick; CULus; CSA
- Standards
- CSA C22.2 No 142; CSA C22.2 No 213; UL 508; IEC 61131-2
- Ambient air temperature for operation
- -10…55 °C without derating (horizontal installation); 55…60 °C with derating factor (horizontal installation); -10…50 °C (vertical installation)
- Ambient air temperature for storage
- -25…70 °C
- Relative humidity
- 5…95 % without condensation
- Operating altitude
- 0...2000 m
- Pollution degree
- 2
- Vibration resistance
- 1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail
- Shock resistance
- 15 gn for 11 ms
- Warranty (in months)
- 18
- EAN
- 3595864074900
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3595864074900
- MPN TM5SPS1
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60N Circuit breaker - MULTI9 C60, 63A, 3P, C
M9F11363
Schneider Electric
Schneider Spacial S3D Door - 800 x 800mm
NSYDS3D88T
Schneider Electric

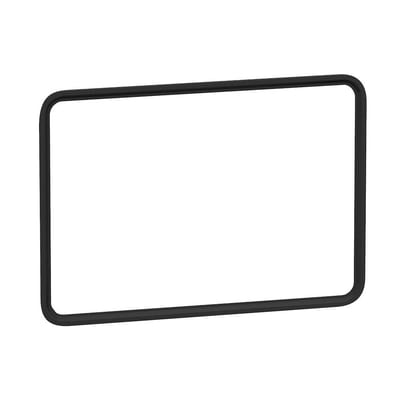

Schneider Harmony P6 Installation Packing - HMIZCWG8W1
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 13A, 2P, D
A9F05213
Schneider Electric

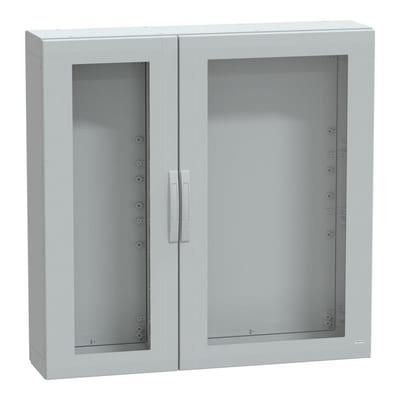

Schneider Thalassa PLA Floor Cabinet - 1250 x 1250mm, 320mm
NSYPLA12123TG
Schneider Electric

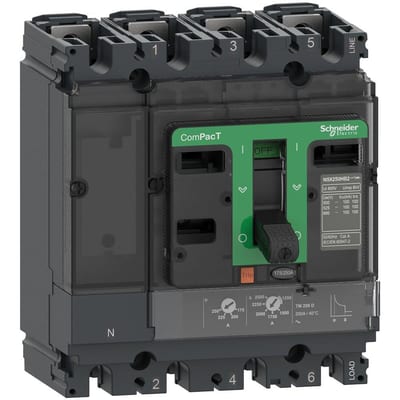

Schneider NSX250F Maximum breaker - 3606481997579
C25F4TM125
Schneider Electric

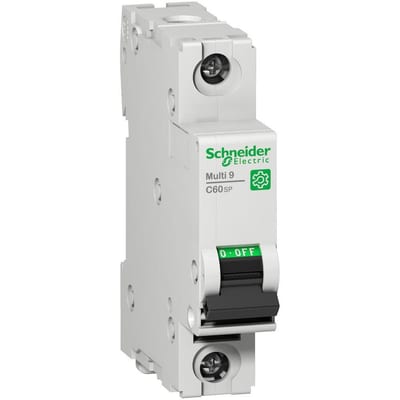

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 32A, 1P, C
M9F22132
Schneider Electric

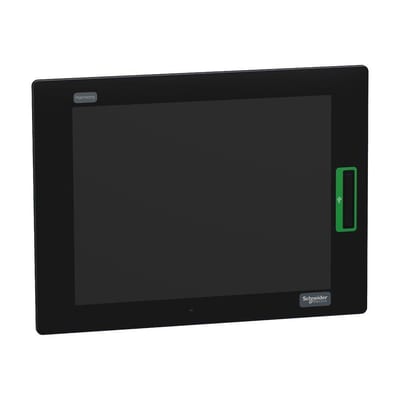

Schneider Harmony P6 Screen - HMIDM6700TM
