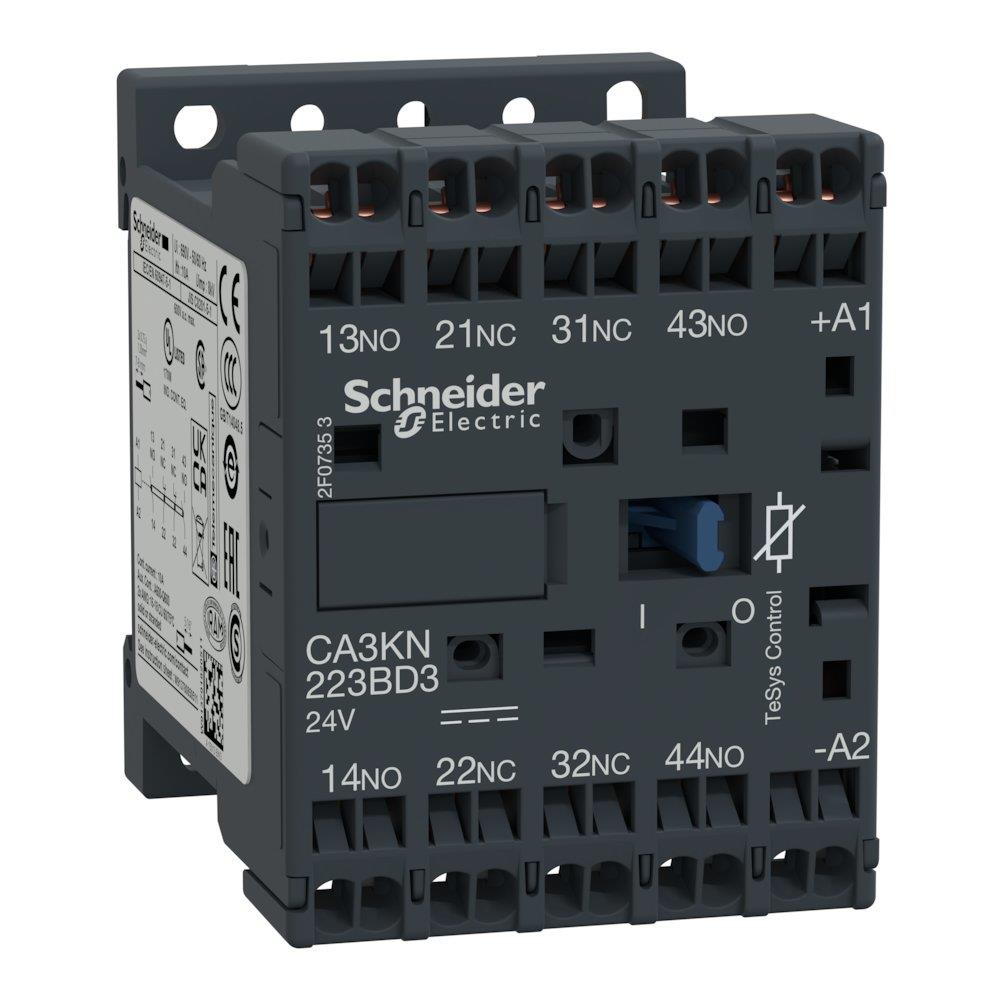

Schneider CA3K Control Relay - TeSys K, 2NO - 2NC, 24 DCV 3389110841084

Schneider CA3K Control Relay. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys K, contact type 2NO -2NC, voltage 24 V DC. Supplied under manufacturer part number CA3KN223BD3, EAN 3389110841084, HS code 8536.41, country of origin France.

Product type

Contactors and thermal relays motor control Product group: Components for panels and boxes Series: TeSys K Contact type: 2NO -2NC Voltage: 24 V DC Carbon footprint (EPD): 1.9571 kg CO2e per pcs Country of origin: France Customs tariff code (EU CN): 85364190 HS code: 8536.41 Manufacturer part number: CA3KN223BD3 Range: TeSys Product name: TeSys CAK Product or component type: Control relay Device short name: CA3K Contactor application: Control circuit Utilisation category: DC-13; AC-15 Pole contact composition: 2 NO + 2 NC [Ue] rated operational voltage: <= 690 V <= 400 Hz Control circuit type: DC standard [Uc] control circuit voltage: 24 V DC Coil technology: Built-in bidirectional peak limiting diode suppressor [Ith] conventional free air thermal current: 10 A (at 50 °C) Irms rated making capacity: 110 A conforming to IEC 60947 Associated fuse rating: 10 A gG conforming to IEC 60947; 10 A gG conforming to VDE 0660 [Ui] rated insulation voltage: 690 V conforming to IEC 60947; 750 V conforming to VDE 0110 group C; 690 V conforming to BS 5424; 600 V conforming to CSA C22.2 No 14 Mounting support: Rail; Plate Connections - terminals: Spring terminals 1 cable(s) 0.75…1.5 mm²solid; Spring terminals 1 cable(s) 0.75…1.5 mm²flexible without cable end Control circuit voltage limits: Operational: 0.8...1.15 Uc (at <50 °C); Drop-out: 0.1...0.75 Uc (at <50 °C) Operating time: 10 ms coil de-energisation and NO opening; 30...40 ms coil energisation and NO closing; 15 ms coil de-energisation and NC closing; 25...35 ms coil energisation and NC opening Mechanical durability: 20 Mcycles Maximum operating rate: 10000 cyc/h Immunity to microbreaks: 2 ms Inrush power in W: 3 W (at 20 °C) Hold-in power consumption in W: 3 W at 20 °C Heat dissipation: 3 W minimum switching voltage: 17 V minimum switching current: 5 mA Non overlap distance: 0.5 mm Insulation resistance: > 10 MOhm Height: 58 mm Width: 45 mm Depth: 57 mm Product weight: 0.225 kg Standards: EN/IEC 60947-5-1; GB/T 14048.5; UL 60947-5-1; CSA C22.2 No 60947-5-1; JIS C8201-5-1 Product certifications: CB Scheme; CCC; UL; CSA; EAC; CE; UKCA Protective treatment: TC conforming to IEC 60068 Ambient air temperature for operation: -25…50 °C Ambient air temperature for storage: -50…80 °C Operating altitude: 2000 m without derating Flame retardance: V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102 Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6; Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6; Shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27; Shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Warranty (in months): 18 EAN: 3389110841084

HS Code

8536.41

• EAN 3389110841084
• MPN CA3KN223BD3
