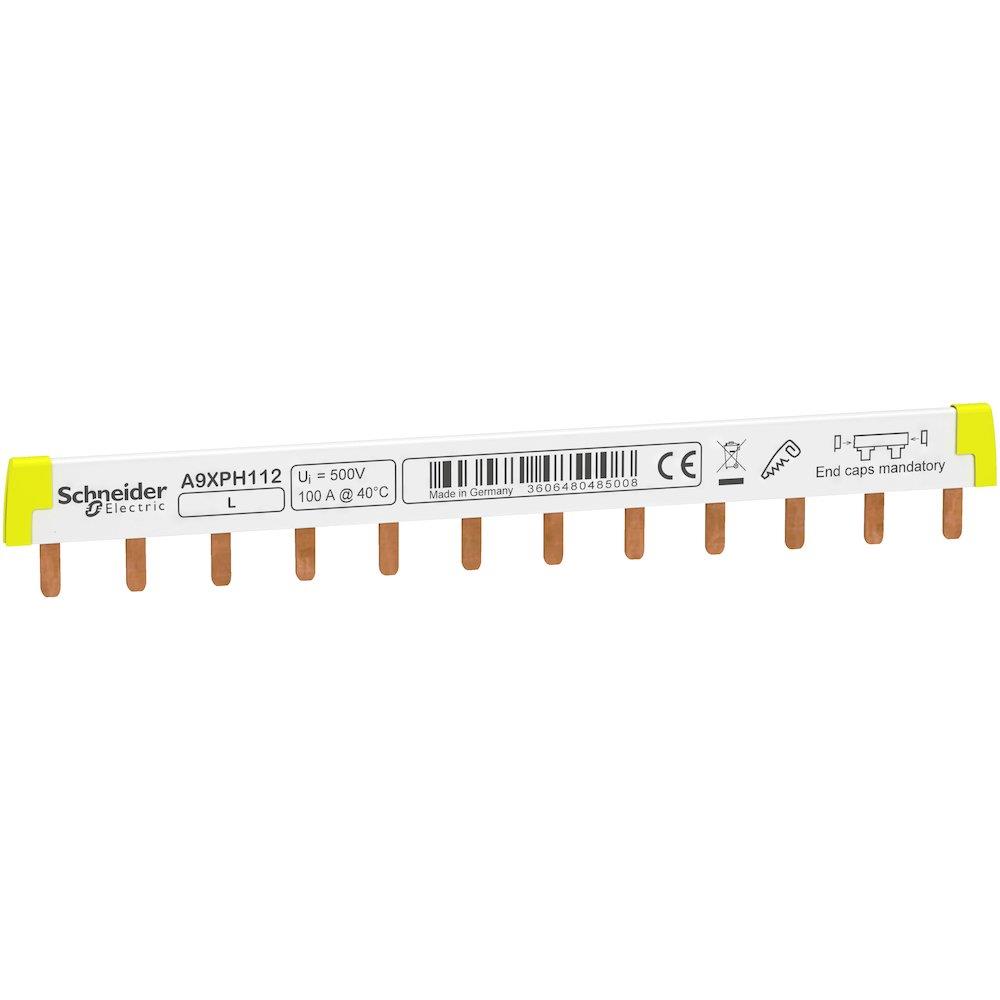

Schneider ACTI9 XPH Loop Rail 1P 12M - A9XPH112
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 XPH Loop Rail 1P 12M. Various machine installations (Electrical Engineering / Branching material). Principal data: type A9XPH112. Supplied under manufacturer part number A9XPH112, EAN 3606480485008, HS code 8536.90, country of origin Germany.
Technical Specifications
- Product type
- Various machine installations
- Product group
- Branching material
- Type
- A9XPH112
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.2935 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85369010
- HS code
- 8536.90
- Manufacturer part number
- A9XPH112
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 1L
- Length in 18 mm modules
- 12
- Standards
- EN/IEC 61439-1
- Number of ways
- 12 ways 1 L
- Distribution type
- L
- Poles configuration for 1 way
- 1 x 1P
- Connection pitch
- 18 mm
- Connector type
- Tooth
- Distance between way
- 18 mm
- Marking
- L
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 415 V AC
- [Ui] rated insulation voltage
- 500 V AC conforming to IEC 61439-2
- Mounting location
- Top or bottom on tunnel type terminals; Top or bottom on double terminal
- 9 mm pitches
- 24
- Width
- 220 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 iC60; Acti9 iK60; Acti9 iID; Acti9 iID K; Acti9 iSW; Acti9 iSW-NA; Multi9 C60
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to IEC 60947-7-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 160
- Warranty (in months)
- 18
- EAN
- 3606480485008
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480485008
- MPN A9XPH112
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60N Circuit breaker - MULTI9 C60, 6A, 1P, C
M9F11106
Schneider Electric
Schneider LX4D Coil - TeSys D
LX4D8BD
Schneider Electric
Schneider NSX100H Maximum breaker - 3606481998828
C10H42D040
Schneider Electric

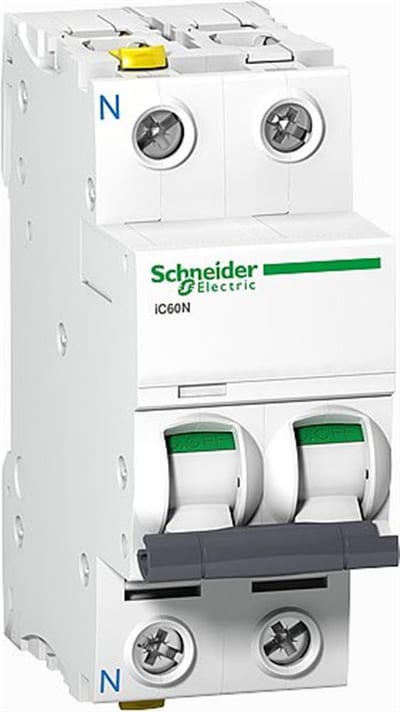

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 13A, 1P + N, C
A9F04613
Schneider Electric

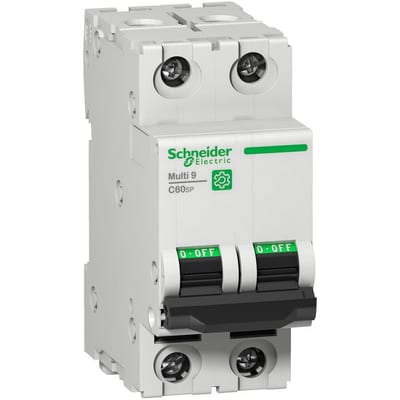

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 25A, 2P, D
M9F23225
Schneider Electric

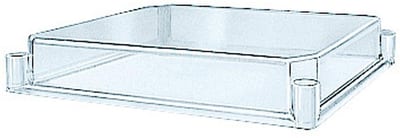

Schneider Thalassa PLS Lid - Thalassa PLS, 360 x 360mm, 45mm, Transparent, PC ( Polycarbonat )
NSYTPLS3636
Schneider Electric

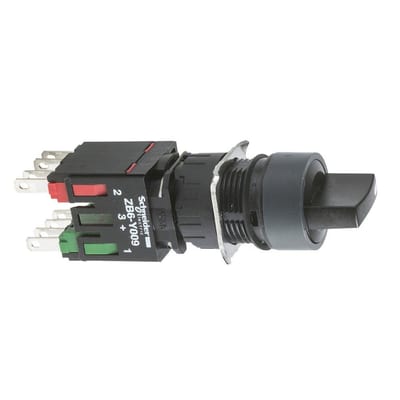

Schneider XB6 Rotary Switch - Harmony XB6, black, 2PCS, XB6AD225B
Schneider Electric

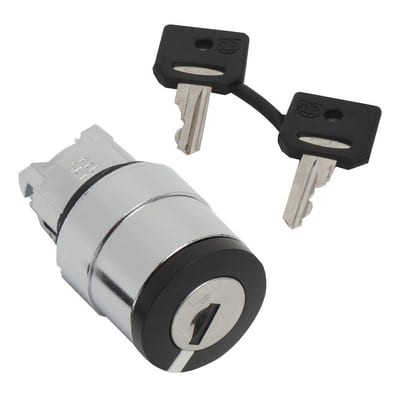

Schneider ZB4 Key Handle - Harmony XB4, 2PCS 3389110121902
