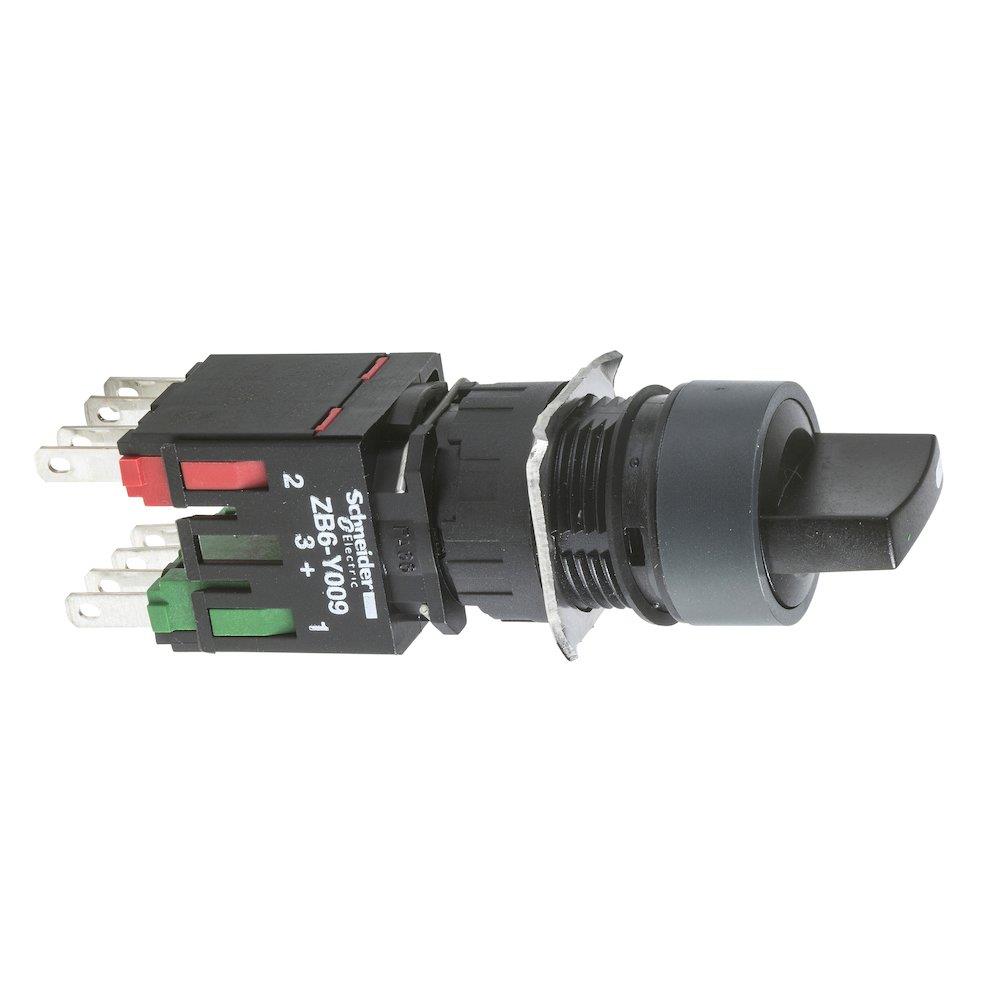

Schneider XB6 Rotary Switch - Harmony XB6, black, 2PCS, XB6AD225B

Schneider XB6 Rotary Switch. Rotary switches and key switches (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB6, color Black, number of posts 2 pcs, type XB6AD225B. Supplied under manufacturer part number XB6AD225B, EAN 3389110764581, HS code 8536.50, country of origin France.

Product type

Rotary switches and key switches

Product group

Push buttons and signal units

Series

Harmony XB6

Color

Black

Number of posts

2 pcs

Type

XB6AD225B

Carbon footprint (EPD)

0.0684 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

XB6AD225B

Range of product

Harmony XB6

Product or component type

Complete selector switch

Device short name

XB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Operating position

Any position

Shape of signaling unit head

Square

Type of operator

stay put

Operator profile

Black standard handle

Operator position information

2 positions 60°

Contacts type and composition

1 NO

Contact operation

Slow-break

Height

18 mm

Width

18 mm

Depth

68 mm

Terminals description ISO n°1

(13-14)NO; (21-22)NC

Product weight

0.024 kg

Positive opening

With conforming to IEC 60947-5-1 appendix K

Mechanical durability

500000 cycles

Connections - terminals

Faston connectors, connection size: 2.8 x 0.5 mm

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

Standards

IEC 60947-5-5; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; JIS C 852; UL 508; JIS C8201-1

Product certifications

CCC; CSA; GOST; UL

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

75

Warranty (in months)

18

EAN

3389110764581

HS Code

8536.50

• EAN 3389110764581
• MPN XB6AD225B
