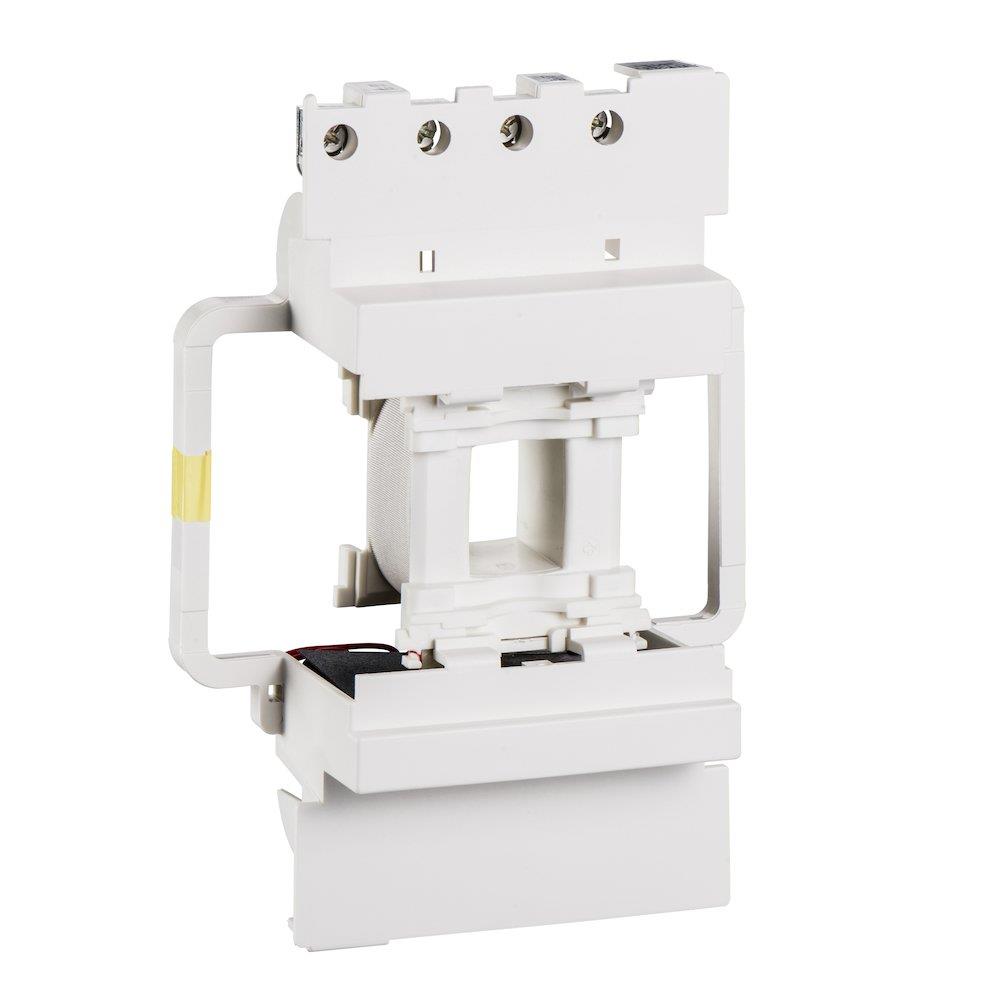

Schneider LX4D Coil - TeSys D

Schneider LX4D Coil. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D. Supplied under manufacturer part number LX4D8BD, EAN 3389110805116, HS code 8504.50, country of origin Czechia.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

1.4322 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85045000

HS code

8504.50

Manufacturer part number

LX4D8BD

Range

TeSys

Product or component type

Contactor coil

Device short name

LX4D8

Control circuit type

DC standard

[Uc] control circuit voltage

24 V DC

Average resistance

147 Ohm at 20 °C

Inductance of closed circuit

3.03 H

Product compatibility

LC1D150; LC1D115

Mechanical durability

8 Mcycles

Maximum operating rate

1200 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Operational: 0.75...1.2 Uc (at <55 °C); Drop-out: 0.15...0.4 Uc (at <55 °C)

Time constant

25 ms

Inrush power in W

270…365 W (at 20 °C)

Hold-in power consumption in W

2.4…5.1 W at 20 °C

Ambient air temperature for operation

-5…60 °C

Product weight

0.3 kg

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

EAN

3389110805116

HS Code

8504.50

• EAN 3389110805116
• MPN LX4D8BD
