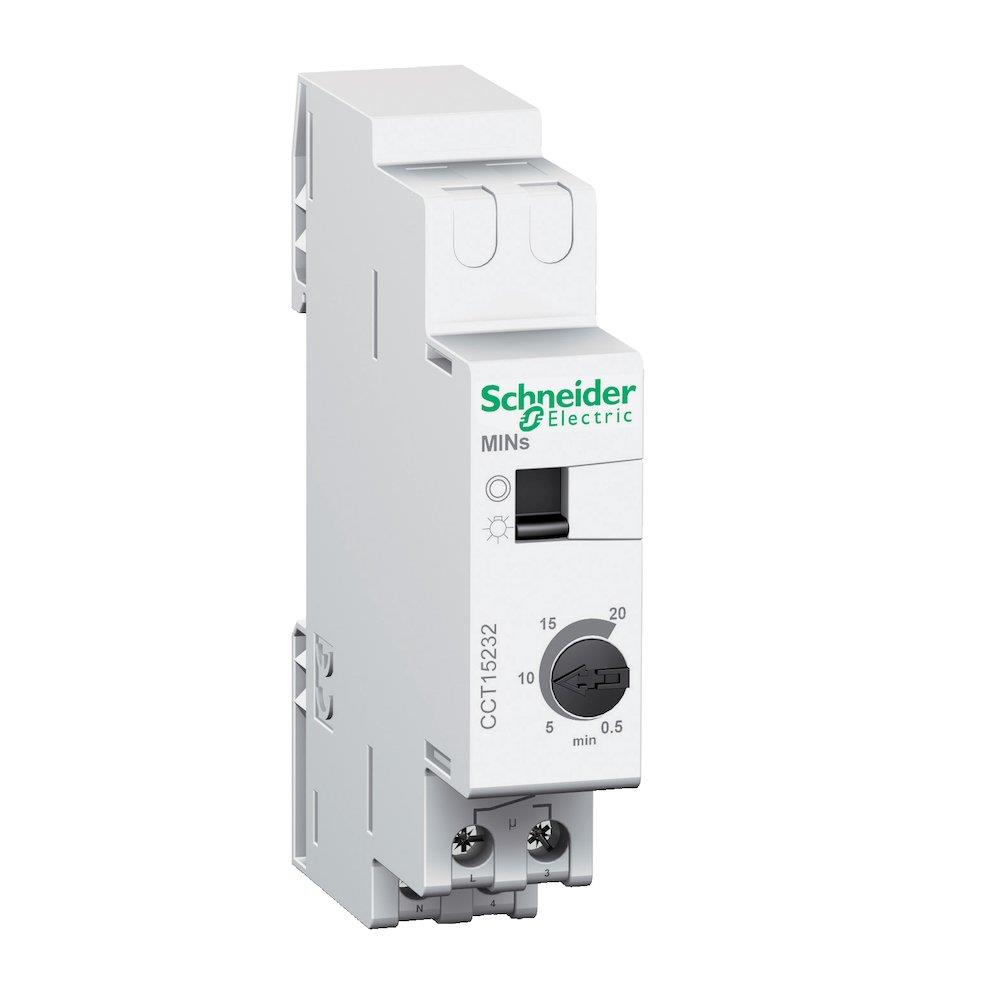

Schneider ACTI9 MINs Staircase timer - 230V, 18

Schneider Acti9 MINs Staircase timer. Time and function relays (Electrical Engineering / Components for panels and boxes). Principal data: voltage 230 V, module size 18. Supplied under manufacturer part number CCT15232, EAN 3303431062621, HS code 9107.00, country of origin Germany.

Product type

Time and function relays

Product group

Components for panels and boxes

Voltage

230 V

Module size

18

REACH SVHC substance above 0.1%

Lead, Diarylmethane, Diboron-trioxide, Lead-monoxide, Octrizole

Carbon footprint (EPD)

0.8454 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

91070000

HS code

9107.00

Manufacturer part number

CCT15232

range of product

Acti9

Product name

Acti9 MIN

Device short name

MINs

Product or component type

Silent electronic timer

Product compatibility

Mechanical compatibility with electrical comb busbars

Colour tint

White (RAL 9003)

Device application

Building

Load type

230 V AC halogen lamp 2600 W; 230 V AC incandescent lamp 2600 W; Dual mounted fluorescent tubeconventional ballast 2600 VA; Fluorescent tubeelectronic ballast 1100 W; Non-corrected fluorescent tubeconventional ballast 2600 VA; Serial-corrected fluorescent tubeconventional ballast 2600 VA; Parallel-corrected fluorescent tubeconventional ballast 1300 W; LED lamp >= 2 W 600 W; LED lamp < 2 W 55 W

Maximum switching current

16 A - 230 V AC pf = 1

[Ue] rated operational voltage

230 V AC +10 % -15 % at 50/60 Hz

Time delay

Adjustable from 0.5 to 20 minutes

Mounting support

DIN rail

9 mm pitches

2

Connections - terminals

Screw terminals - <= 6 mm²

Electrical insulation class

Class II

Width

18 mm

Height

89 mm

Depth

66 mm

Product weight

75 g

Ambient air temperature for operation

-25…50 °C

IP degree of protection

IP20 B

Number of Units in Package 1

1

Number of Units in Package 2

130

Warranty (in months)

18

EAN

3303431062621

HS Code

9107.00

• EAN 3303431062621
• MPN CCT15232
