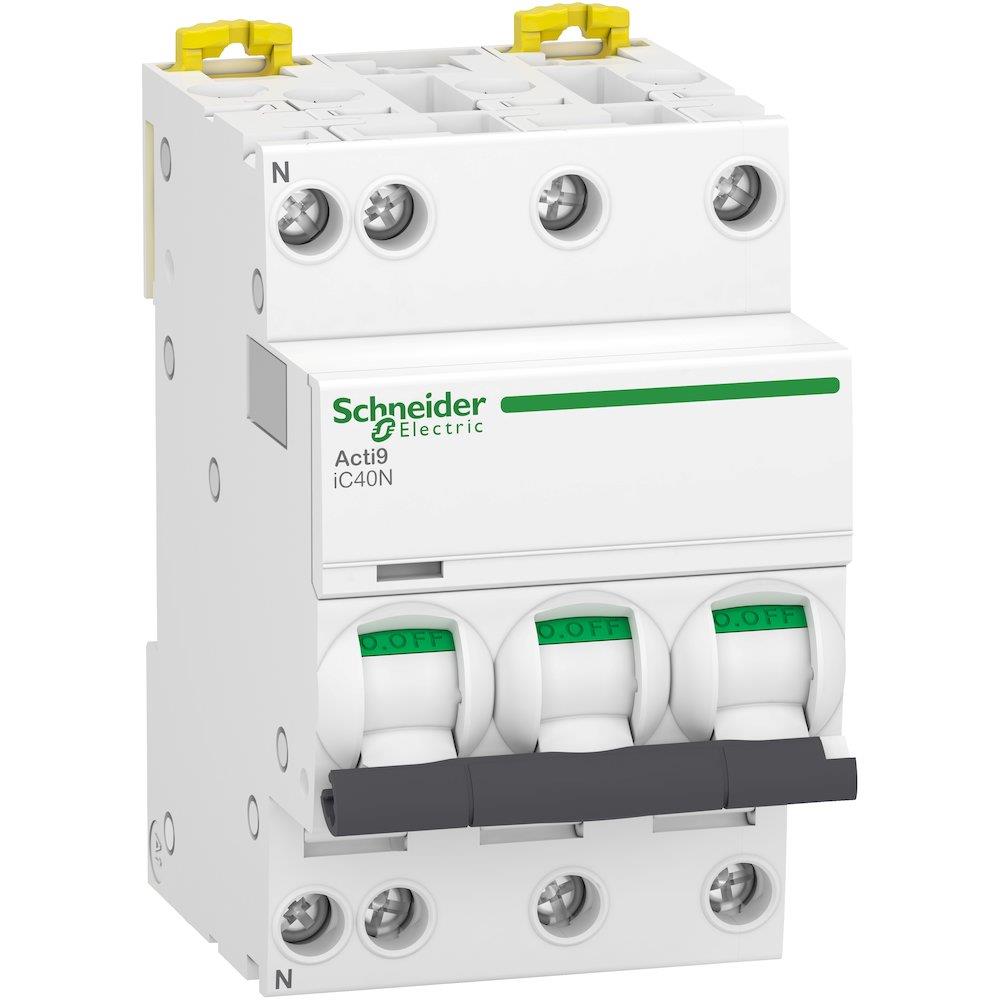

Schneider ACTI9 IC40N Circuit breaker - ACTI9 IC40, 32A, 3P + N, D

Schneider Acti9 iC40N Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iC40, current rating 32 A, number of poles 3P + N, tripping characteristic D. Supplied under manufacturer part number A9P64732, EAN 3606481326256, HS code 8536.20, country of origin Hungary.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Acti9 iC40

Current rating

32 A

Number of poles

3P + N

Tripping characteristic

D

Breaking capacity

6/10 kA

Width

54 mm

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

2.2300 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Hungary

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

A9P64732

Range

Acti9

Product name

Acti9 iC40

Product or component type

Miniature circuit-breaker

Device short name

iC40N

Device application

Distribution

Poles description

3P + N

Number of protected poles

3

Neutral position

Left

[In] rated current

32 A

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

D

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Quality labels

AENOR; OVE

Network frequency

50/60 Hz

[Ue] rated operational voltage

400 V AC 50/60 Hz

Magnetic tripping limit

10...14 x In conforming to EN/IEC 60898-1; 12 x In +/- 20 % conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 5 kA 50 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Ui] rated insulation voltage

440 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication; Trip indicator

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

6

Height

85 mm

Depth

74 mm

Product weight

345 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Locking options description

Padlocking device

Connections - terminals

Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Separate block

Standards

EN/IEC 60898-1; EN/IEC 60947-2

Product certifications

CE; BV; RINA; DNV

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

EAN

3606481326256

HS Code

8536.20

• EAN 3606481326256
• MPN A9P64732
