Schneider RXG Plug-in Relay with test button and LED - Harmony RXG, 110 DCV, 10A, 1CO

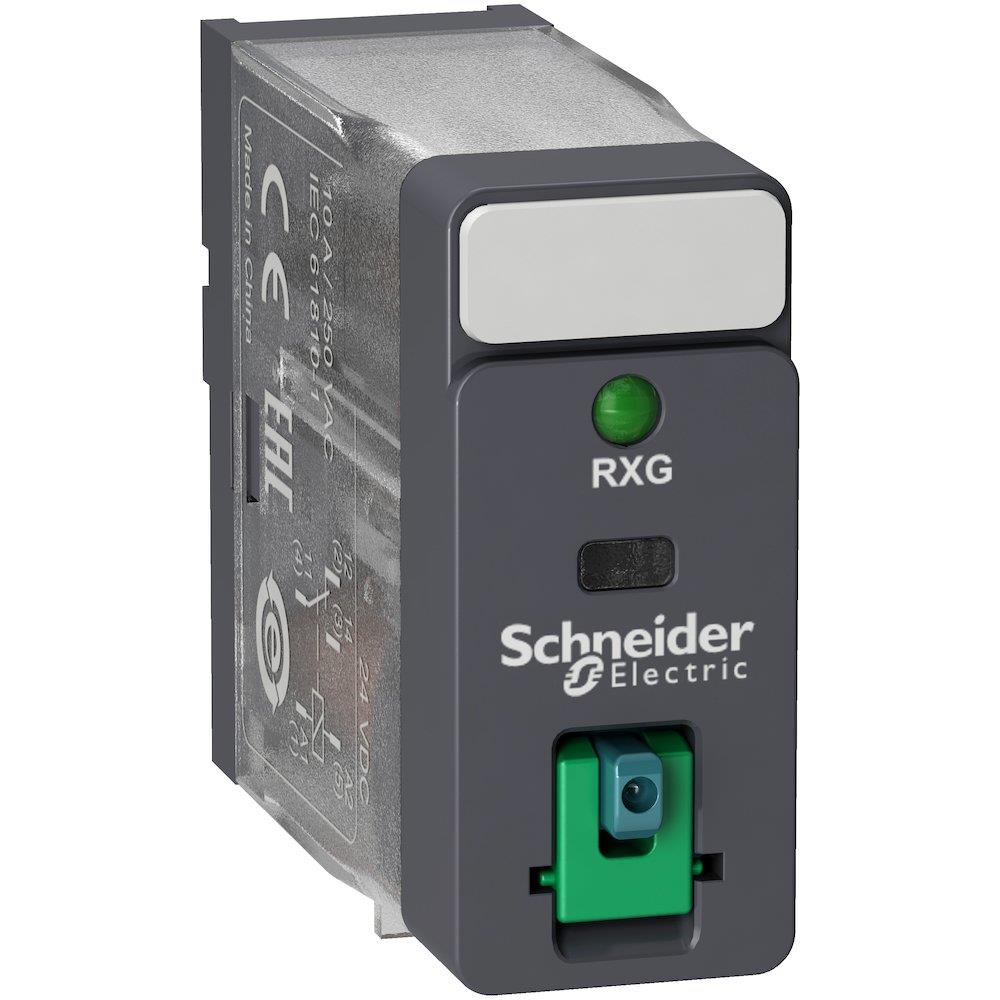

Schneider RXG Plug-in Relay with test button and LED. Relay sockets and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series Harmony RXG, voltage 110 V DC, current rating 10 A, contact type 1CO. Supplied under manufacturer part number RXG12FD, EAN 3606480688768, HS code 8536.49, country of origin China.

Product type

Relay sockets and accessories Product group: Components for panels and boxes Series: Harmony RXG Voltage: 110 V DC Current rating: 10 A Contact type: 1CO Used for: RGZ relay sockets REACH SVHC substance above 0.1%: None Sales unit: Pack Carbon footprint (EPD): 2.6380 kg CO2e per pcs Country of origin: China Customs tariff code (EU CN): 85364900 HS code: 8536.49 Manufacturer part number: RXG12FD Range of product: Harmony Electromechanical Relays Series name: RXG series Product or component type: Plug-in relay Relay type: Interface relay Contacts type and composition: 1 C/O [Uc] control circuit voltage: 110 V DC [Ithe] conventional enclosed thermal current: 10 A at -40…55 °C Local signalling: Flag status LED: With Electrical durability: 100000 cycles for NO resistive load at 55 °C; 100000 cycles for NC resistive load at 55 °C [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL Removable legend: With Maximum switching voltage: 250 V AC; 30 V DC Drop-out voltage threshold: >= 0.1 Uc DC [Ie] rated operational current: 10 A at 30 V (DC) conforming to UL; 10 A at 30 V (DC) conforming to IEC; 10 A at 250 V (AC) conforming to UL; 10 A at 250 V (AC) conforming to IEC Load current: 10 A at 250 V AC minimum switching capacity: 500 mW at 100 mA, 5 V DC Maximum switching capacity: 2500 VA Control type: Lockable test button Average resistance: 22800 Ohm at 23 °C +/- 15 % Contact resistance: 100 mOhm Insulation resistance: 1000 MOhm at 500 V DC Electrical insulation class: Class F Mechanical durability: 10000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % Operating time: 20 ms Reset time: 20 ms Dielectric strength: 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation; 1300 V AC terminals and case with basic insulation [Uimp] rated impulse withstand voltage: 1200 V AC between contacts with micro disconnection; 6000 V between coil and contact with reinforced insulation; 1500 V between terminals and case with basic insulation Overvoltage category: III Protection category: RT I Pollution degree: 2 Test levels: Level A group mounting Device presentation: Complete product Contacts material: Silver alloy (AgSnO2In2O3) Shape of pin: Flat (faston type) Product weight: 0.02 kg Standards: CSA C22.2 No 14; IEC 61810-1; UL 508 Product certifications: CSA; CE; EAC; UL; DNV Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: -40…70 °C IP degree of protection: IP40 Relative humidity: 10…85 % Vibration resistance: 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation; 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 200 Warranty (in months): 18 EAN: 3606480688768

HS Code

8536.49

• EAN 3606480688768
• MPN RXG12FD
