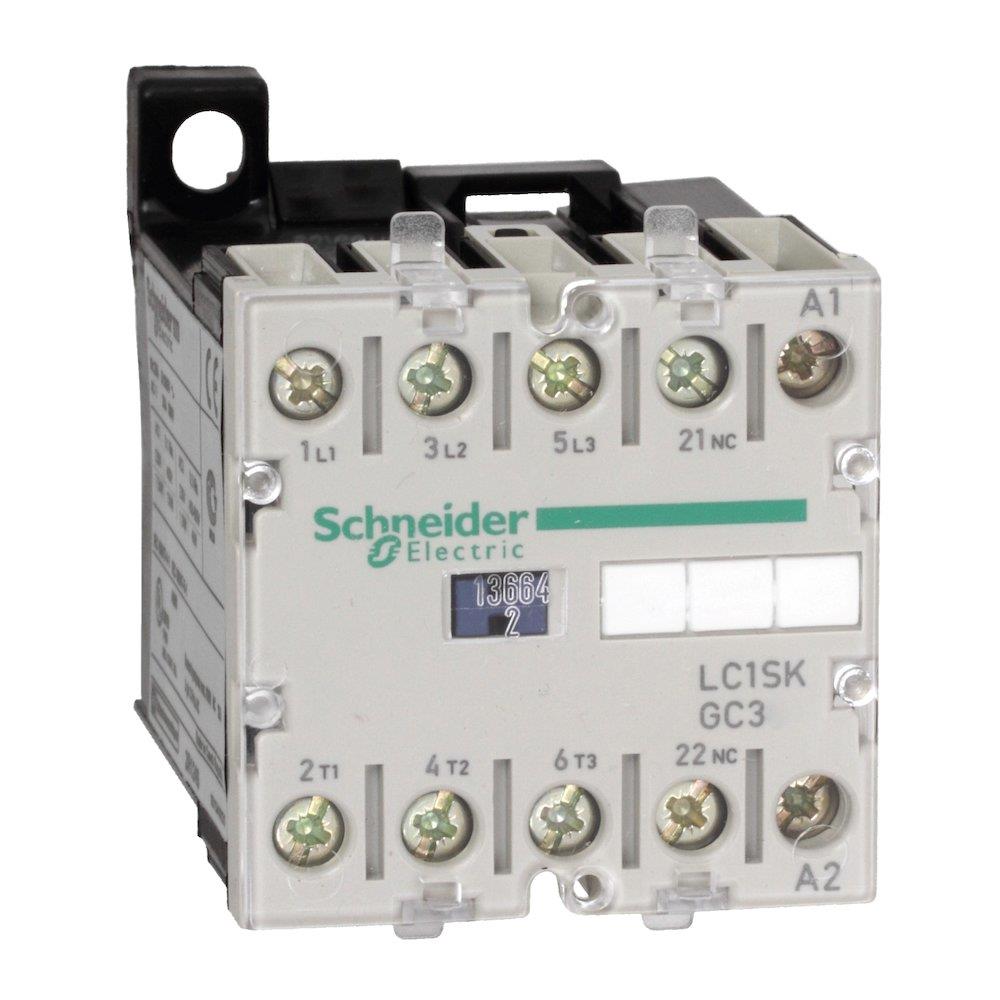

Schneider LC1SK Contactor - TeSys SK, 3P, 230V

Schneider LC1SK Contactor. Contactors and thermal relays motor control (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys SK, number of poles 3P, voltage 230 V. Supplied under manufacturer part number LC1SKGC310P7, EAN 3389110563689, HS code 8536.49, country of origin Czechia.

Product type

Contactors and thermal relays motor control

Product group

Components for panels and boxes

Series

TeSys SK

Number of poles

3P

Voltage

230 V

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

0.9493 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85364900

HS code

8536.49

Manufacturer part number

LC1SKGC310P7

Range

TeSys

Product name

TeSys SK

Product or component type

Mini contactor

Device short name

LC1SKGC

Contactor application

Motor control; Resistive load

Utilisation category

AC-1; AC-3

power pole contact composition

3P

Pole contact composition

3 NO

Auxiliary contact composition

1 NO

[Ie] rated operational current

20 A (at <50 °C) AC AC-1; 9 A at <= 400 V AC AC-3

[Ue] rated operational voltage

Power circuit: 690 V AC 50/60 Hz; Signalling circuit: 690 V AC <= 400 Hz

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

230 V AC 50/60 Hz

Motor power kW

4 kW at 380...415 V AC 50/60 Hz; 4 kW at 660...690 V AC 50/60 Hz; 1.1 kW at 220...230 V AC 50/60 Hz

[Ith] conventional free air thermal current

20 A (at 55 °C) for power circuit; 10 A (at 55 °C) for signalling circuit

Irms rated making capacity

85 A AC conforming to NF C 63-110; 85 A AC conforming to IEC 60947

Rated breaking capacity

68 A at <= 400 V conforming to NF C 63-110; 68 A at <= 400 V conforming to IEC 60947

[Icw] rated short-time withstand current

60 A 55 °C for power circuit

Associated fuse rating

20 A gI at <= 440 V for power circuit; 10 A gI for signalling circuit conforming to IEC 60947; 10 A gI for signalling circuit conforming to VDE 0660

Average impedance

4 mOhm - Ith 20 A 50 Hz for power circuit

[Ui] rated insulation voltage

Power circuit: 690 V conforming to BS 5424; Power circuit: 690 V conforming to IEC 60947; Power circuit: 690 V conforming to UL 508; Power circuit: 690 V conforming to VDE 0110 group C; Power circuit: 690 V conforming to CSA C22.2 No 14

Mounting support

Panel; Rail

Standards

EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

CB Scheme; CE; UKCA; EAC; cULus

Connections - terminals

Connector 1 cable(s) 1.5…6 mm²solid; Connector 2 cable(s) 1.5…4 mm²solid; Connector 1 cable(s) 0.5…6 mm²flexible without cable end; Connector 2 cable(s) 0.35…2.5 mm²flexible without cable end; Connector 1 cable(s) 0.35…6 mm²flexible with cable end; Connector 2 cable(s) 0.35…1.5 mm²flexible with cable end

Tightening torque

Power circuit: 0.8 N.m - on connector - with screwdriver pozidriv No 1

Operating time

6...8 ms coil de-energisation and NO opening; 7...14 ms coil energisation and NO closing

Mechanical durability

10 Mcycles

Maximum operating rate

1200 cyc/h

Control circuit voltage limits

Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C); Drop-out: 0.2...0.75 Uc at 50/60 Hz (at <55 °C)

Inrush power in VA

23 VA 50/60 Hz (at 20 °C)

Hold-in power consumption in VA

4.9 VA 50/60 Hz (at 20 °C)

Heat dissipation

1.5 W at 50/60 Hz

Signalling circuit frequency

<= 400 Hz

IP degree of protection

IP2X conforming to VDE 0106

Protective treatment

TC conforming to IEC 60068; TC conforming to DIN 50015

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-50…70 °C

Operating altitude

2000 m without derating

Height

58 mm

Width

45 mm

Depth

56 mm

Product weight

0.175 kg

Warranty (in months)

18

EAN

3389110563689

HS Code

8536.49
