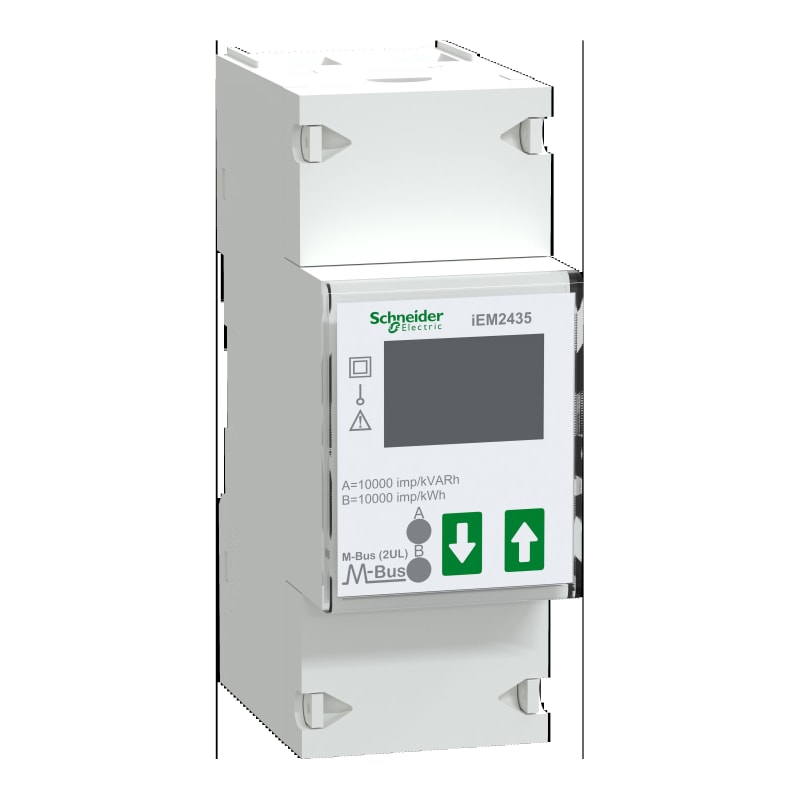

Schneider Electric modular single phase power meter IEM2435 - 230V - 100A with communication M-Bus A9MEM2435

Schneider Electric A9MEM2435 Modular kWh-meter with M-bus for 1P+N or 2P - 230V - 100A.

Manufacturer part number (MPN)

A9MEM2435

EAN / GTIN

3606482187160

Sales unit

pcs

Package quantity

5 pcs

Rated current

100 A

Range

Acti9

family

Acti9 iEM2000

Product or component type

Energy meter

Device short name

iEM2435

Poles description

1P + N

Type of measurement

Active and reactive energy; Active and reactive power; Apparent power; Power factor; Current; Voltage; Frequency

Metering type

Active and reactive energy

Device application

Sub billing; Multi-tariff

Accuracy class

Class 1 active energy conforming to IEC 62053-21; Class 2 reactive energy conforming to IEC 62053-23; Class B active energy conforming to EN 50470-1; Class B active energy conforming to EN 50470-3

Analogue input type

Direct input

Rated voltage

230 V

Network frequency

50 Hz; 60 Hz

Frequency measurement range

45…66 Hz

Technology type

Electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

0.25…100 A

Display digits

7

Maximum value measured

99999.99 kWh; 999999.9 kWh

Information displayed

Tariff (2)

Communication port protocol

M-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds - 2 wires, insulation 3750 V

Communication port support

Screw terminals: M-Bus

Local signalling

Red LED: metering and activity 10000, 2000, 1000, 100, 10, 1, 0.1 or 0.01 imp/kWh

Impulse duration

5...32 ms

[Us] rated supply voltage

195...253 V AC 50 Hz

Maximum power consumption in VA

10 VA at 240 V AC

Maximum power consumption in W

1 W per phase

[Uimp] rated impulse withstand voltage

6 kV 1.2/50 µs

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Power circuit: screw clamp terminals (bottom) 25 mm² cable(s) ; Communication: screw clamp terminals (top) 2.5 mm² cable(s)

Standards

IEC 62052-11; IEC 62053-21; IEC 62053-23; IEC 62052-31

Product certifications

MID conforming to EN 50470-1; MID conforming to EN 50470-3; CE

IP degree of protection

IP51 front panel: conforming to IEC 60529; IP20 casing:

Pollution degree

2

Ambient air temperature for operation

-40…70 °C

Ambient air temperature for storage

-40…80 °C

Operating altitude

<= 2000 m

Relative humidity

0…75 % operation; 0…95 % storage

Colour

White

9 mm pitches

4

Width

35.8 mm

Height

96.7 mm

Depth

63 mm

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

30

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Max. current (Imax)

100 A

Width in number of modular spacings

2

Number of positions total (counter)

7

Type of meter

Electronic

Degree of protection (IP)

IP20

Type of interface

M-bus (wired)

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

External

Escapement mechanism

No

Calibrated

Yes

Approval

Measuring Instruments Directive

Pulse output

Electrical

Pulse type

S0

Pole type

Single phase

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal current (In)

100 A

Country of origin

China

HS Code

9028.30
