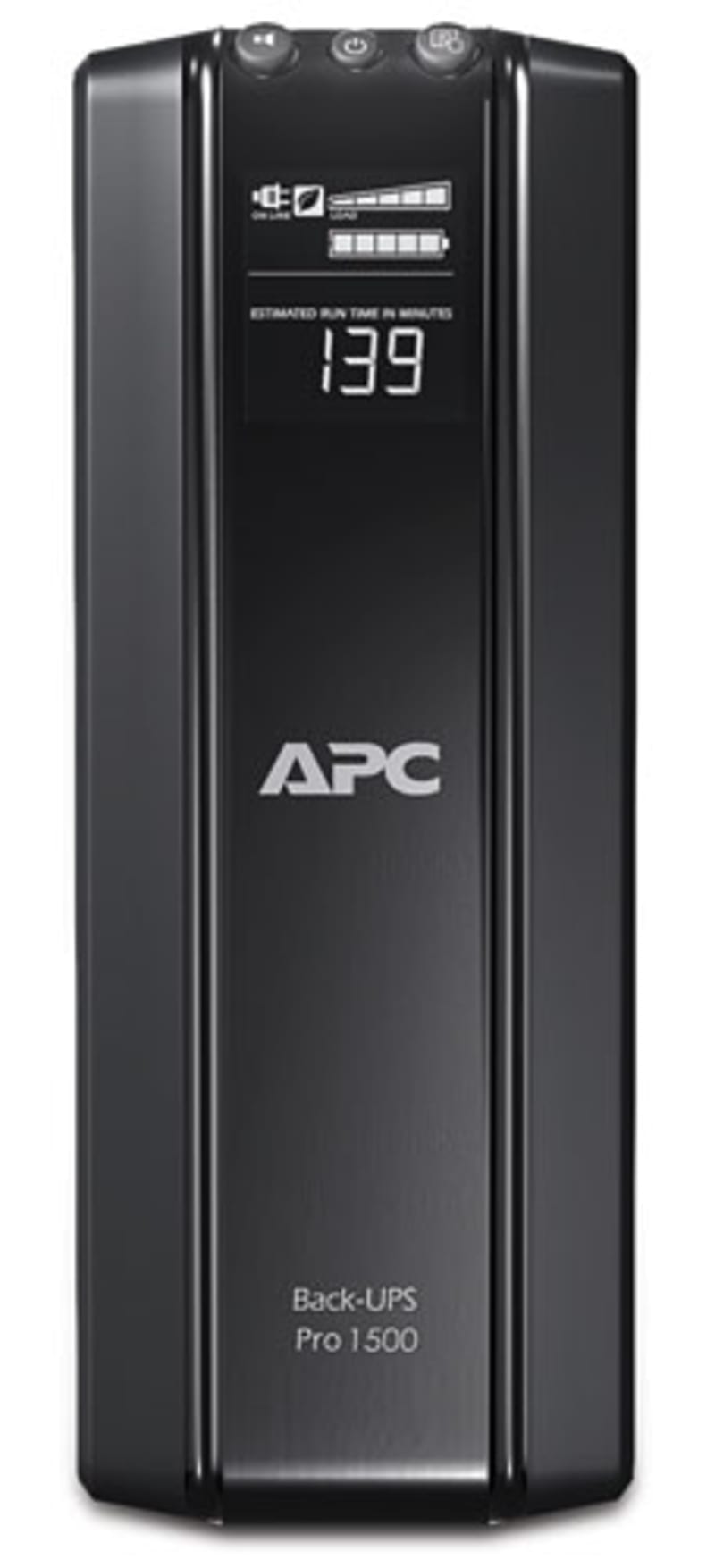

Schneider Electric APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 10X IEC C13 outlets, AVR, LCD, User Replaceable Battery BR1500GI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BR1500GI Power Saving Back-UPS RS 1500 230V.
Technical Specifications
- Manufacturer part number (MPN)
- BR1500GI
- EAN / GTIN
- 0731304268741
- Sales unit
- pcs
- Voltage
- 230 V
- Main input voltage
- 230 V AC 1 phase
- Input connection
- IEC 60320 C14
- Switching current capacity
- 10 A
- Efficiency at full load
- 156...300 V adjustable; 176...294 V
- Input frequency
- 50/60 Hz +/- 3 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 865 W
- Rated power in VA
- 1500 VA
- Output connection
- 5 IEC 60320 C13; 5 IEC 60320 C13 surge; 2 IEC Jumpers
- Type of USB power supply
- None
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 1500 VA
- Maximum configurable power in W
- 865 W
- Transfer time
- 10 ms typical : 12 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Stepped approximation to a sinewave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC124
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 9.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- USB port
- Surge energy rating
- 441 J
- Noise filtering
- Full time multi-pole noise filtering : 10% of IEEE surge light-through : zero clamping response time: instantaneous
- Number of cables
- 1
- Color
- Black
- Height
- 301 mm
- Width
- 112 mm
- Depth
- 380 mm
- Product weight
- 12.7 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS Pro
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- A-Tick; C-Tick; CE; GOST; Telepermit; TÜV
- Equipment protection policy
- Lifetime : 200000 AUD; Lifetime : 150000 euros; Lifetime : 75000 GBP
- Marking
- GS Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- Relative humidity
- 0…95 %
- Storage relative humidity
- 0…95 %
- Acoustic level
- 45 dBA
- Operating altitude
- 0...30000 ft
- Battery voltage
- 24 V
- Battery graph comment
- This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 8 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 23 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- SCC14
- 10731304268748
- Country of origin
- VN
- Warranty (in months)
- 24
