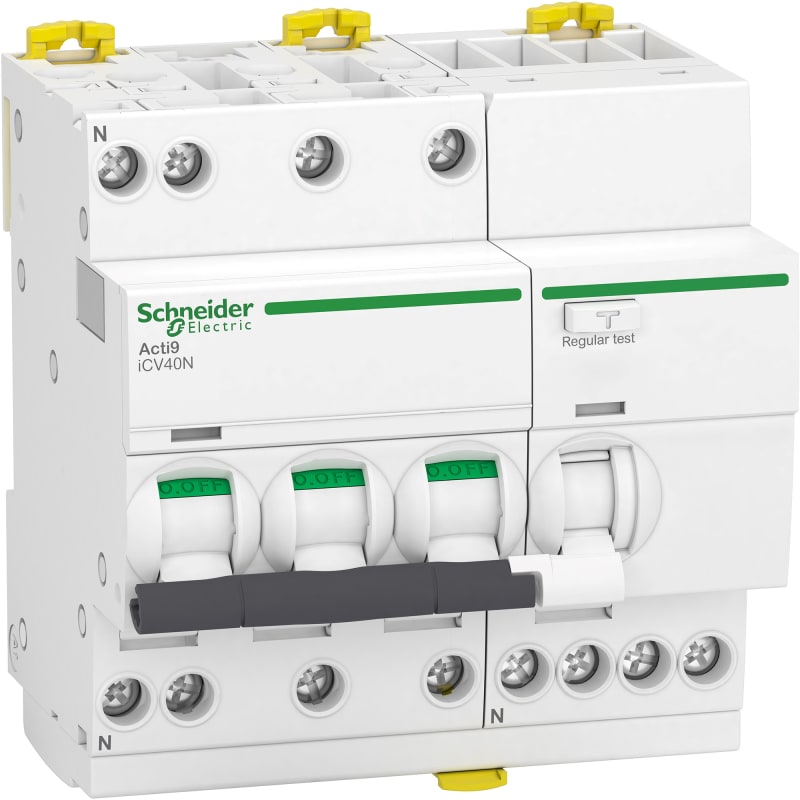

A9 ICV40N 3PN C 13A 30MA A RCBO
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9DC3713 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Acti 9 iCV40N RCBO 3PN C 13A 30mA.
Technical Specifications
- Manufacturer part number (MPN)
- A9DC3713
- EAN / GTIN
- 3606481328632
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Rated current
- 13 A
- Power loss
- 11 W
- Number of poles (total)
- 4
- Number of protected poles
- 3
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 440 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Rated short-circuit breaking capacity according to EN 60898
- 6 kA
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Overvoltage category
- 3
- Pollution degree
- 3
- Ambient temperature during operating
- -25–60 °C
- Width in number of modular spacings
- 5
- Built-in depth
- 44 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–16 mm²
- Connectable conductor cross section multi-wired
- 1–10 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481328632
- SAP 1200232039
- Code 82180689
Product Documentation
More from Schneider Electric
Schneider Electric

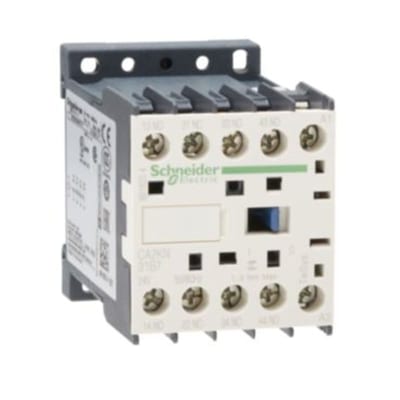

Schneider Electric TeSys K control relay - 3 NO + 1 NC - <= 690 V - 24 V AC coil CA2KN31B7
Schneider Electric

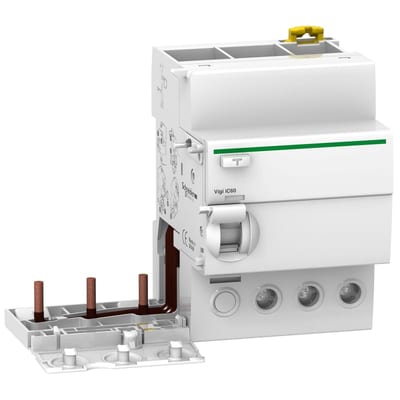

Schneider Electric Vigi IC60 - earth leakage add-on block - 3P - 63A - 300MA - A type A9V54363
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 12.5A 3P - with compression lug GV4L12N6
Schneider Electric

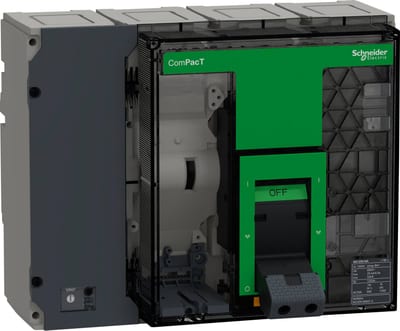

Schneider Electric Switch disconnector basic frame, ComPacT NS1250 type NA, 4P, fixed, manually operated, 1250A C125S4FM
