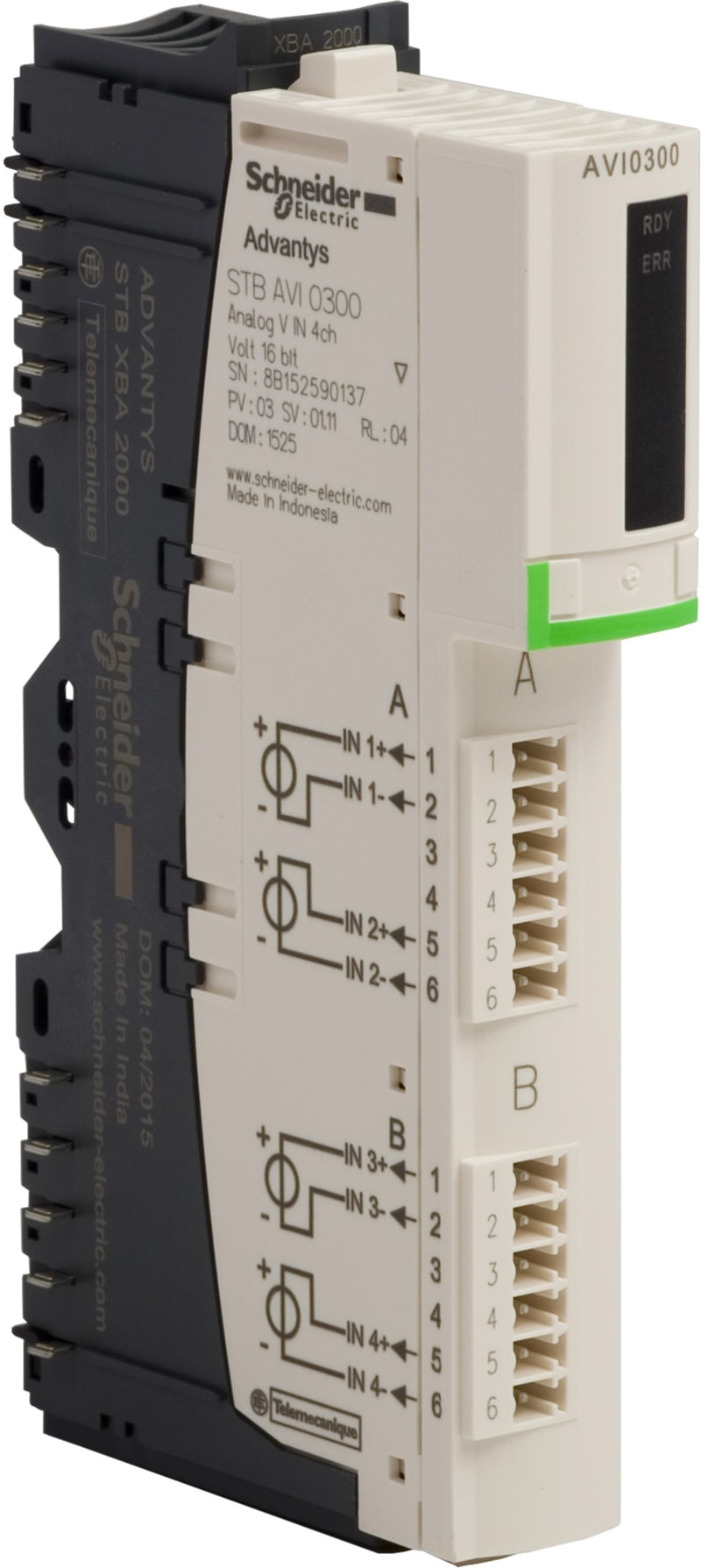

Schneider Electric standard analog input kit STB - +/- 10 V - 4 I - 15 bits + sign STBAVI0300K
Part numberSTBAVI0300KEAN / GTIN3595863948707HS code8536.90
Tools
Hand Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric STBAVI0300K STB kit 4 in analog, voltage, 16bit.
Technical Specifications
- Manufacturer part number (MPN)
- STBAVI0300K
- EAN / GTIN
- 3595863948707
- Sales unit
- pcs
- Range of product
- Modicon STB distributed I/O solution
- Product or component type
- Standard analog input kit
- Kit composition
- STBAVI0300 module; STBXTS1100, 6-terminal screw type connector; STBXTS2100, 6-terminal spring clamp connector; STBXBA1000 base
- Product compatibility
- Mounting base STBXBA1000; Power distribution module STBPDT3100/3105
- Analogue input number
- 4
- Type of filter
- Single low pass input filter 25 Hz
- Analogue output number
- 0
- Absolute maximum input
- 50 V
- Cold swapping
- Yes
- Fallback status
- State 0 basic NIMs; User configurable standard NIMs
- Data format
- IEC 61131-2; EN 61131-2
- Integral linearity
- +/- 0.2 %FS
- Differential linearity
- Monotonic
- Maximum supply current for sensors
- 100 mA per input channels
- Absolute accuracy error
- +/- 0.75 % of full scale 25 °C
- Addressing requirement
- 2 input words
- Supply
- Power distribution module
- Analogue input type
- Voltage +/- 10 V; Voltage +/- 5 V; Voltage 0...10 V; Voltage 0...5 V; Voltage 1...5 V
- Analogue input resolution
- 15 bits + sign
- Input impedance
- 400 kOhm
- Input protection type
- Protected against short-circuit
- Temperature drift
- +/-0.01 %/°C
- Typical current consumption
- 90 mA at 5 V DC for logic bus
- Isolation between channels and bus
- 1500 V for 1 minute
- Hot swapping fallback
- Yes for standard NIMs
- Local signalling
- 1 LED green for module status (RDY); 1 LED red for module error (ERR)
- Height
- 18.4 mm
- Width
- 128.3 mm
- Depth
- 70 mm
- Overvoltage category
- II
- IP degree of protection
- IP20
- Marking
- CE
- Product certifications
- FM Class 1 Division 2; UL; CSA; ATEX Cat 3G; C-Tick
- Ambient air temperature for operation
- -25…70 °C (without derating)
- Ambient air temperature for storage
- -40…85 °C without derating
- Relative humidity
- 95 % at 60 °C without condensation
- Operating altitude
- 2000 m
- Pollution degree
- 2
- Vibration resistance
- +/-0.35 mm (f = 10…58 Hz); 3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail
- Shock resistance
- 30 gn for 11 ms conforming to IEC 88 reference 2-27
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.200 cm
- Package 1 Width
- 8.000 cm
- Package 1 Length
- 13.200 cm
- Package 1 Weight
- 148.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 28
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.670 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Supply voltage DC
- 24 V
- Voltage type (supply voltage)
- DC
- Input, current
- No
- Input, voltage
- Yes
- Input, resistor
- No
- Input, resistance thermometer
- Yes
- Input, thermocouple
- Yes
- Input signal, configurable
- Yes
- Resolution of the analogue inputs
- 15 Bit
- Output, current
- No
- Output, voltage
- No
- Output signal configurable
- No
- Number of analogue inputs
- 4
- Analogue inputs configurable
- Yes
- Analogue outputs configurable
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- System accessory
- Yes
- Degree of protection (IP)
- IP20
- Type of electric connection
- Screw connection
- Fieldbus connection over separate bus coupler possible
- Yes
- Suitable for rail mounting
- Yes
- Wall mounting/direct mounting
- No
- Front built-in possible
- No
- Rack-assembly possible
- Yes
- Suitable for safety functions
- No
