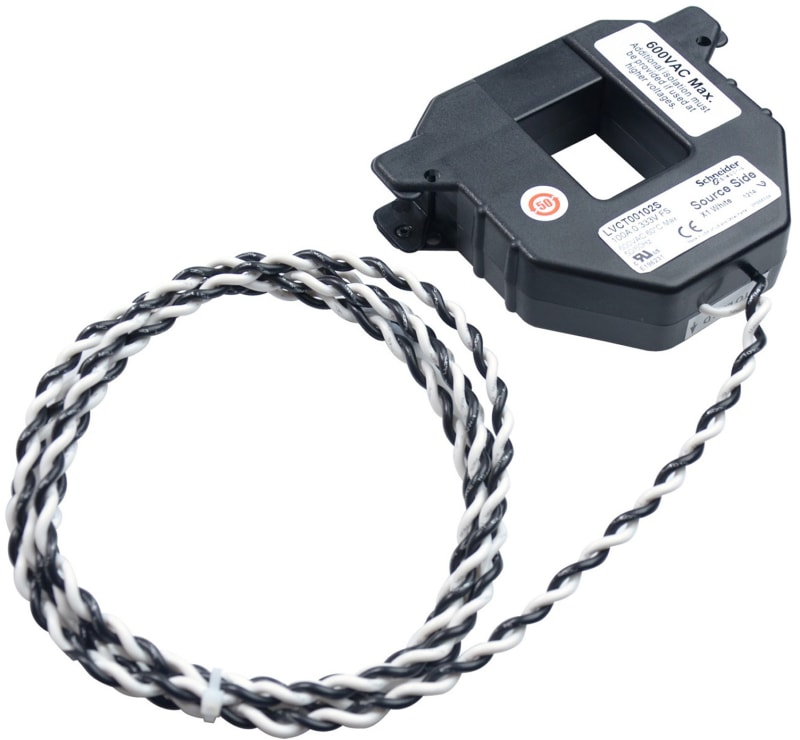

Schneider Electric LVCT 200A - 0.333 V output - split core CT - 31 mm x 100 mm LVCT00202S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVCT00202S LVCT 200A – 0,333 V output – with split core – 31 mm x 100 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVCT00202S
- EAN / GTIN
- 3606480299629
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Rated current
- 200 A
- Range
- PowerLogic
- Device short name
- LVCT
- Product or component type
- Current transformer
- output voltage
- 0.333 V
- Electrical connection
- Cable: 1.8 m (18 AWG) 600 V
- Product destination
- BCPM; BCPMSC; Enercept; IEM3000; EM3500; EM4200; EM4900
- Accessory / separate part category
- Measurement accessory
- Current transformer type
- Split core balance
- [In] rated current
- 200 A
- Network frequency
- 50/60 Hz
- Range compatibility
- PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter; PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter; PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter; PowerLogic PowerLogic EM3500 EM3502 energy meter; PowerLogic PowerLogic EM3500 EM3550 energy meter; PowerLogic PowerLogic EM3500 EM3555 energy meter; PowerLogic PowerLogic EM3500 EM3560 energy meter; PowerLogic PowerLogic EM3500 EM3561 energy meter; PowerLogic PowerLogic EM4200 EM4235 energy meter; PowerLogic PowerLogic EM4200 EM4236 energy meter; PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter; Acti 9 Acti9 iEM3000 iEM3455 energy meter; Acti 9 Acti9 iEM3000 iEM3465 energy meter
- Measurement accuracy
- 1 % 10...100 %
- Relative humidity
- 95 %
- Ambient air temperature for operation
- -15…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Standards
- UL 61010
- Width
- Internal: 31 mm; External: 121 mm
- Depth
- 30 mm
- Height
- Internal: 30 mm; External: 100 mm
- Product weight
- 0.34 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Warranty (in months)
- 18
- Model
- Cable rebuilding current converter
- Rated primary current
- 200 A
- Accuracy class
- 1
- Calibrated
- No
- With contact protection
- No
- Height opening
- 30 mm
- Width opening
- 31 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Cable
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480299629
- SAP 1200108136
- Code 81976145
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Illuminated selector switch, Harmony XB5, grey plastic, orange handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC XB5FK125M5
Schneider Electric
Schneider Electric Starter TeSys H 3KW-400V control 24VDC LZ1H6X5BD
Schneider Electric
Schneider Electric Mechanical interlocking system, ComPacT NSX400/630, devices with extended rotary handles LV432621ET
Schneider Electric
Schneider Electric shunt trip (pre-wired) MX - 110...130 V AC 50/60Hz - 125 V DC LV426863
Schneider Electric
Schneider Electric variable speed drive ATV212 - 15kW - 20hp - 480V - 3PH - EMC - IP21 ATV212HD15N4
Schneider Electric
Schneider Electric spring return contact block - 2 NC - front mounting, 30 or 40 mm centres XACS414
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 220V DC coil, screw clamp terminals LC1D38MD
Schneider Electric

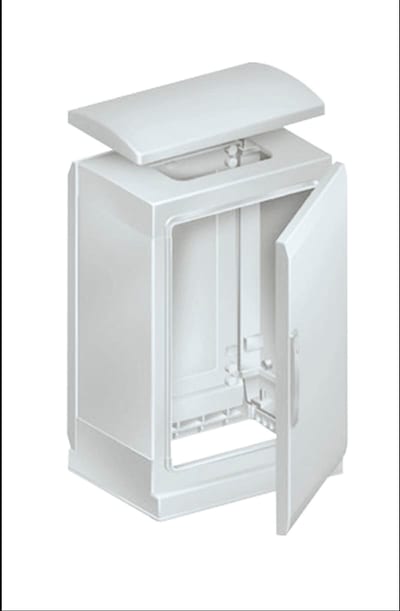

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X1000X320 IP44 NSYPLAZT7103G
