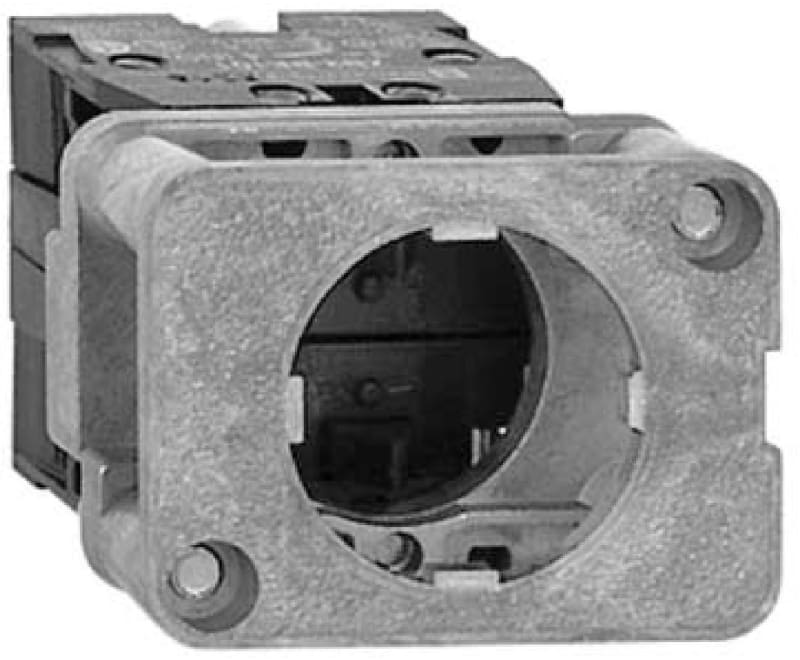

Schneider Electric spring return contact block - 2 NC - front mounting, 30 or 40 mm centres XACS414

Schneider Electric XACS414 Contact Block f/frontmon.2nc.

Manufacturer part number (MPN)

XACS414

EAN / GTIN

3389110647532

Sales unit

pcs

Package quantity

40 pcs

Range of product

Harmony XAC

Product or component type

Contact block

Component name

XACS

Electrical circuit type

Control circuit

Contact block type

Single

Type of operator

Spring return

Product compatibility

ZA2B... head; XACA

Mechanical interlocking

Without mechanical interlock

Contacts type and composition

2 NC

Mounting of block

Front mounting

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Horizontal fixing centres

40 mm

Vertical fixing centres

30 mm

Mechanical durability

1000000 cycles

Contact code designation

A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Rated operational power in VA

140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load); 385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load); 455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load); 525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load)

Terminals description ISO n°1

(21-22)NC; (11-12)NC

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

0.07 kg

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

40

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
