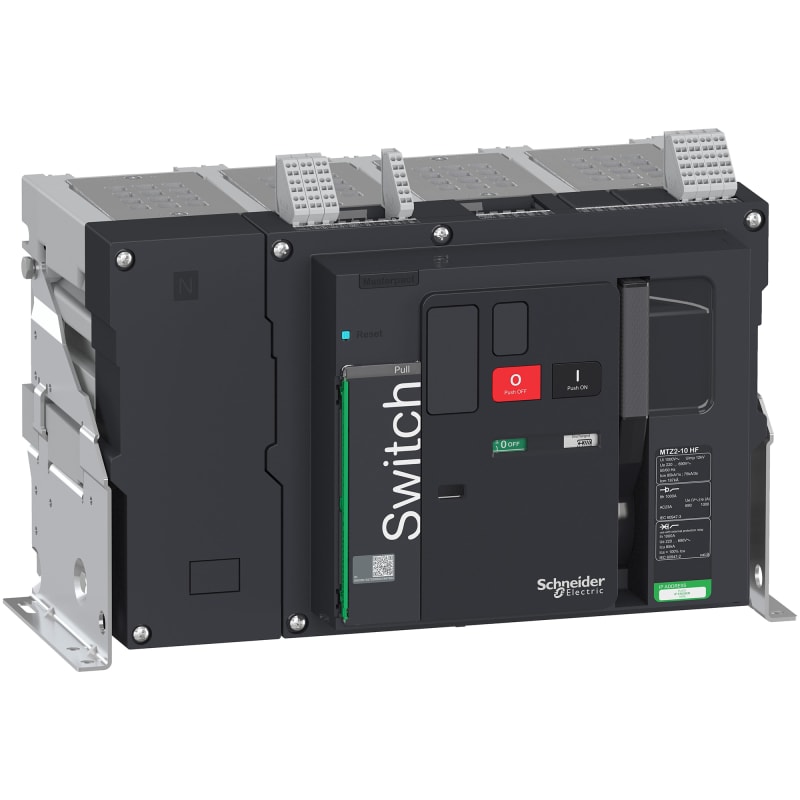

Schneider Electric switch disconnector Masterpact MTZ2 10 HF, 1000 A, 4 poles, fixed LV848027
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV848027 Load-break switch Masterpact MTZ2 10HF 1000A 4p fixed-mounted without connections.
Technical Specifications
- Manufacturer part number (MPN)
- LV848027
- EAN / GTIN
- 3606480817397
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- MasterPact
- Product or component type
- Switch disconnector
- Device application
- Distribution
- Switch-disconnector name
- MasterPact MTZ2 10 HF
- Poles description
- 4P
- Neutral position
- Left
- Network type
- AC
- Network frequency
- 50/60 Hz
- Control type
- Push-button
- mounting mode
- Fixed
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 1000 A AC 50/60 Hz 690 V
- [Ui] rated insulation voltage
- 1000 V AC 50/60 Hz conforming to EN/IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 12 kV conforming to EN/IEC 60947-3
- [Icw] rated short-time withstand current
- 50 kA during 3 s conforming to EN/IEC 60947-3; 85 kA during 1 s conforming to EN/IEC 60947-3
- [Icm] rated short-circuit making capacity
- 187 kA peak 220...690 V AC at 50/60 Hz
- Utilisation category
- AC-23A; AC-3
- performance level
- HF
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 25000 cycles with periodic preventive maintenance conforming to EN/IEC 60947-3
- Electrical durability
- AC-23A: 10000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-23A: 10000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 440 V AC 50/60 Hz conforming to EN/IEC 60947-3; AC-3: 6000 cycles 690 V AC 50/60 Hz conforming to EN/IEC 60947-3
- Connection pitch
- 115 mm
- Height
- 352 mm
- Width
- 537 mm
- Depth
- 300 mm
- Product weight
- 65 kg
- Standards
- EN/IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP30
- Pollution degree
- 3 conforming to EN/IEC 60947-4-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480817397
- SAP 1200498166
- Code 82621694
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Complete illuminated push button, Harmony XB4 - ATEX D, metal, blue flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC XB4BP683BM5GEX
Schneider Electric
Schneider Electric flush mounted selector switch head key 8D1 3 pos stay put ZB5FG3D
Schneider Electric
Schneider Electric Cylindrical barrel MICHELIN lock 8376 without key NSYINICHEL8371
Schneider Electric
Reversing contactor. 12A 24VDC
LC2D12BD
Schneider Electric
Schneider Electric direct rotary handle, ComPacT NSXm, red handle on yellow front, IP40 LV426931T
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.2E, ComPacT NSX100/160/250, 4 poles, basic and ground fault protections, energy meter, 40A C1046E040
Schneider Electric
Schneider Electric RPZR235 Retaining Clamp for RPM Power Relay
Schneider Electric
Schneider Electric compact smart relay Zelio Logic - 20 I O - 100..240 V AC - clock - no display SR2E201FU
Technical guides
- Switch-Disconnector and Safety Switch Cross-Reference — Eaton P1 / P3 / N, Schneider Interpact INS / TeSys Vario, ABB OT / OTE, Siemens 3LD / 3KD, Kraus & Naimer KG by Rating and Poles
- Schneider Electric Acti9 iC60 RCBO Selection Guide (IEC 61009)
- Motor Switching with TeSys — Pairing LC1D Contactors with LRD Overload Relays
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
