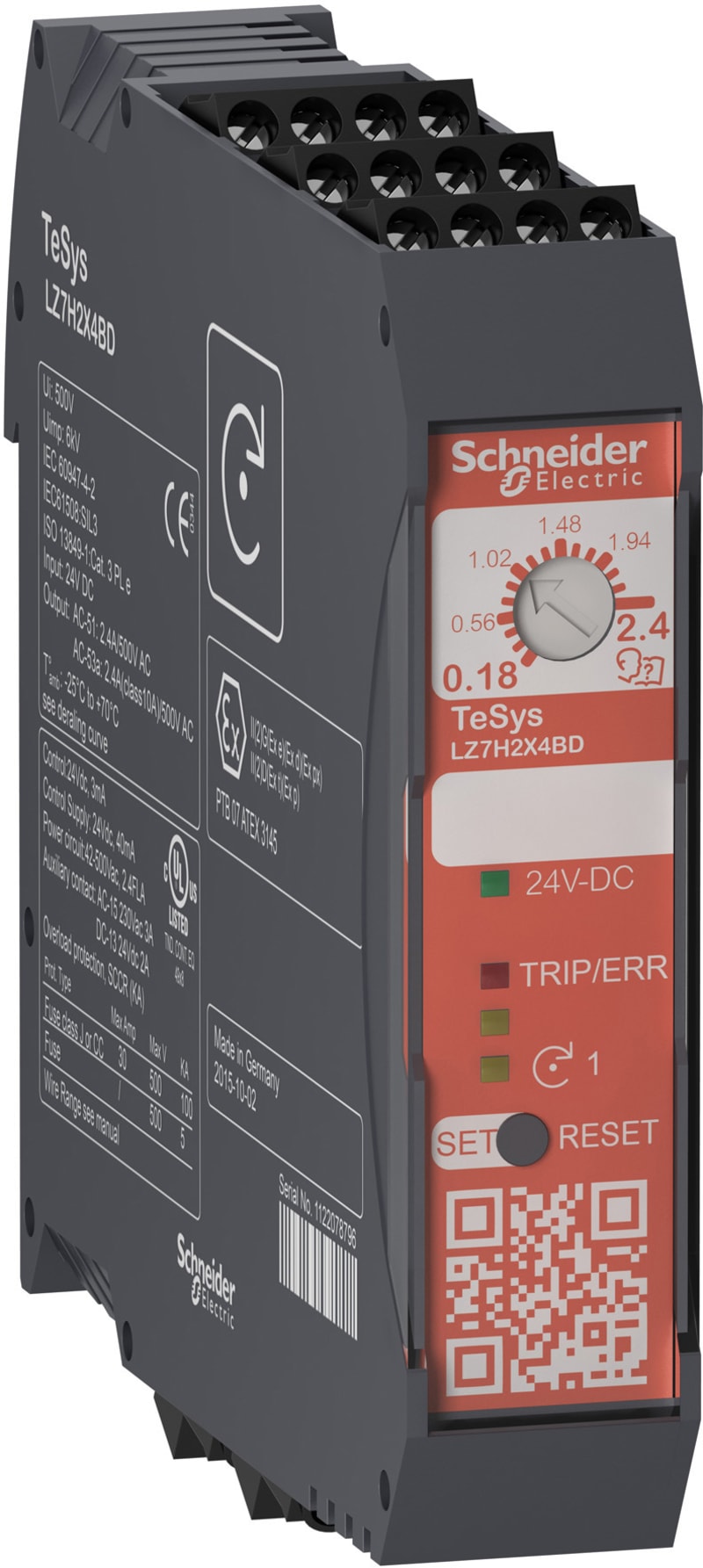

Schneider Electric Starter TeSys H 3KW-400V control 24VDC LZ1H6X5BD

Schneider Electric LZ1H6X5BD Hybrid starter, F, 1,5-6,5A 24VDC.

Manufacturer part number (MPN)

LZ1H6X5BD

EAN / GTIN

3606485421131

Sales unit

pcs

Package quantity

10 pcs

Voltage

24 V DC

Setting range

1.5-6.5 A

Range

TeSys

Product name

TeSys Hybrid

Device short name

LZ1H

Product or component type

Ultra-compact starter

Motor starter type

Direct on line

Poles description

3P

[Ue] rated operational voltage

500 V AC

[Ie] rated operational current

6.5 A at 500 V AC-53A; 9 A at 500 V AC-51; 5 A at 500 V AC-53A mounting side by side; 7 A at 500 V AC-51 mounting side by side

Thermal protection adjustment range

1.5…9 A

Motor power kW

1.5 kW at 220 V AC 0.65; 1.5 kW at 230 V AC 0.65; 2.2 kW at 380 V AC 0.65; 3 kW at 400 V AC 0.65; 3 kW at 415 V AC 0.65; 3 kW at 440 V AC 0.65; 3 kW at 500 V AC 0.65

Motor power hp

1 hp at 200 V AC; 1.5 hp at 230 V AC; 3 hp at 460 V AC

[Uc] control circuit voltage

24 V DC

Thermal overload class

Class 10A conforming to IEC 60947-4-2

Auxiliary contact composition

1 C/O fault signalling

Control circuit voltage limits

19.2...30 V DC

Current consumption

<= 40 mA at 24 V DC

Reset

Manual; Automatic reset; Electrical reset

Electrical durability

30 Mcycles

Maximum operating rate

120 cyc/mn AC-51 50 % ON; 6 cyc/mn AC-53A 50 % ON

mounting mode

By clips

Mounting support

DIN rail

Connections - terminals

Screw clamp terminals 1 cable(s) 0.2…2.5 mm² - rigid; Screw clamp terminals 1 cable(s) 0.25…2.5 mm² - flexible - with cable end; Screw clamp terminals 1 cable(s) 0.2…2.5 mm² - flexible - without cable end

Tightening torque

0.5…0.6 N.m flat Ø 2.5 mm screwdriver 3 mm

Certifications

CULus; CE

Standards

IEC 60947-4-2; UL 60947-4-1

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

Pollution degree

2

Width

22.5 mm

Height

99 mm

Depth

114.5 mm

Product weight

212 g

IP degree of protection

IP20

Protective treatment

TC

Ambient air temperature for operation

-25…30 °C without derating; 30…70 °C with derating

Ambient air temperature for storage

-40…80 °C

Country of origin

DE

Warranty (in months)

18

With transformer

No

Rated operation power at AC-3, 400 V

3 kW

Suitable for emergency stop

No

Rated operation current Ie

9 A

Number of indicator lights

3

Overload release current setting

1.5–6.5 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

Yes

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Degree of protection (IP)

IP20

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10

With short-circuit release

No

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

DC

Type of motor starter

Direct online starter (DOL)

Rated operation power at AC-3, 230 V, 3-phase

1.5 kW

Rated power, 460 V, 60 Hz, 3-phase

3 kW

Rated operation current at AC-3, 400 V

6.5 A

Ambient temperature, upper operating limit

70 °C

Temperature compensated overload protection

Yes

Coordination class according to IEC 60947-4-3

Class 1

HS Code

8537.10
