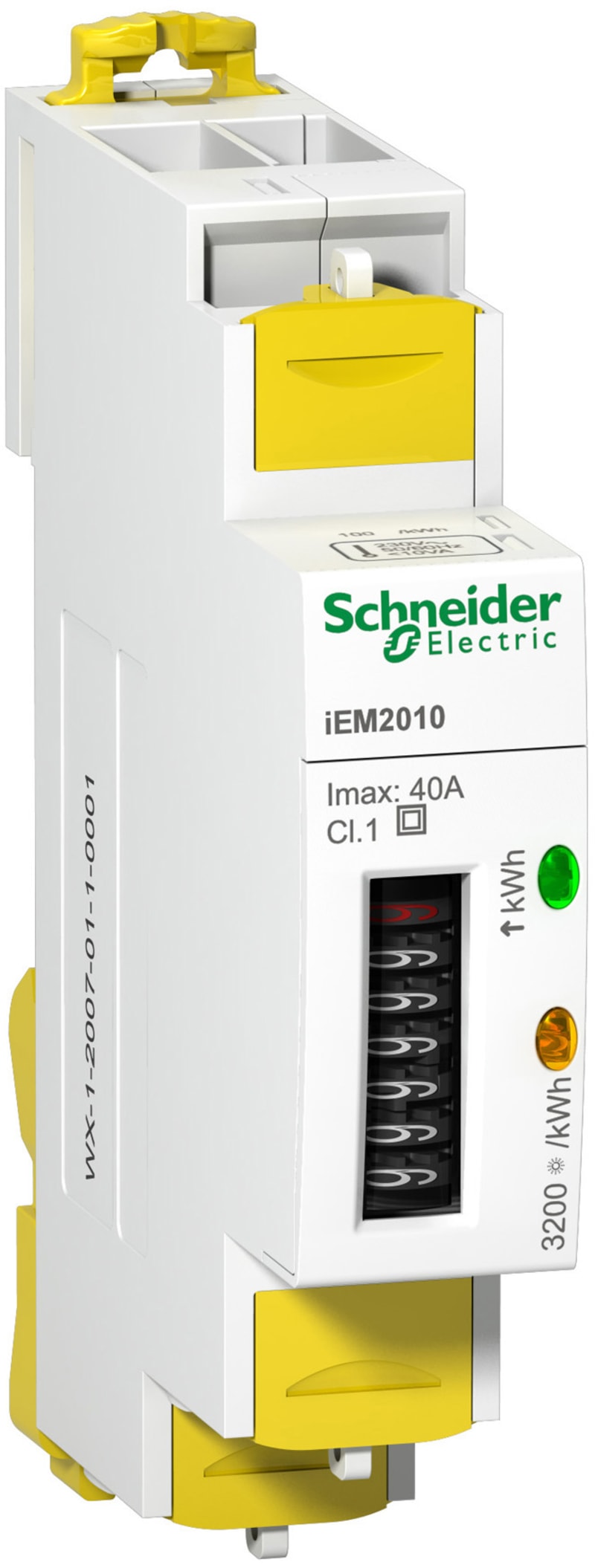

Schneider Electric modular single phase power meter IEM2010 - 230V - 40A with pulse A9MEM2010

Schneider Electric A9MEM2010 2-phase modular kWh-meter, 40A 2-phase with pulsutg. and telleverk.

Manufacturer part number (MPN)

A9MEM2010

EAN / GTIN

3606480217418

Sales unit

pcs

Package quantity

38 pcs

Rated current

40 A

Range

Acti9

family

Acti9 iEM2000

Product or component type

Energy meter

Device short name

iEM2010

Poles description

1P + N

Type of measurement

Active power

Device application

Sub billing

Accuracy class

Class 1 active energy conforming to IEC 62053-21; Class B active energy conforming to EN 50470-3

Analogue input type

Direct input

Maximum current [Imax]

40 A

[Ib] basic current

5 A

Rated voltage

230 V +/- 20 %

Network frequency

50 Hz; 60 Hz

Frequency measurement range

48…62 Hz

Technology type

Electronic

Display type

Electromechanical

Sampling rate

32 samples/cycle

Measurement current

0.25…40 A

Display digits

7

Maximum value measured

999999.9 kWh

Communication port protocol

-

Communication port support

-

Local signalling

Green indicator light: power ON; Yellow indicator light: metering and activity 3200 p/kWh

Number of inputs

0

Number of outputs

1 pulse energy monitoring:

Output voltage

5...35 V DC@20 mA

Impulse duration

120 ms

Maximum power consumption in VA

10 VA at 240 V AC

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Power circuit: tunnel type terminals (bottom) 1 10 mm² cable(s) ; Remote transfer: tunnel type terminals (top) 1 4 mm² cable(s)

Tightening torque

Power circuit: 1.2 N.m; Remote transfer: 0.8 N.m

Standards

IEC 62053-21; IEC 61557-12; EN 50470-3

Product certifications

CE; EAC; EAC (metrology); MID-B; MID-D

IP degree of protection

IP40 front panel: conforming to IEC 60529; IP20 casing:

Ambient air temperature for operation

-10…55 °C

Ambient air temperature for storage

-40…70 °C

Operating altitude

< 2000 m

Relative humidity

0…95 % at 55 °C

Colour

White

9 mm pitches

2

Width

18 mm

Height

96.5 mm

Depth

69 mm

Product weight

0.073 kg

Number of Units in Package 1

1

Number of Units in Package 2

38

Country of origin

CN

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Power consumption

8 W

Frequency

48–62 Hz

Max. current (Imax)

40 A

Width in number of modular spacings

1

Number of positions total (counter)

9

Type of meter

Electronic

Degree of protection (IP)

IP40

Type of interface

None

Energy type

Effective power

Tariff type

One-tariff

Tariff control

Internal

Escapement mechanism

No

Calibrated

Yes

Approval

Measuring Instruments Directive

Pulse output

Electrical

Pulse type

S0

Pulse rate

100 Imp/kWh (kvarh)

Pole type

Single phase

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal voltage (Un) N-L

184–276 V

Nominal current (In)

40 A

HS Code

9028.30
