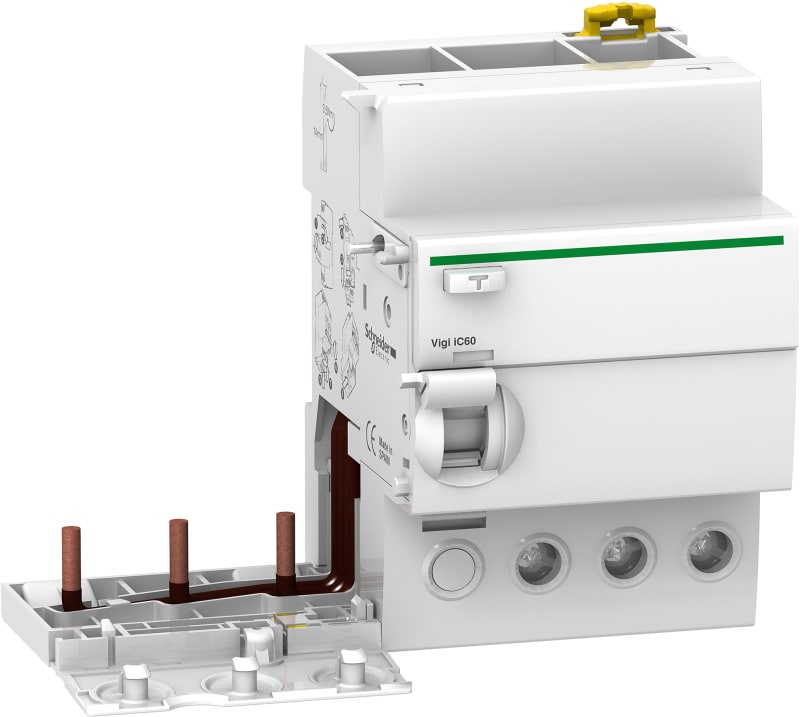

Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 3P, 63A, A-SI type, selective, 300MA, 230...415VAC A9V65363
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9V65363 Vigi iC60 - residual current module - 3P - 63A - 300mA - SI-type - selective.
Technical Specifications
- Manufacturer part number (MPN)
- A9V65363
- EAN / GTIN
- 3606480087783
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Rated current
- 63 A
- Number of poles
- 3P
- Range
- Acti9
- Product name
- Acti9 Vigi iC60
- Product or component type
- Add-on residual current device
- Device short name
- Vigi iC60
- Poles description
- 3P
- [In] rated current
- 63 A
- Earth-leakage sensitivity
- 300 mA
- Earth-leakage protection time delay
- Selective
- Earth leakage protection type
- Type A-SI (Super Immunised)
- Network type
- AC
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 230...415 V AC 50/60 Hz conforming to EN/IEC 61009-1; 230...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
- Standards
- EN/IEC 61009-1; EN/IEC 61009-2-1
- 9 mm pitches
- 7
- Device location in system
- Outgoer
- Residual current tripping technology
- Voltage independent
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Range compatibility
- Acti9 iC60; Acti9 Reflex iC60
- Product compatibility
- Single terminal
- Local signalling
- Trip indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Electrical connection to mcb
- By screws
- Comb busbar and distribution block compatibility
- Bottom: YES
- Height
- 91 mm
- Width
- 117 mm
- Depth
- 73.5 mm
- Product weight
- 0.21 kg
- Connections - terminals
- Tunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable end; Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable end; Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable end
- Wire stripping length
- 14 mm for bottom connection
- Tightening torque
- 3.5 N.m bottom
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to IEC 60947-2
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3000 A conforming to IEC 61009-1
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
- Power loss
- 2.3 W
- Nominal current
- 63 A
- Max. delay time
- 130 ms
- Leakage current type
- A
- Surge current capacity
- 3 kA
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Degree of protection (IP)
- IP20
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480087783
- SAP 1200106260
- Code 81956164
