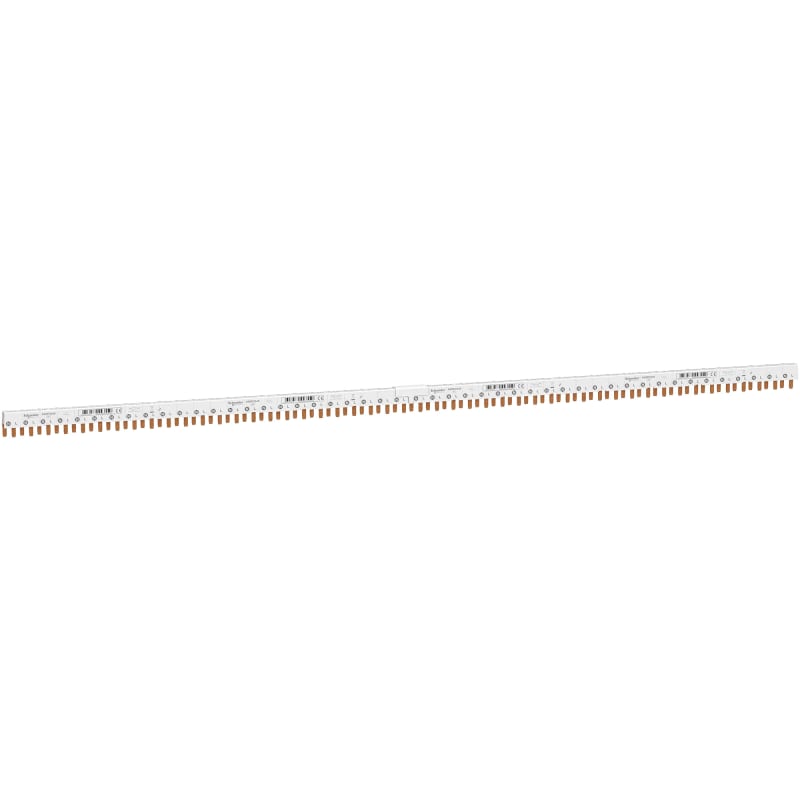

Schneider Electric comb busbar, ACTI9, 1L+N, 9 mm pitch, 48 modules, 80 A A9XPC648

Schneider Electric A9XPC648 Acti 9 busbar 1PN 48 mod iC40.

Manufacturer part number (MPN)

A9XPC648

EAN / GTIN

3606489443559

Sales unit

pcs

Package quantity

6 pcs

Modular width

48 modules

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

1L + N

Length in 18 mm modules

48

Standards

EN/IEC 61439-1

Number of ways

48 ways N + 1 L

Distribution type

N L

Poles configuration for 1 way

1 x 1P + N

Connection pitch

9 mm between phase and neutral

Connector type

Tooth

Distance between way

18 mm

Marking

N L

Insulation

Insulated

Device presentation

Cuttable

Provided equipment

end-pieces; tooth covers

[Ie] rated operational current

80 A at 40 °C

[Ue] rated operational voltage

230 V AC Ph/N

[Ui] rated insulation voltage

400 V AC conforming to IEC 61439-1

[Uimp] rated impulse withstand voltage

4 kV

Mounting location

Top on tunnel type terminals

9 mm pitches

96

Height

29 mm

Width

862 mm

Depth

16 mm

Product weight

334 g

Colour

White (RAL 9003)

Range compatibility

Acti9 Acti9 C40; Acti9 Acti9 C40 Vigi; Acti9 Acti9 iDPN; Acti9 Acti9 iDPN Vigi; Acti9 Acti9 IDc; Multi9 Multi9 N40; Multi9 Multi9 N40 Vigi; Acti9 Acti9 iC40; Acti9 Acti9 iCV40; Acti9 Vigi iCG40; Acti9 Acti9 iID40

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to EN/IEC 60439-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

120

Country of origin

PL

Warranty (in months)

18

Insulated

Yes

Number of phases

1

Rated permanent current Iu

80 A

Number of poles

2

Length

862 mm

Width in number of modular spacings

48

Rated surge voltage

4 kV

Type of electric connection

Pin

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

Yes

Suitable for number of devices

48

Max. rated operation voltage Ue

230 V

Module width

9 mm

Can be cut to size

Yes

HS Code

8536.90

• EAN 3606489443559
• SAP 1200232054
• Code 82180567
