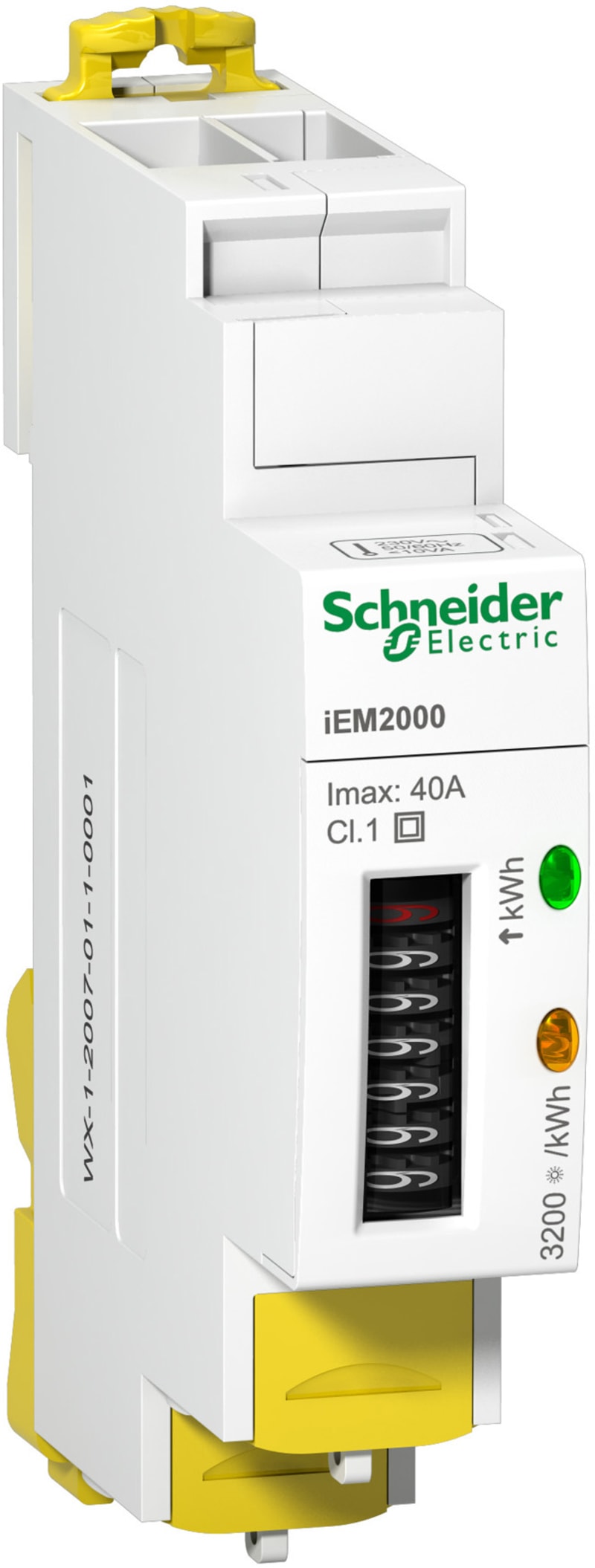

Schneider Electric modular single phase power meter IEM2000 - 230V - 40A A9MEM2000

Schneider Electric A9MEM2000 2-phase modular kWh-meter, 40A 2-phase.

Manufacturer part number (MPN)

A9MEM2000

EAN / GTIN

3606480217401

Sales unit

pcs

Package quantity

38 pcs

Rated current

40 A

Range

Acti9

family

Acti9 iEM2000

Product or component type

Energy meter

Device short name

iEM2000

Poles description

1P + N

Type of measurement

Active power

Device application

Sub billing

Accuracy class

Class 1 active energy conforming to IEC 62053-21; Class B active energy conforming to EN 50470-3

Analogue input type

Direct input

Maximum current [Imax]

40 A

[Ib] basic current

5 A

Rated voltage

230 V +/- 20 %

Network frequency

50 Hz; 60 Hz

Frequency measurement range

48…62 Hz

Technology type

Electronic

Display type

Electromechanical

Sampling rate

32 samples/cycle

Measurement current

0.25…40 A

Display digits

7

Maximum value measured

999999.9 kWh

Communication port protocol

-

Communication port support

-

Local signalling

Green indicator light: power ON; Yellow indicator light: metering and activity 3200 p/kWh

Number of inputs

0

Maximum power consumption in VA

10 VA at 240 V AC

mounting mode

Clip-on

Mounting support

DIN rail

Connections - terminals

Power circuit: tunnel type terminals (bottom) 1 10 mm² cable(s)

Tightening torque

Power circuit: 1.2 N.m

Standards

IEC 62053-21; IEC 61557-12; EN 50470-3

Product certifications

CE; MID-D; EAC; EAC (metrology); MID-B

IP degree of protection

IP40 front panel: conforming to IEC 60529; IP20 casing:

Ambient air temperature for operation

-10…55 °C

Ambient air temperature for storage

-40…70 °C

Operating altitude

< 2000 m

Relative humidity

0…95 % at 55 °C

Colour

White

9 mm pitches

2

Width

18 mm

Height

96.5 mm

Depth

69 mm

Product weight

0.073 kg

Number of Units in Package 1

1

Number of Units in Package 2

38

Country of origin

CN

Warranty (in months)

18

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Power consumption

8 W

Frequency

50–60 Hz

Max. current (Imax)

40 A

Width in number of modular spacings

1

Number of positions total (counter)

9

Type of meter

Electronic

Degree of protection (IP)

IP40

Type of interface

None

Energy type

Effective power and reactive power

Tariff type

One-tariff

Tariff control

Internal

Escapement mechanism

No

Calibrated

Yes

Approval

Measuring Instruments Directive

Pulse output

None

Pole type

Single phase

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal voltage (Un) N-L

184–276 V

Nominal current (In)

40 A

HS Code

8538.90
