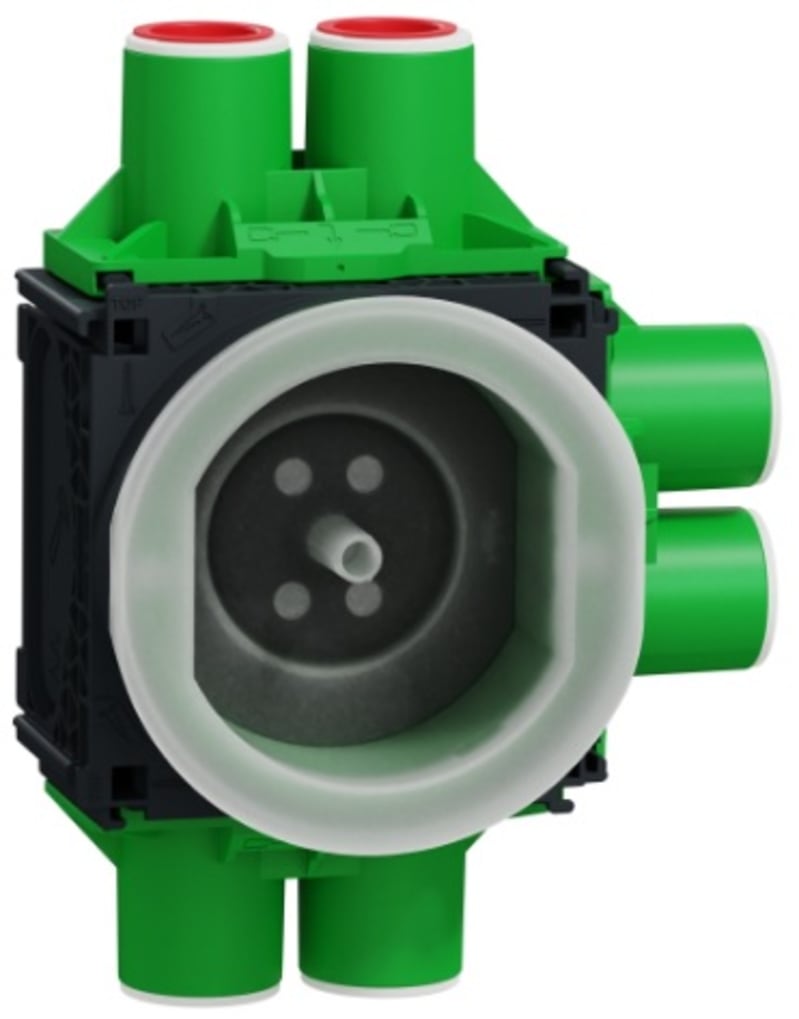

Schneider Electric Multifix Single Device Box 32 mm, 6 Conduit Entries

Schneider Electric IMT80277 is a Multifix single device box for concrete pouring, 32 mm stub spacing with six pipe inlets sized for 16/20 mm conduit. Round plastic housing 73 mm diameter, 58 mm deep, IP30, halogen-free, supplied with mounting screws and casting cover. Used in cast-in-situ concrete construction to prepare device positions for wiring accessories and downstream conduit runs.

Manufacturer part number (MPN)

IMT80277

EAN / GTIN

3606481455819

Sales unit

pcs

Package quantity

40 pcs

With partition panel

No

Mounting method

Concrete building

Shape

Round

Construction type

Device connection box (round/square)

Model

Single

Provided with revolving ring

Yes

Couplable

Yes

Diameter

73 mm

Length

133 mm

Width

71 mm

Depth

58 mm

Inner depth

55 mm

For number of electric fittings

1

Mounting switching equipment

Screw or spread out

With screws

Yes

Housing feed-through by break-out opening

Yes

Housing feed-through by seal membrane

No

Housing feed-through by nozzle

Yes

Housing feed-through by step membrane

No

For tube diameter

16/20 mm

Pipe locking

Yes

Pipe locking optional

No

Inlet from the rear

Yes

Number of inlets

6

Number of included spouts

6

Material

Plastic

Halogen free

Yes

Surface protection

Untreated

Colour

Grey

Degree of protection (IP)

IP30

Cover model

Suitable for snap-in connector (manufacturer specific)

Transparent cover

No

Cover attachment

Snapped on

Sealable

No

Circuit integrity

None

With screening

No

Air tight

No

Clamp position fixed

No

Luminaire hook mounting

No

Nozzle

None

With nail lugs

No

Country of origin

Poland

HS Code

7318.12

• EAN 3606481455819
• SAP 1200539567
• Code 82826126
