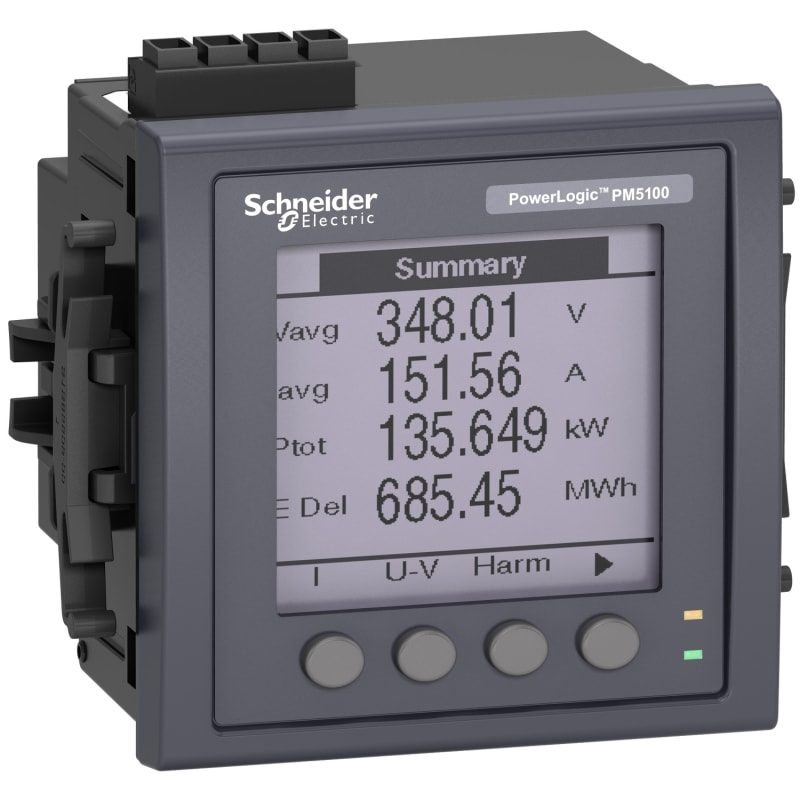

Schneider Electric PM5111 Meter, modbus, up to 15TH H, 1DO 33 alarms, MID METSEPM5111

Schneider Electric METSEPM5111 Power analyser PM5110. 690V, Modbus and 1 digital output. MID certified.

Manufacturer part number (MPN)

METSEPM5111

EAN / GTIN

3606480624513

Sales unit

pcs

Package quantity

12 pcs

Range

PowerLogic

Product name

PowerLogic PM5000

Product or component type

Power meter

Device short name

PM5111

Power quality analysis

up to the 15th harmonic

Device application

Power monitoring

Type of measurement

Current; Voltage; Frequency; Power factor; Energy; Active and reactive power

[Us] rated supply voltage

90...450 V AC 45...65 Hz; 100...300 V DC

Network frequency

50 Hz; 60 Hz

[In] rated current

5 A; 1 A

type of network

3P; 1P + N; 3P + N

Maximum power consumption in VA

11 VA at 415 V

Ride-through time

80 ms 120 V AC typical; 100 ms 230 V AC typical; 100 ms 415 V AC typical

Display type

Monochrome graphic LCD

Display resolution

128 x 128 pixels

Sampling rate

64 samples/cycle

Measurement current

50…8500 mA

Analogue input type

Voltage (impedance 5 MOhm); Current (impedance <= 0.3 mOhm)

Measurement voltage

35…760 V AC 45...65 Hz between phases; 20…440 V AC 45...65 Hz between phase and neutral

Frequency measurement range

45…65 Hz

Number of inputs

0

Measurement accuracy

Active energy +/- 0.5 %; Reactive energy +/- 2 %; Active power +/- 0.5 %; Apparent power +/- 0.5 %; Frequency +/- 0.05 %; Power factor +/- 0.5; Current +/- 0.5 %; Voltage +/- 0.5 %; Apparent energy +/- 0.5 %; Reactive power +/- 2 %

Accuracy class

Class 0.5S active energy conforming to IEC 62053-22

Number of outputs

1 digital

Communication port protocol

Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V; JBUS

Communication port support

RS485

Data recording

Time stamping; Min/max of instantaneous values

Connections - terminals

Voltage circuit: screw terminal block4; Control circuit: screw terminal block2; Current transformer: screw terminal block6; Input/output circuit: screw terminal block6; RS485 link: screw terminal block4

mounting mode

Flush-mounted

Mounting support

Framework

Standards

IEC 61557-12:2015; EN 50470-1; UL 61010-1; IEC 62053-24; IEC 60529; EN 50470-3; IEC 62053-22:2020; IEC 62053-23:2020; IEC 62052-11:2020; IEC 62052-31:2015

Product certifications

CE conforming to IEC 61010-1; CULus conforming to UL 61010-1; MID conforming to EN 50470-1; MID conforming to EN 50470-3

Width

96 mm

Depth

72 mm

Height

96 mm

Product weight

380 g

Electromagnetic compatibility

Surge immunity test class A conforming to IEC 61000-4-5; Voltage dips and interruptions immunity test level 4 conforming to IEC 61000-4-11; Limits for harmonic current emissions class A conforming to IEC 61000-3-2; Electrostatic discharge level 4 conforming to IEC 61000-4-2; Conducted RF disturbances level 3 conforming to IEC 61000-4-6; Magnetic field at power frequency level 4 conforming to IEC 61000-4-8; Conducted and radiated emissions class B conforming to EN 55022; Immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6; Electrical fast transient/burst immunity test conforming to IEC 61000-4-4; Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3; Surge immunity test conforming to IEC 61000-4-5; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11; Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3; Conducted RF disturbances conforming to IEC 61000-4-6; Immunity to impulse waves conforming to IEC 61000-4-12

IP degree of protection

IP54 display: conforming to IEC 60529; IP30 rear: conforming to IEC 60529

Relative humidity

5…95 % at 50 °C non-condensing

Pollution degree

2

Ambient air temperature for operation

-25…70 °C meter; -20…70 °C display; -25…-20 °C (with reduced performance) display

Ambient air temperature for storage

-40…85 °C

Operating altitude

2000 m CAT III; 3000 m CAT II

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

96

Country of origin

IN

Warranty (in months)

18

EAN

3606480613999

Measured value memory

No

Power factor

Yes

Suitable for RJ plug

No

Step angle (cos phi)

Yes

Harmonics measurement

Yes

Pulse output

Optical

Calibrated

No

Max. current (Imax)

20 A

Measurement type load profile

Yes

With communication interface KNX

No

With communication interface M-Bus

No

With communication interface RS-485

Yes

Model

Measurement transformer

Mounting method

Front mounting

Nominal current (In)

5 A

Pole type

Three conductor/four conductor

Apparent power

Yes

Connectable conductor cross section solid-core

0.82–3.31 mm²

Ampere meter

Yes

Reactive power meter

Yes

With rotational speed meter

No

Frequency meter

Yes

Pulse counter

No

Voltmeter

Yes

Effective power measurement device

Yes

Accuracy class active energy according to IEC 62053-22

0.5S

Sampling frequency

6400 Hz

Number of voltage measurement inputs

4

Number of current measurement inputs

6

Voltage type (supply voltage)

AC/DC

Supply voltage AC 50 Hz

100–415 V

Supply voltage AC 60 Hz

100–415 V

Supply voltage DC

125–250 V

Measuring range for frequency

47–63 Hz

Display

LCD

Remote display

No

Number of digital outputs

1

Supporting protocol for IEC 61850 Ethernet

No

Supporting protocol for OPC UA PubSub

No

Supporting protocol for PROFIBUS

No

Supporting protocol for Modbus

Yes

Supporting protocol for PROFINET IO

No

Supporting protocol for other bus systems

Yes

With audit logging (audit log)

No

With firmware signature

No

With logging of security events (security event log)

Yes

With Role Based Access Control (RBAC)

No

Web server with HTTPS transfer protocol

No

HS Code

9028.30
