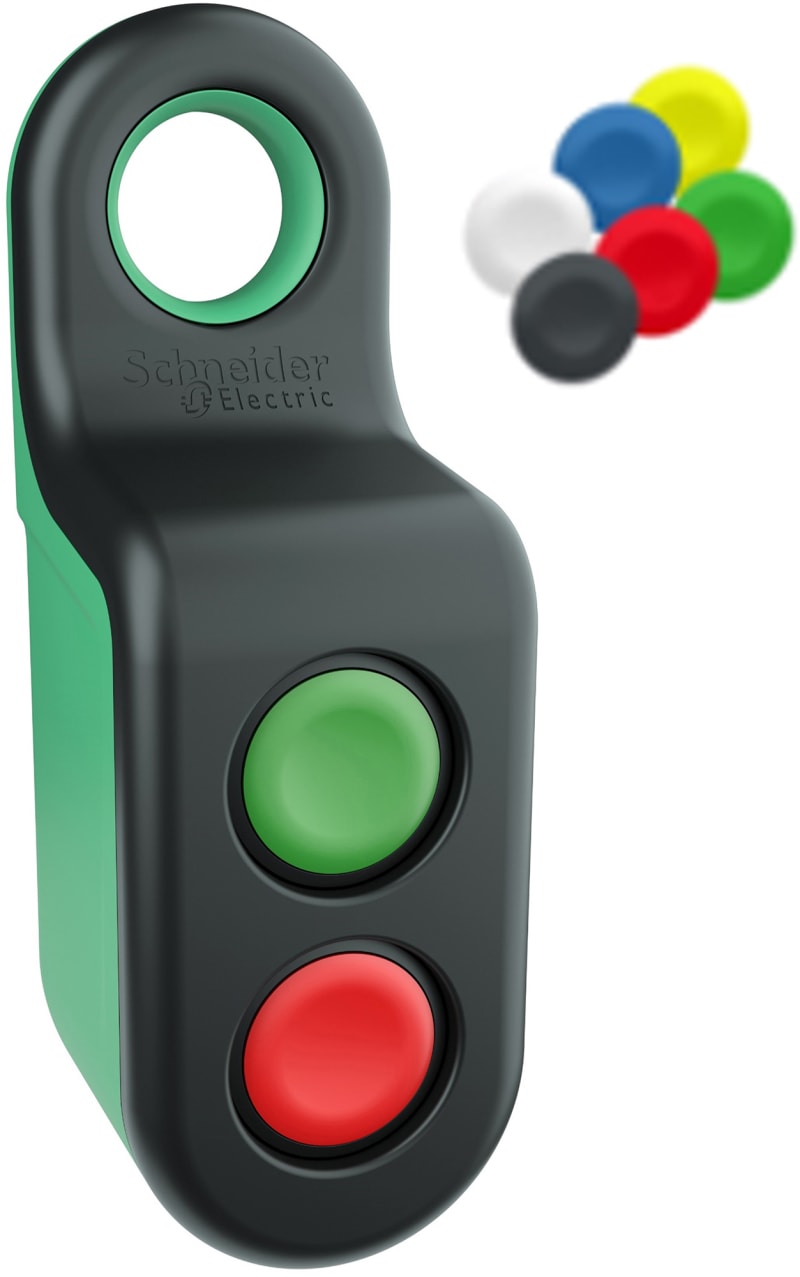

Schneider Electric wireless and battery less handy box, 2 simple action buttons ZBRM22A0

Schneider Electric ZBRM22A0 Mobil push-button station in plastic with 2 pcs wireless push buttons with 1 signal.

Manufacturer part number (MPN)

ZBRM22A0

EAN / GTIN

3606480891083

Sales unit

pcs

Range of product

Harmony XB5R

Product or component type

Wireless and batteryless transmitter

Device short name

XB5R

Contact operation

2 simple action push-button

Bezel material

Plastic

Fixing collar material

Plastic

Mounting diameter

22 mm

Kit composition

1 set of caps; 1 handy box; 2 transmitter; 2 push-button head diameter: 22 mm; 2 fixing collars

Shape of signaling unit head

Round

Type of operator

spring return push-button with transmitter

Operator profile

Flush

Operator additional information

Set of caps

Product weight

0.2 kg

Mechanical durability

1000000 cycles

Operating travel

4.3 mm (total travel)

Operating force

25 N C/O changing electrical state

Shock resistance

25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Mechanical robustness

Free fall resistance 1000 mm conforming to IEC 60068-2-32

Communication port protocol

Zigbee green power at 2.4 GHz

Maximum sensing distance

100 m in free field; 25 m transmitter in the handy box and receiver in a metal enclosure; 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna

Acquisition time

2 ms

Response time

< 2 ms

Emission power

3 mW

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…55 °C

IP degree of protection

IP65 (front face) conforming to IEC 60529; IP65 (front face) conforming to UL Type 12

IK degree of protection

IK03 conforming to IEC 50102

Relative humidity

95 % at 70 °C without condensation

Vibration resistance

5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6; +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3

Radio agreement

RSS conforming to UL 508; ARIB T66 conforming to CSA C22.2 No 14; ICASA; ANATEL; FCC

Standards

IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; UL 508

Product certifications

C-Tick; CSA; BT 2006/95/EC; EAC; UL; CCC

Directives

2004/108/EC - electromagnetic compatibility; 1999/5/EC - R&TTE directive

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.800 cm

Package 1 Width

6.800 cm

Package 1 Length

16.900 cm

Package 1 Weight

206.000 g

Country of origin

FR

Warranty (in months)

18

Spare part

Yes

HS Code

8538.90
