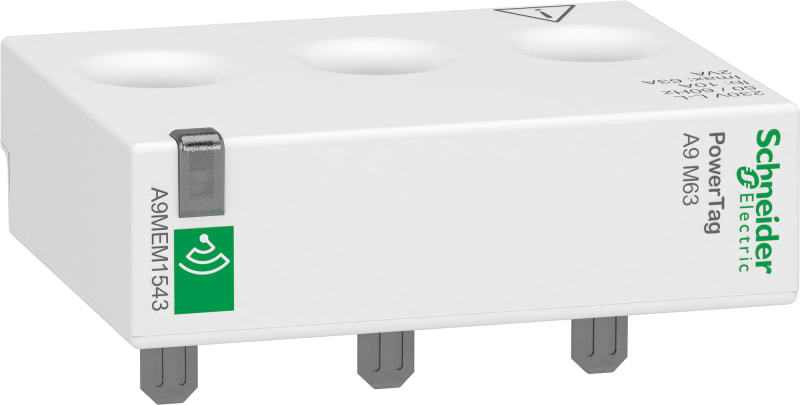

Schneider Electric energy sensor, PowerTag Monoconnect 230V LL 63A 3P top and bottom position A9MEM1543

Schneider Electric A9MEM1543 Acti 9 - PowerTag - 3P 230V - Mounted up or below - Max.. 63 A - Energisensor.

Manufacturer part number (MPN)

A9MEM1543

EAN / GTIN

3606489606756

Sales unit

pcs

Package quantity

48 pcs

Voltage

230 V

Rated current

63 A

Number of poles

3P

Range of product

PowerLogic

Product name

PowerTag A9 M63

Product or component type

Energy sensor

Poles

3P

Maximum current [Imax]

63 A

[Ib] Basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

Circuit monitoring; Cost allocation; Load monitoring; Overload alarm; Energy management

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Wiser hub generation 2; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Application

Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm

Range compatibility

Acti9 Acti9 iK60; Acti9 Acti9 iC60; Acti9 Acti9 iC60 RCBO; Multi9 Multi9 C60

Type of measurement

Active power; Current; Voltage; Power factor; Active energy

Accuracy class

Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12

Mounting location

Top or bottom

Mounting support

On circuit breaker

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

Monoconnect

Mounting mode

By screws (terminals)

Electrical connection (voltage sensing & power supply)

Connector tooth

Cable cross section

1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²

supply voltage

200...240 V AC, +/- 20 %, between phases

Network frequency

50 Hz; 60 Hz

Maximum power consumption

2 VA

Standards

IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1

Product certifications

IEC; DNV Marine

Height

16.5 mm

Width

54 mm

Depth

43 mm

Product weight

28 g

Colour

White (RAL 9003)

Compatibility code

PowerTag A9 M63

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Overvoltage category

III conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Relative humidity

0…95 % at 45 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use

Warranty (in months)

18

Mounting method

Plug-in technique

Model

Direct measurement

Suitable for

Purchase

Type of indication

None

Frequency

50–60 Hz

Max. current (Imax)

63 A

Width in number of modular spacings

3

Type of meter

Electronic

Degree of protection (IP)

IP20

Energy type

Effective power and reactive power

Tariff type

One-tariff

Escapement mechanism

No

Calibrated

Yes

Approval

Domestic

Pulse output

None

Pole type

Three conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

No

Nominal voltage (Un) L-L

220–240 V

Nominal current (In)

63 A

Country of origin

Latvia

HS Code

9030.33
