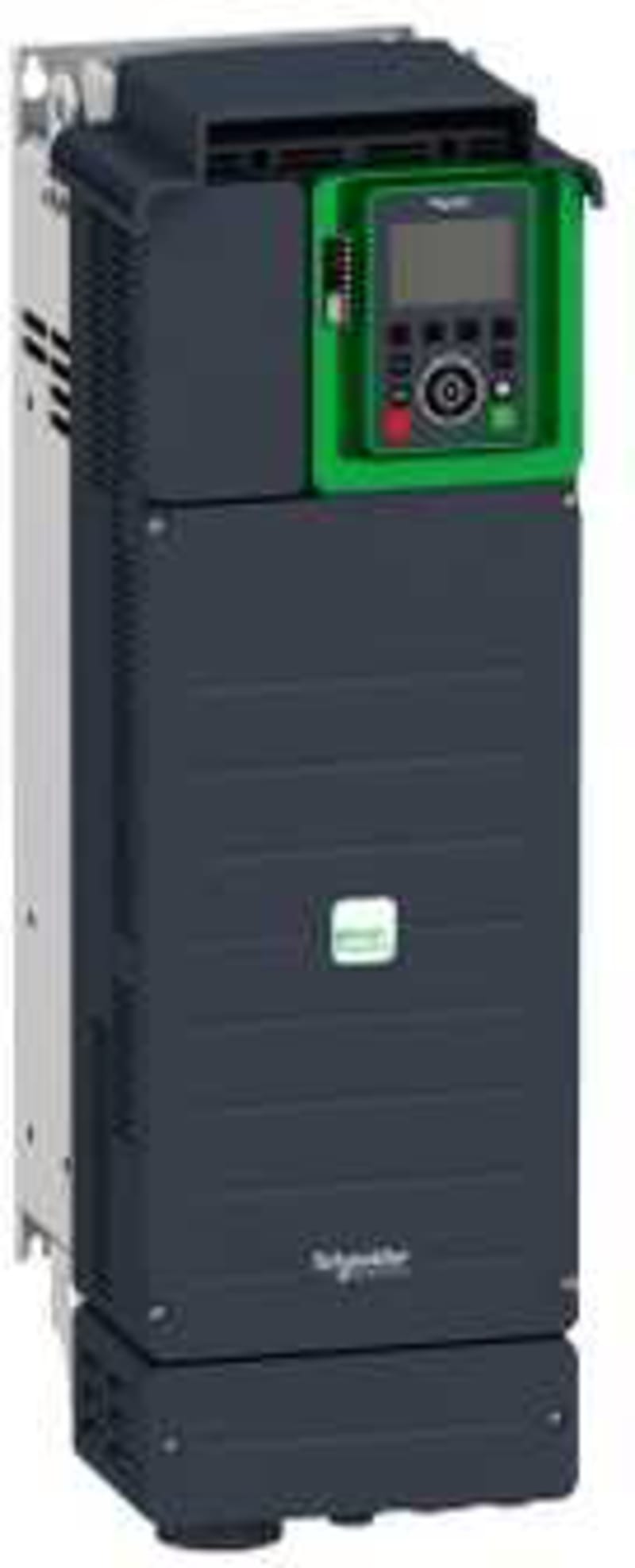

Schneider Electric variable speed drive ATV630 - 22KW/30HP - 200...240V - IP21/UL type 1 ATV630D22M3

Schneider Electric ATV630D22M3 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Altivar630 IP21 22KW 200V/240V.

Manufacturer part number (MPN)

ATV630D22M3 EAN / GTIN: 3606480701504 Sales unit: pcs IP rating: IP21 Power: 22 kW Range of product: Altivar Process ATV600 Product specific application: Process and utilities Product or component type: Variable speed drive Variant: Standard version Device short name: ATV630 mounting mode: Wall mount Communication port protocol: Modbus TCP; Ethernet; Modbus serial [Us] rated supply voltage: 200...240 V - 15...10 % Relative symmetric mains voltage tolerance: 10 % Relative symmetric network frequency tolerance: 5 % nominal output current: 92.6 A IP degree of protection: IP21 Product destination: Asynchronous motors; Synchronous motors EMC filter: Without EMC filter Degree of protection: UL type 1 conforming to UL 508C Type of cooling: Forced convection Supply frequency: 50...60 Hz - 5...5 % Motor power kW: 22 kW (normal duty); 18.5 kW (heavy duty) Motor power hp: 30 hp normal duty; 25 hp heavy duty Line current: 76 A at 200 V (normal duty); 64.3 A at 240 V (normal duty); 64.8 A at 200 V (heavy duty); 54.5 A at 240 V (heavy duty) Continuous output current: 92.6 A at 4 kHz for normal duty; 78.4 A at 4 kHz for heavy duty Speed drive output frequency: 0.1…500 Hz Safety function: STO (safe torque off) SIL 3 Option card: Slot A: communication module, Profibus DP V1; Slot A: communication module, PROFINET; Slot A: communication module, DeviceNet; Slot A: communication module, Modbus TCP/EtherNet/IP; Slot A: communication module, CANopen daisy chain RJ45; Slot A: communication module, CANopen SUB-D 9; Slot A: communication module, CANopen screw terminals; Slot A/slot B: digital and analogue I/O extension module; Slot A/slot B: output relay extension module; Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link; Communication module, BACnet MS/TP; Communication module, Ethernet Powerlink Discrete input number: 8 Discrete input type: DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) Discrete input logic: 16 preset speeds Discrete output number: 0 Discrete output type: Relay outputs R1A, R1B, R1C 250 V AC 3000 mA; Relay outputs R1A, R1B, R1C 30 V DC 3000 mA; Relay outputs R2A, R2C 250 V AC 5000 mA; Relay outputs R2A, R2C 30 V DC 5000 mA; Relay outputs R3A, R3C 250 V AC 5000 mA; Relay outputs R3A, R3C 30 V DC 5000 mA Analogue input number: 3 Analogue input type: AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits; AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits; AI2 voltage analogue input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits Analogue output number: 2 Analogue output type: Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits; Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits; Software-configurable current DQ-, DQ+: 30 V DC; Software-configurable current DQ-, DQ+: 100 mA Relay output number: 3 Relay output type: Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles; Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles; Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Maximum switching current: Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC; Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC; Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC; Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC minimum switching current: Relay output R1, R2, R3: 5 mA at 24 V DC Network number of phases: 3 phases Physical interface: Ethernet; 2-wire RS 485 Method of access: Slave Modbus TCP Transmission rate: 10, 100 Mbits; 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Transmission frame: RTU output voltage: <= power supply voltage Permissible temporary current boost: 1.1 x In during 60 s (normal duty); 1.5 x In during 60 s (heavy duty) Data format: 8 bits, configurable odd, even or no parity Type of polarization: No impedance Frequency resolution: Display unit: 0.1 Hz; analogue input: 0.012/50 Hz Electrical connection: Control: removable screw terminals 0.5...1.5 mm²/20 AWG...16 AWG; Line side: screw terminal 35...50 mm²/2 AWG...1 AWG; Motor: screw terminal 50 mm²/1 AWG Connector type: RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP; RJ45 (on the remote graphic terminal) for Modbus serial Exchange mode: Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP Number of addresses: 1…247 for Modbus serial Supply: External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection; Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection; Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection Local signalling: 3 LEDs for local diagnostic; 3 LEDs (dual colour) for embedded communication status; 4 LEDs (dual colour) for communication module status; 1 LED (red) for presence of voltage Input compatibility: DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2; DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68; STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2 Sampling duration: 2 ms +/- 0.5 ms (DI1...DI4) - discrete input; 5 ms +/- 1 ms (DI5, DI6) - discrete input; 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analogue input; 10 ms +/- 1 ms (AO1) - analogue output Accuracy: +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analogue input; +/- 1 % AO1, AO2 for a temperature variation 60 °C analogue output Linearity error: AI1, AI2, AI3: +/- 0.15 % of maximum value for analogue input; AO1, AO2: +/- 0.2 % for analogue output Refresh time: Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) Isolation: Between power and control terminals Discrete and process manufacturing: Building - HVAC compressor centrifugal; Food and beverage processing other application; Mining mineral and metal fan; Mining mineral and metal pump; Oil and gas fan; Water and waste water other application; Building - HVAC screw compressor; Food and beverage processing pump; Food and beverage processing fan; Food and beverage processing atomization; Oil and gas electro submersible pump (ESP); Oil and gas water injection pump; Oil and gas jet fuel pump; Oil and gas compressor for refinery; Water and waste water centrifuge pump; Water and waste water positive displacement pump; Water and waste water electro submersible pump (ESP); Water and waste water screw pump; Water and waste water lobe compressor; Water and waste water screw compressor; Water and waste water compressor centrifugal; Water and waste water fan; Water and waste water conveyor; Water and waste water mixer Power range: 15…25 kW at 200…240 V 3 phases Enclosure mounting: Wall mounted 4 quadrant operation possible: False Asynchronous motor control profile: Constant torque standard; Optimized torque mode; Variable torque standard Synchronous motor control profile: Permanent magnet motor; Synchronous reluctance motor Maximum output frequency: 500 kHz Acceleration and deceleration ramps: Linear adjustable separately from 0.01...9999 s Motor slip compensation: Adjustable; Can be suppressed; Not available in permanent magnet motor law; Automatic whatever the load Switching frequency: 2...12 kHz adjustable; 4...12 kHz with derating factor Nominal switching frequency: 4 kHz Braking to standstill: By DC injection Brake chopper integrated: False Maximum input current: 76.0 A Maximum output voltage: 240.0 V Apparent power: 26.7 kVA at 240 V (normal duty); 22.7 kVA at 240 V (heavy duty) Maximum transient current: 101.9 A during 60 s (normal duty); 117.6 A during 60 s (heavy duty) Network frequency: 50...60 Hz Prospective line Isc: 50 kA Base load current at high overload: 78.4 A Base load current at low overload: 92.6 A Power dissipation in W: Natural convection: 107 W at 200 V, switching frequency 4 kHz; Forced convection: 707 W at 200 V, switching frequency 4 kHz With safety function Safely Limited Speed (SLS): False With safety function Safe brake management (SBC/SBT): False With safety function Safe Operating Stop (SOS): False With safety function Safe Position (SP): False With safety function Safe programmable logic: False With safety function Safe Speed Monitor (SSM): False With safety function Safe Stop 1 (SS1): False With sft fct Safe Stop 2 (SS2): False With safety function Safe torque off (STO): True With safety function Safely Limited Position (SLP): False With safety function Safe Direction (SDI): False Protection type: Thermal protection: motor; Safe torque off: motor; Motor phase break: motor; Thermal protection: drive; Safe torque off: drive; Overheating: drive; Overcurrent between output phases and earth: drive; Overload of output voltage: drive; Short-circuit protection: drive; Motor phase break: drive; Overvoltages on the DC bus: drive; Line supply overvoltage: drive; Line supply undervoltage: drive; Line supply phase loss: drive; Overspeed: drive; Break on the control circuit: drive Quantity per set: 1 Width: 226 mm Height: 673 mm Depth: 271 mm Product weight: 14.3 kg Insulation resistance: > 1 MOhm 500 V DC for 1 minute to earth Noise level: 63.5 dB conforming to 86/188/EEC Pollution degree: 2 conforming to IEC 61800-5-1 Vibration resistance: 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 5…95 % without condensation conforming to IEC 60068-2-3 Ambient air temperature for operation: -15…50 °C (without derating); 50…60 °C (with derating factor) Operating altitude: <= 1000 m without derating; 1000...4800 m with current derating 1 % per 100 m Operating position: Vertical +/- 10 degree Product certifications: DNV-GL; ATEX zone 2/22; CSA; TÜV; UL; ATEX INERIS Marking: CE Standards: UL 508C; IEC 61800-3; IEC 61800-3 environment 1 category C2; EN/IEC 61800-3 environment 2 category C3; IEC 61800-5-1; IEC 61000-3-12; IEC 60721-3; IEC 61508; IEC 13849-1 Maximum THDI: <48 % from 80...100 % of load conforming to IEC 61000-3-12 Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5; Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Environmental class (during operation): Class 3C3 according to IEC 60721-3-3; Class 3S3 according to IEC 60721-3-3 Maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms Maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz Permitted relative humidity (during operation): Class 3K5 according to EN 60721-3 Volume of cooling air: 240 m3/h Overvoltage category: III Regulation loop: Adjustable PID controller Ambient air transport temperature: -40…70 °C Ambient air temperature for storage: -40…70 °C Number of Units in Package 1: 1 Country of origin: IN Warranty (in months): 18 With control element: Yes Number of digital inputs: 6 Number of analogue inputs: 3 Number of analogue outputs: 2 Supporting protocol for LON: No Number of HW-interfaces industrial Ethernet: 1 Number of HW-interfaces RS-485: 1 With optical interface: No Supporting protocol for TCP/IP: Yes Supporting protocol for ASI: No Supporting protocol for PROFIBUS: Yes Supporting protocol for CAN: No Supporting protocol for INTERBUS: No Supporting protocol for KNX: No Supporting protocol for Modbus: Yes Supporting protocol for Data-Highway: No Supporting protocol for DeviceNet: Yes Supporting protocol for SUCONET: No Supporting protocol for other bus systems: No With PC connection: No Supporting protocol for SERCOS: No Supporting protocol for INTERBUS-Safety: No Mains voltage: 200–240 V Mains frequency: 50/60 Hz Type of converter: U converter Number of phases output: 3 Number of phases input: 3 Integrated breaking resistance: No Application in industrial area permitted: Yes Application in domestic- and commercial area permitted: Yes Max. output frequency: 500 Hz Max. output at linear load at rated output voltage: 22 kW Max. output at quadratic load at rated output voltage: 22 kW Relative symmetric net voltage tolerance: 10 % Relative symmetric net frequency tolerance: 5 % Supporting protocol for AS-Interface Safety at Work: No Supporting protocol for DeviceNet Safety: No Supporting protocol for EtherNet/IP: Yes Supporting protocol for Foundation Fieldbus: No Supporting protocol for PROFINET CBA: No Supporting protocol for PROFINET IO: Yes Supporting protocol for PROFIsafe: No Supporting protocol for SafetyBUS p: No Max. output voltage: 240 V Nominal output current I2N: 92.6 A Supporting protocol for BACnet: No

HS Code

8504.40

• EAN 3606480701504
• SAP 1000659384
• Code 8486170
