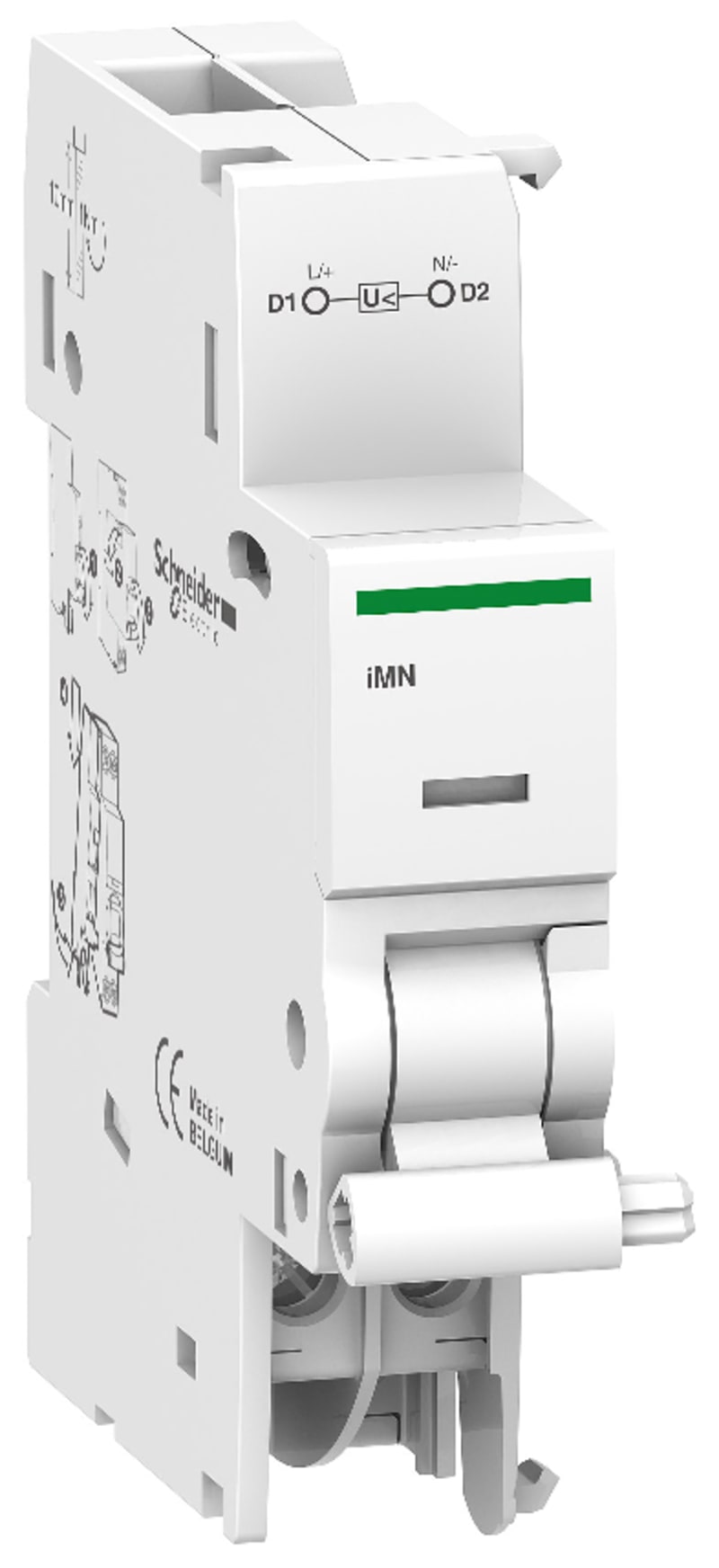

Schneider Electric Undervoltage release, ACTI9 iMN, 24V AC or DC A9A27108

Schneider Electric A9A27108 ACTI9 IMN 24VAC / 24VDC Undervoltage release.

Manufacturer part number (MPN)

A9A27108

EAN / GTIN

3606485441474

Sales unit

pcs

Package quantity

8 pcs

Voltage

24 V AC

range of product

Acti9

Product or component type

Undervoltage release

Device short name

iMN

Device application

Protection

[Uc] control circuit voltage

24 V AC 50/60 Hz; 24 V DC

Control type

Standard

9 mm pitches

2

Protection type

Undervoltage

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Red indicator light on the front face

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top and bottom: YES

Height

85 mm

Width

17.5 mm

Depth

73 mm

Product weight

69 g

Colour

White

Connections - terminals

Clamp terminal (bottom) - 1 cable(s) 1…6 mm² - rigid without cable end; Clamp terminal (bottom) - 1 cable(s) 0.5…4 mm² - flexible without cable end; Clamp terminal (bottom) - 2 cable(s) 1…2.5 mm² - rigid without cable end; Clamp terminal (bottom) - 2 cable(s) 1…2.5 mm² - rigid with cable end

Wire stripping length

10 mm for bottom connection

Tightening torque

1 N.m bottom

Standards

EN/IEC 60947-1

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Warranty (in months)

18

Function

Under voltage coil

Voltage type

AC/DC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

1

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Under voltage coil

Voltage type for actuating

AC/DC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

Country of origin

Belgium

HS Code

8536.30

• EAN 3606485441474
• SAP 1200542347
• Code 82708911
