RS16/ML P red POLAR WHITE
Pricing
Request a quote
We reply within 24 hours
Product Description

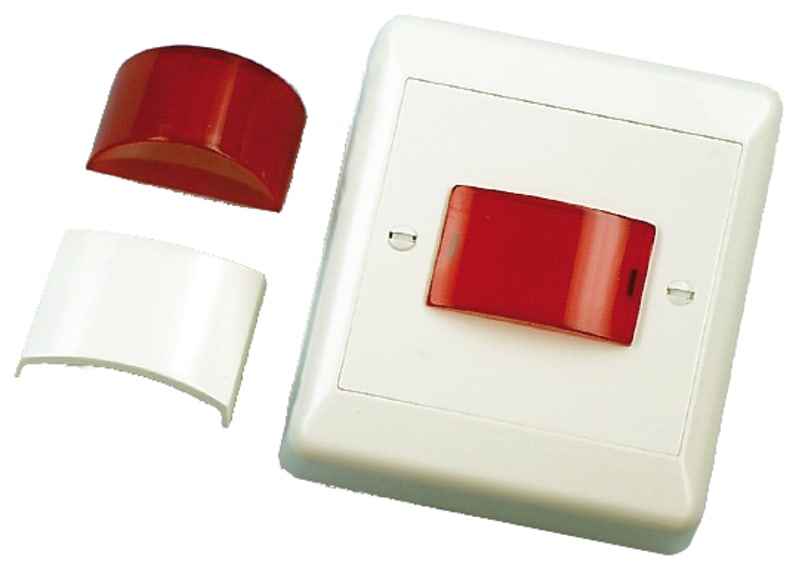

Schneider Electric EKO06691 RS Polar-white/ML P red POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- EKO06691
- EAN / GTIN
- 7020160669100
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Assembly arrangement
- Complete device
- Colour
- White
- Halogen free
- Yes
- Lamp holder
- None
- Surface protection
- Untreated
- Max. lamp power
- 4.5 W
- Material quality
- Thermoplastic
- Colour light source
- Red
- Material
- Plastic
- Lamp type
- LED not exchangeable
- Type of fastening
- Screw mounting
- RAL-number (similar)
- 9010
- Application as button
- No
- With light source
- Yes
- Transparent
- No
- Surface finishing
- Glossy
- With flashlight
- No
- With exchangeable symbol
- No
- Suitable for degree of protection (IP)
- IP21
- With fixed symbol/imprint
- No
- Device width
- 71 mm
- Device height
- 84 mm
- Device depth
- 44 mm
- Number of modules (module system)
- 1
- Min. depth of built-in installation box
- 18 mm
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7020160669100
- SAP 1000518796
- Code 8405223
Product Documentation
