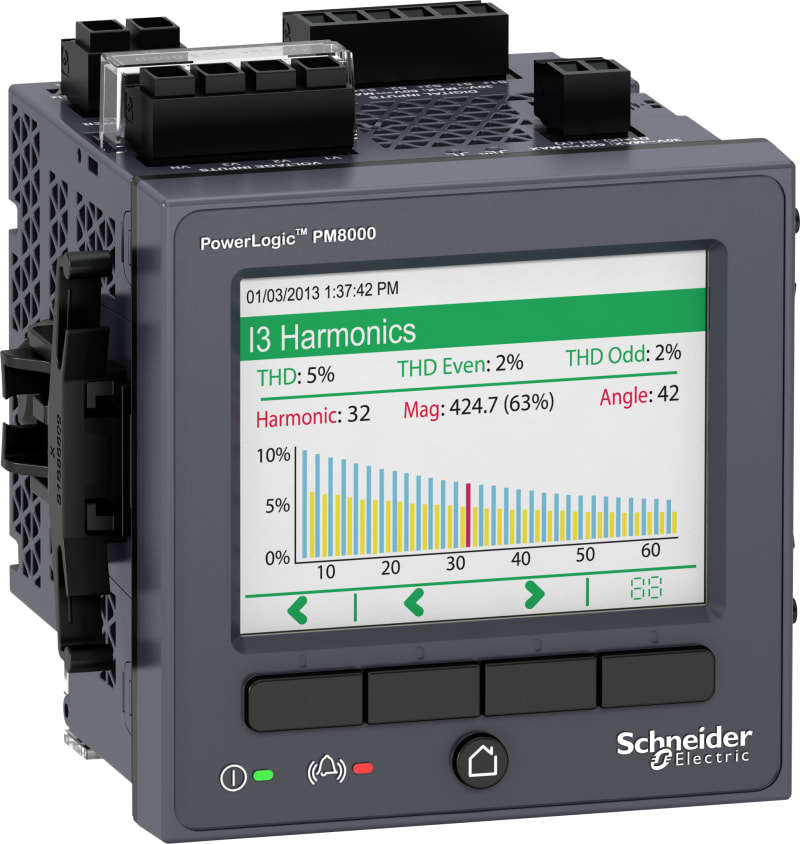

Schneider Electric PowerLogic PM8000 - PM8240 Panel mount meter - intermediate metering METSEPM8240

Schneider Electric METSEPM8240 PM8240 advanced power analyser for flush (panel) mounting.

Manufacturer part number (MPN)

METSEPM8240

EAN / GTIN

3606480701931

Sales unit

pcs

Package quantity

8 pcs

Range

PowerLogic

Product name

PowerLogic PM8000

Product or component type

Power meter

Device short name

PM8240

Market segment

Buildings large building cost management: billing: sub feeder; Buildings small building network management: main incomer; Buildings medium building network management: main incomer; Buildings large building network management: main incomer; Buildings large building network management: sub feeder; Buildings multi-site network management: main incomer; Buildings multi-site network management: sub feeder; Data center network management: main incomer; Data center network management: sub feeder; Healthcare network management: main incomer; Healthcare network management: sub feeder; Industry network management: main incomer; Industry network management: sub feeder; Utility: sub feeder

model type

Standard

Power quality analysis

conforming to EN 50160: 2010 compliance report; conforming to IEEE 519: 2014 compliance report; conforming to IEC 61000-4-30: class S power quality measurement; up to the 63rd harmonic; harmonic distortion; waveform capture; voltage sag and swell detection; programmablity (logic and math functions); conforming to IEC 62586 power quality monitoring; disturbance direction detection; rapid voltage change

Device application

Power monitoring; WAGES metering

Type of measurement

Current; Voltage; Frequency; Active and reactive power total; Apparent power total; Power factor total; Active and reactive power per phase, rms; Apparent power per phase, rms; Power factor per phase, rms

supply voltage

90...415 V AC 45...65 Hz +/- 10 %; 110...415 V DC +/- 10 %

Network frequency

50 Hz; 60 Hz

[In] rated current

1 A; 5 A; 10 A

Poles description

3P + N; 3P; 1P + N

Power consumption in VA

16 VA at 230 V AC

Display type

Colour TFT LCD

Display resolution

320 x 240 pixels QVGA

Sampling rate

256 samples/cycle

Measurement current

50…10000 mA

Analogue input type

Voltage (impedance 5 MOhm); Current (impedance 0.3 mOhm)

Measurement voltage

57…400 V AC 42...69 Hz between phase and neutral; 100…690 V AC 42...69 Hz between phases

Frequency measurement range

42…69 Hz

Number of inputs

3 digital 30 V AC; 3 digital 60 V DC

Measurement accuracy

Current +/- 0.1 %; Voltage +/- 0.1 %; Active energy +/- 0.2 %

Accuracy class

Class 0.2S active energy conforming to IEC 62053-22; Class 0.2 active energy conforming to ANSI C12.20; Class 0.2 active power conforming to IEC 61557-12; Class 0.5S reactive energy conforming to IEC 62053-24; Class 0.5 power factor conforming to IEC 61557-12; Class 0.2 voltage conforming to IEC 61557-12; Class 0.2 current conforming to IEC 61557-12

Number of outputs

1 pulse

Information displayed

Voltage; Current; Frequency; Power; Energy consumption; Harmonic distortion

Communication port protocol

Modbus RTU at 115 kbauds - 2-wire; ION at 115 kbauds - 2-wire; DNP3; IEC 61850; Modbus TCP/IP; Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s; RSTP 801.1d 2004

Communication port support

ETHERNET; Screw terminal block: RS485

Communication network type

IPv6 (internet protocol)

Data recording

Min/max of instantaneous values; Waveform logs; Sequence of event recording; Time stamping; Alarm logs; Trending/forecasting; Sag and swell logs; Harmonics logs; GPS synchronisation; Data logs; Event logs; 50 data recorders

Memory capacity

512 MB

Web services

Customizable home page; File upload/download via FTP; File upload/download via SFTP; Web server; Alarm notification by e-mail; Viewing of captured waveform (FTP); Viewing of captured waveform (web); HTTPS server

Communication service

SMTP e-mail notification; RSTP support; NTP time synchronization; DHCP; PTP time synchronization

Cybersecurity

Enable/disable communication ports; Password protection; Syslog protocol support; Robust security logs; Port hardening

mounting mode

Flush-mounted

Mounting support

Framework

Installation category

III

Safety Construction

III400…690 V conforming to IEC 61010-1:ed. 3; III400…690 V conforming to EN 61010-1:ed. 3; III347…600 V conforming to UL 61010-1:ed. 3; III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3

Standards

IEC 61557-12; IEC 62052-11; IEC 62053-24; IEC 62053-22; IEEE 1588; IEC 62586-2; IEC 61326-1

Product certifications

CE; CULus; N998

Width

96 mm

Depth

77.5 mm

Height

96 mm

Product weight

581 g

Electromagnetic compatibility

Electrostatic discharge conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test conforming to IEC 61000-4-4; Surge immunity test conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Magnetic field at power frequency conforming to IEC 61000-4-8; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11; Immunity to impulse waves conforming to IEC 61000-4-12; Conducted and radiated emissions conforming to EN 55022; Conducted and radiated emissions conforming to EN 55011; Conducted and radiated emissions conforming to FCC part 15; Conducted and radiated emissions conforming to ICES-003; Conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579; Surge withstand conforming to IEEE C37.90.1

IP degree of protection

IP54 front: conforming to IEC 60529; IP30 body: conforming to IEC 60529

Relative humidity

5…95 %

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

3000 m

Compatibility code

PM8240

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

13.700 cm

Package 1 Width

13.500 cm

Package 1 Length

18.500 cm

Package 1 Weight

840.500 g

Unit Type of Package 2

S03

Number of Units in Package 2

8

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.124 kg

Country of origin

CA

Warranty (in months)

18

Mounting method

Front mounting

Model

Measurement transformer

Suitable for

Purchase

Type of indication

Digital

Frequency

45–67 Hz

Max. current (Imax)

15 A

Number of positions total (counter)

1

Type of meter

Electronic

Degree of protection (IP)

IP30

Type of interface

RS-485

Energy type

Effective power and reactive power

Tariff type

One-tariff

Tariff control

Internal

Escapement mechanism

No

Calibrated

No

Approval

Domestic

Pulse output

Electrical

Pulse type

D0

Pole type

Three conductor/four conductor

Measurement type load profile

Yes

EEC40 signature

No

With lock code

No

Nominal voltage (Un) N-L

0–347 V

Nominal voltage (Un) L-L

0–600 V

Nominal current (In)

5 A

HS Code

9028.30
