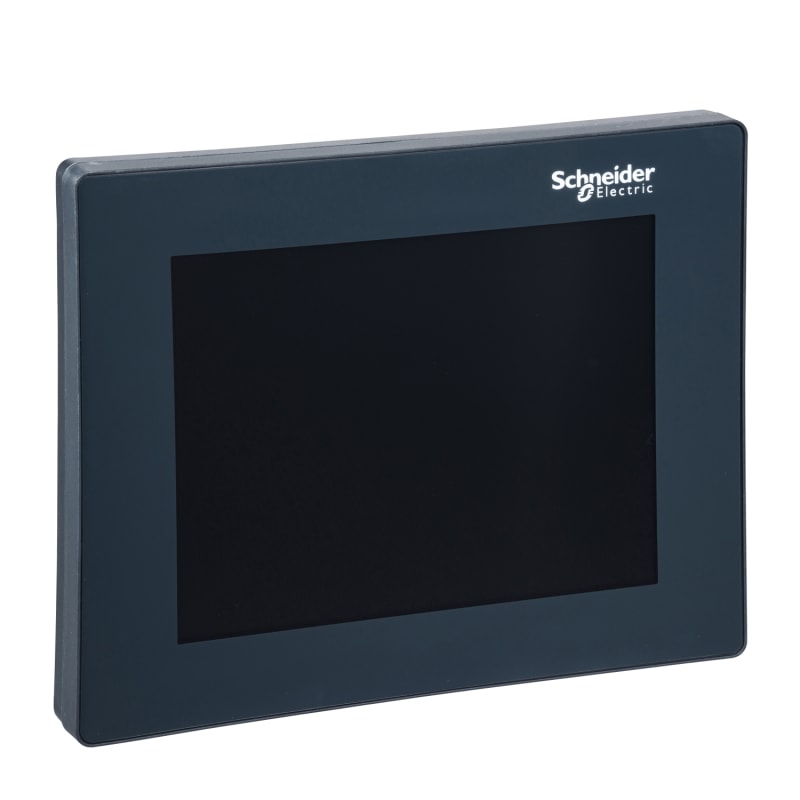

Schneider Electric front display module FDM 128 - 163*129 mm - IP54 LV434128
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV434128 FDM128 is a intellegent ethernet display as henter and shows data from up to 8 komponenter.
Technical Specifications
- Manufacturer part number (MPN)
- LV434128
- EAN / GTIN
- 3606480590191
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Device short name
- FDM128
- Product or component type
- Display module
- Accessory / separate part category
- Display and signalling accessory
- Range compatibility
- MasterPact MTZ; MasterPact NW; MasterPact NT; Compact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact H; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact P; PowerPact PowerPact R; Acti 9 Acti9 Smartlink smart communication module
- Product name
- Enerlin'X FDM
- Function of module
- Remote control; View network; Metering; Display alarm
- Control type
- Remote control
- mounting mode
- Flush mounting
- Mounting support
- Surface mount with kit
- Display type
- Active matrix colour TFT LCD with LED backlight
- Display resolution
- 320 x 240 pixels QVGA
- View angle horizontal x vertical
- 70 x 80°
- [Us] rated supply voltage
- 24 V DC - 15...20 %
- Power consumption in W
- 6.8 W
- Standards
- CE; CSA; UL
- Height
- 129 mm
- Width
- 163 mm
- Depth
- 56.5 mm
- IP degree of protection
- IP54; IP65 front face:
- Ambient air temperature for operation
- -10…55 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 18.200 cm
- Package 1 Length
- 27.000 cm
- Package 1 Weight
- 824.400 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 8
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.995 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480590191
- SAP 1000667127
- Code 8259264
Product Documentation
