DigitalModul Energy pr phase
Pricing
Request a quote
We reply within 24 hours
Product Description

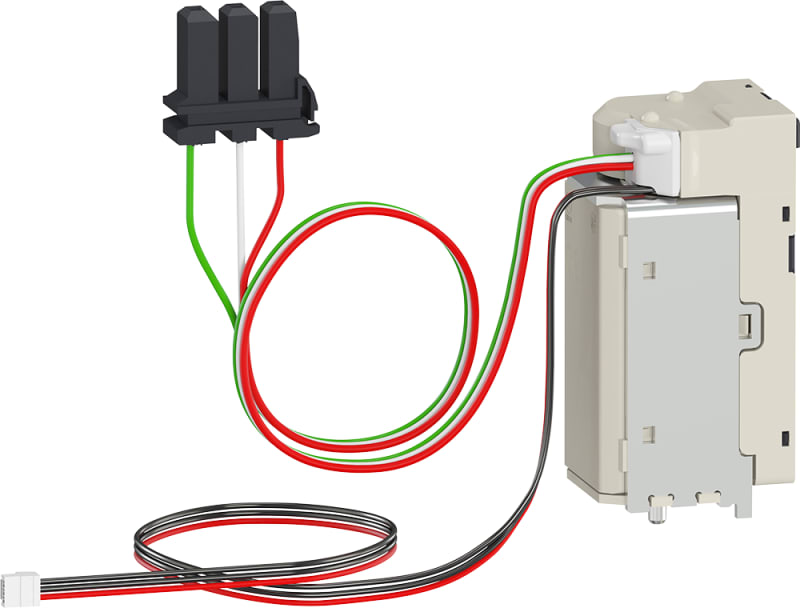

Schneider Electric LV850002 Digital Module Energy pr phase for Micrologic X protection.
Technical Specifications
- Manufacturer part number (MPN)
- LV850002
- EAN / GTIN
- 3606481156228
- Sales unit
- pcs
- Range
- MasterPact
- Product or component type
- Application
- Application description
- Energy per phase
- Range compatibility
- MasterPact MTZ1 circuit breaker; MasterPact MTZ2 circuit breaker; MasterPact MTZ3 circuit breaker
- Product compatibility
- control unit MicroLogic 2.0 X; control unit MicroLogic 3.0 X; control unit MicroLogic 5.0 X; control unit MicroLogic 6.0 X; control unit MicroLogic 7.0 X; control unit MicroLogic 3.0 Xi; control unit MicroLogic 5.0 Xi; control unit MicroLogic 6.0 Xi
- Function of module
- Metering
- Service description
- Calculate and display the total active, reactive and apparent energy per phase; Calculate and display energy imported and exported at the point of measure
- Service benefits
- Follow energy per phase when having large amount of unbalanced loads; Follow energy per phase when different usages or tenant are supplied
- Energy management
- Measurement ,energy per phase (option)
- Measurement accuracy
- Energy (P,Q,S) +/- 1 % of the measuring range
- Software name
- EcoStruxure Power Commission
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481156228
- SAP 1200050647
- Code 81878763
Product Documentation
