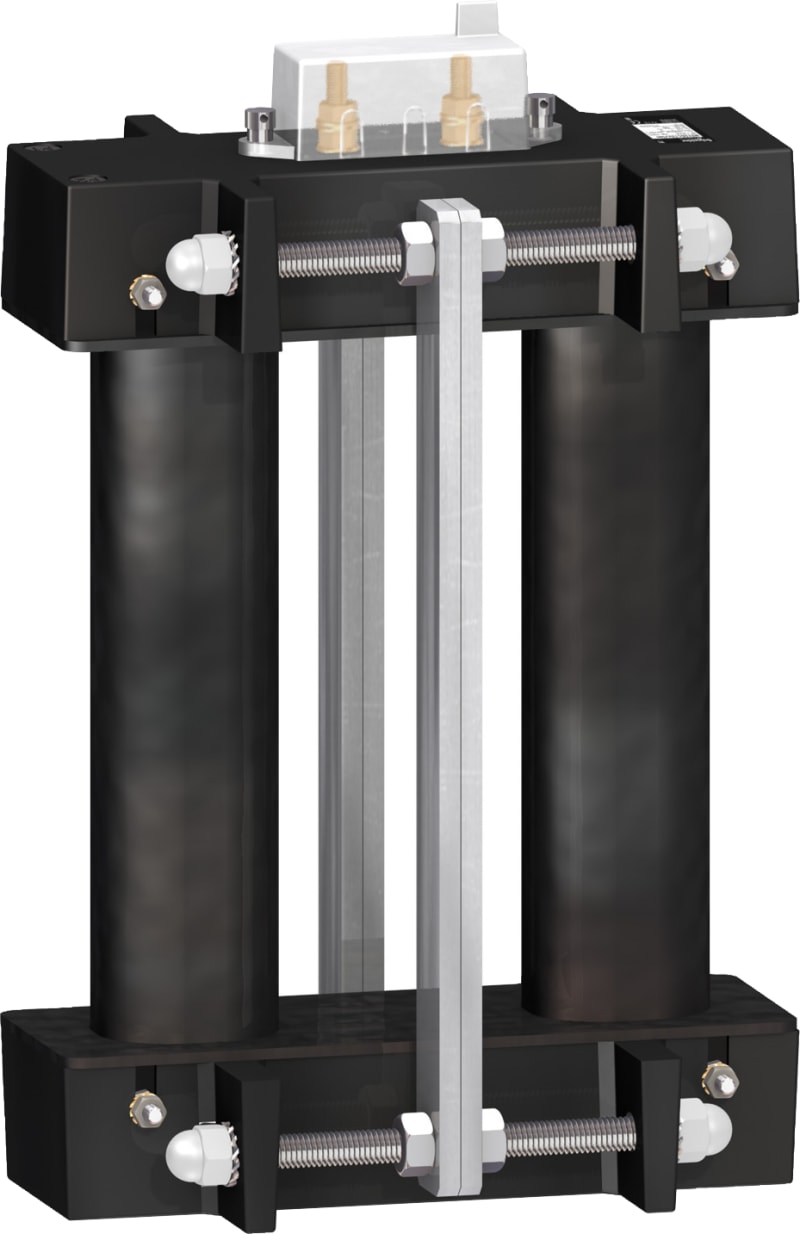

Current Transformer. 6000/5 VERT. 55X165

Schneider Electric METSECT5VV600 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5VV600

EAN / GTIN

3303431123827

Sales unit

pcs

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 70 VA

[In] rated current

6000 A

Current transformer type

Tropicalised for busbar; Solid core

Current transformer ratio

6000/5

[Ith] conventional free air thermal current

60 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

10

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

mounting mode

Insulated locking screw

Mounting support

Busbar

Width

Outside: 175 mm; Inner: 55 mm

Height

Outside: 242 mm; Inner: 165 mm

Depth

Total : 110 mm

Product weight

3.4 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Opening of bars

165 x 55

Sealing

With

Standards

IEC 61869-2; VDE 0414

Product certifications

EAC; CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…50 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.5 cm

Package 1 Width

28.5 cm

Package 1 Length

30.5 cm

Package 1 Weight

4.343 kg

Unit Type of Package 2

S03

Number of Units in Package 2

2

Package 2 Height

30.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

9.173 kg

Country of origin

IT

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

6000 A

Rated secondary current

5 A

Rated secondary apparent power

70 VA

Overcurrent limiting factor

FS 10

Calibrated

No

With contact protection

No

Height opening

165 mm

Width opening

55 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31

• EAN 3303431123827
• SAP 1000632769
• Code 8311492
