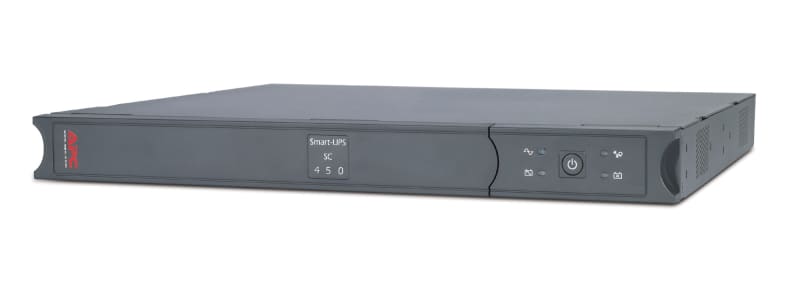

Schneider Electric APC -UPS SC 450VA 230V - 1U Rackmou

Schneider Electric SC450RMI1U APC -UPS SC 450VA 230V - 1U Rackmou.

Manufacturer part number (MPN)

SC450RMI1U

EAN / GTIN

0731304222712

Sales unit

pcs

Voltage

230 V

Presentation

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications

Main input voltage

230 V AC 1 phase

Input connection

IEC 60320 C14

Efficiency at full load

151...302 V adjustable; 195...265 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

230 V AC 1 phase

Rated power in W

280 W

Rated power in VA

450 VA

Output connection

4 IEC 60320 C13; 2 IEC Jumpers

Harmonic distortion

Less than 5 % at full load

Maximum configurable power in VA

450 VA

Maximum configurable power in W

280 W

Transfer time

4 ms typical : 8 ms maximum

UPS topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Output frequency

47...53 Hz for 50 Hz nominal sync to mains; 57...63 Hz for 60 Hz nominal sync to mains

Replacement battery

RBC18

Run Time

View Runtime Graph

Battery capacity

9.0 Ah

Battery type

Lead-acid internal included

Emergency power off

Optional

Free slot

0

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

Serial port; USB port

Data line protection

RJ45 10/100 Base-T Ethernet protection

Surge energy rating

320 J

Noise filtering

Full time multi-pole noise filtering : 0.7% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

1U

Color

Grey

Height

44 mm

Width

432 mm

Depth

383 mm

Product weight

10.18 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

No

Provided equipment

User manual; Rack mounting brackets; Smart UPS signalling RS-232 cable; CD with software

Number of power modules

0

Number of power module filled slots

0

Number of power module free slots

0

Additional specification

Entry level

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; EAC; GOST; TISI; VDE

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

38 dBA

Heat dissipation

38 Btu/h

Operating altitude

0...10000 ft

Battery voltage

12 V

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

5 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

22 W rated

Number of Units in Package 1

1

Number of Units in Package 2

32

Country of origin

PH

Warranty (in months)

24

HS Code

8504.40

• EAN 0731304222712
• SAP 1200723262
• Code 83845714
