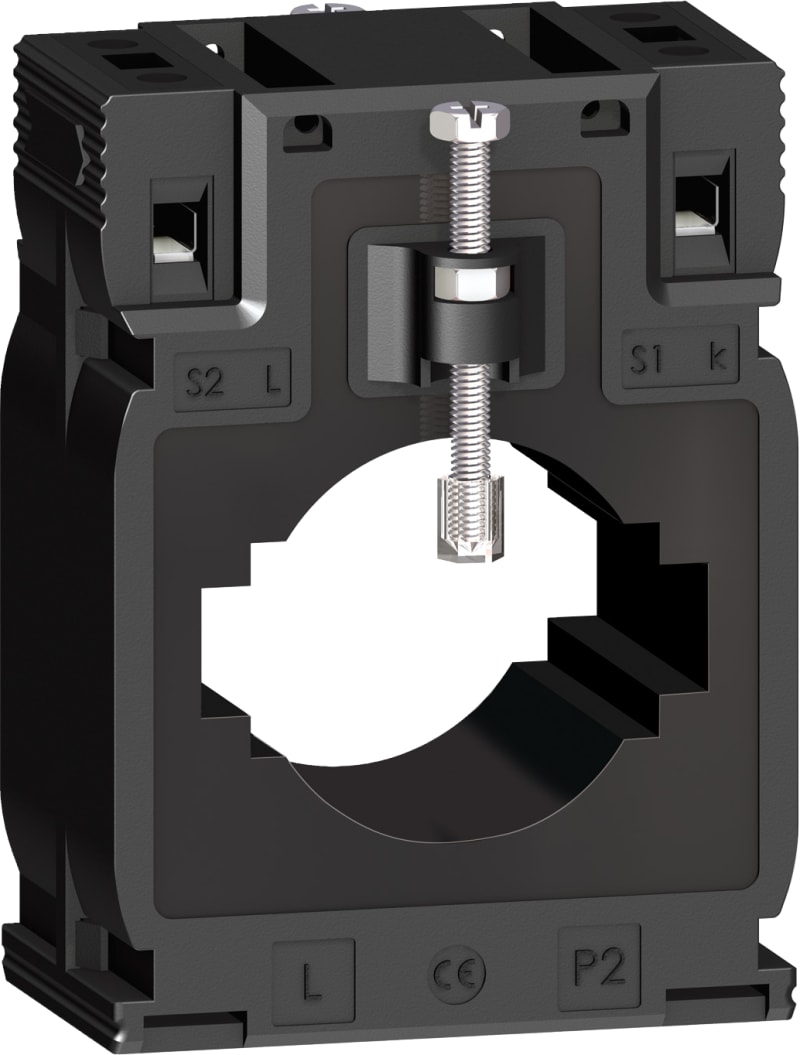

Schneider Electric current transformer tropicalised DIN mount 600 5 cables d. 40 - bars 12X50 20X40 METSECT5MD060

Schneider Electric METSECT5MD060 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5MD060

EAN / GTIN

3606480618871

Sales unit

pcs

Diameter

40 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 6 VA; Class 1 at 8 VA

[In] rated current

600 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

600/5

[Ith] conventional free air thermal current

36 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

mounting mode

Clip-on; By screws; Insulated locking screw

Mounting support

DIN rail; Busbar; Mounting plate

Width

Outside: 70 mm

Height

Outside: 95 mm

Depth

Frame : 45 mm; Total : 65 mm

Product weight

0.349 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

40 mm

Opening of bars

50.5 x 12.5; 40.5 x 20.5

Sealing

Without

Standards

IEC 61869-2; VDE 0414

Product certifications

EAC; CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

33

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

600 A

Rated secondary current

5 A

Rated secondary apparent power

8 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

20 mm

Width opening

40 mm

Opening diameter

40 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
