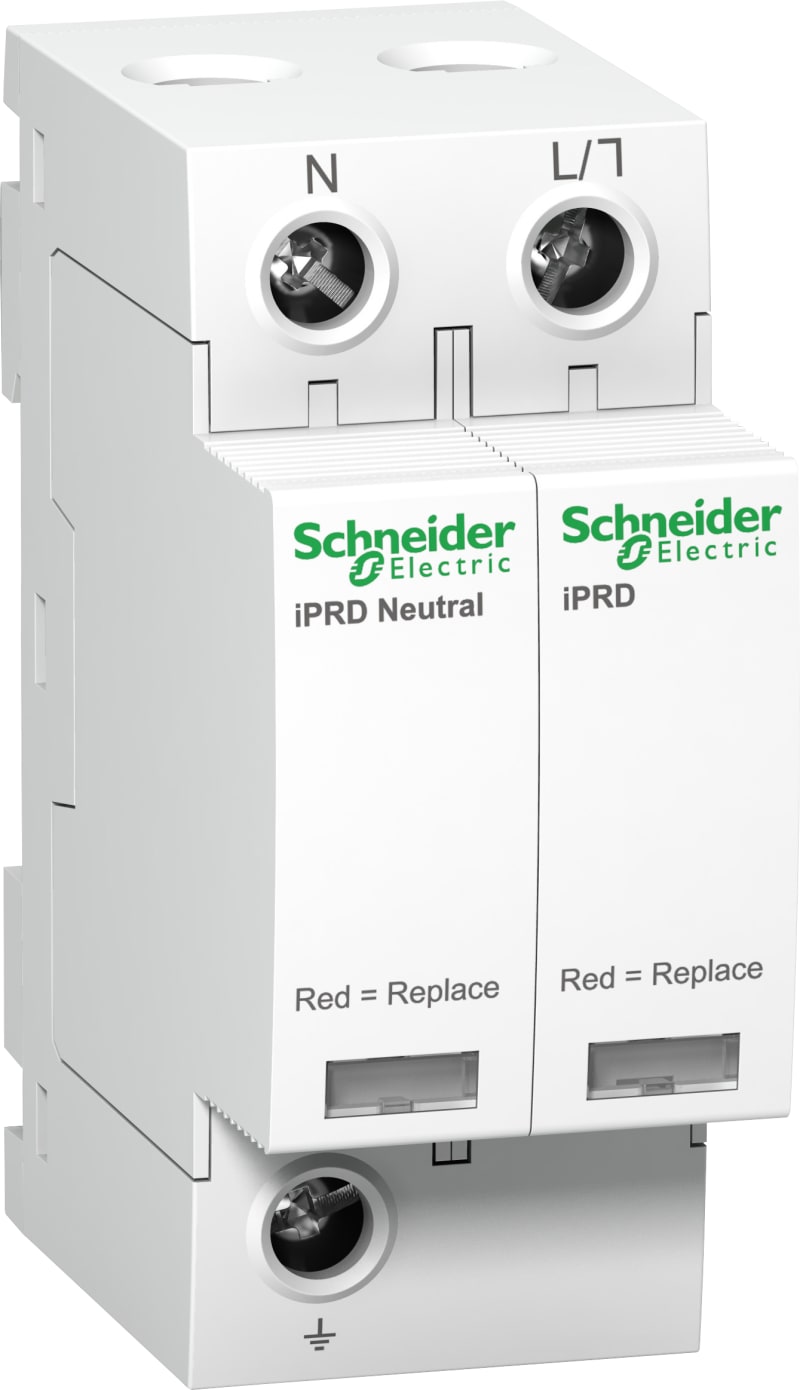

Schneider Electric IPRD40 modular surge arrester - 1P + N - 350V A9L40500

Schneider Electric A9L40500 Acti9 iPRD40 Surge protection device 350V 1P+N.

Manufacturer part number (MPN)

A9L40500

EAN / GTIN

3606480506413

Sales unit

pcs

Package quantity

6 pcs

Number of poles

1P+N

Range of product

IPRD

Product name

Acti9 iPRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD40

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Quality labels

KEMA-KEUR; NF

Poles description

1P + N

Remote signalling

Without

Surge arrester type

Electrical distribution network

Earthing system

TN-S; TT

Surge arrester class type

Type 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 15 kA (L/PE); Common mode: 15 kA (N/PE); Differential mode: 15 kA (L/N)

Maximum discharge current

Common mode: 40 kA L/PE; Common mode: 40 kA N/PE; Differential mode: 40 kA L/N

[Uc] maximum continuous operating voltage

Common mode: 260 V N/PE; Common mode: 350 V L/PE; Differential mode: 350 V L/N

Maximum [Up] voltage protection level

Common mode 1.4 kV type 2 N/PE; Differential mode 1.4 kV type 2 L/N

[Out] temporary overvoltage

337 V L/N 5 s withstand; 1200 V N/PE 200 ms safe failure mode; 442 V L/PE 5 s withstand; 1453 V L/PE 200 ms safe failure mode

Disconnector device type

Associated circuit breaker iC60H 40 A curve C - Icu 15 kA; Associated circuit breaker IC60N 40 A curve C - Icu 10 kA; Associated circuit breaker NG125H 40 A curve C - Icu 36 kA; Associated circuit breaker NG125L 40 A curve C - Icu 50 kA; Associated circuit breaker NG125N 40 A curve C - Icu 25 kA; Associated fuse gG 63 A - Icu 15 kA; Associated fuse gG 80 A - Icu 50 kA

Mounting mode

Clip-on (DIN rail)

9 mm pitches

4

Height

85 mm

Width

36 mm

Depth

69 mm

Product weight

0.211 kg

Colour

White (RAL 9003)

[Ipe] Ground residual current

0.6 mA; 0.003 mA

Connections - terminals

Tunnel type terminal (downside) 2.5…35 mm²; Tunnel type terminal (upside) 2.5…35 mm²

Tightening torque

2.5 N.m

Compatibility code

IPRD40

IK degree of protection

IK03 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

54

Warranty (in months)

18

System configuration DC

No

System configuration IT

No

System configuration TN

No

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Number of conductors (without earthing)

1

Nominal discharge surge current (8/20)

15 kA

Max. discharge surge current (8/20)

40 kA

Short-circuit-proof

Yes

Nominal voltage AC

350 V

Max. continuous voltage AC

350 V

Voltage protection level

1.4 kV

Voltage protection level L-N

1.4 kV

Voltage protection level N-PE

1.4 kV

Max. overcurrent protection device, series connection (fuse)

80 A

Short-circuit breaking capacity (Isccr)

50 kA

Integrated short-circuit protection

No

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

2 modular spacing

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

35 mm²

With remote signalling contact

No

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

Country of origin

China

HS Code

8536.30
