Easy UPS 1S 10KVA RailKit
Pricing
Request a quote
We reply within 24 hours
Product Description

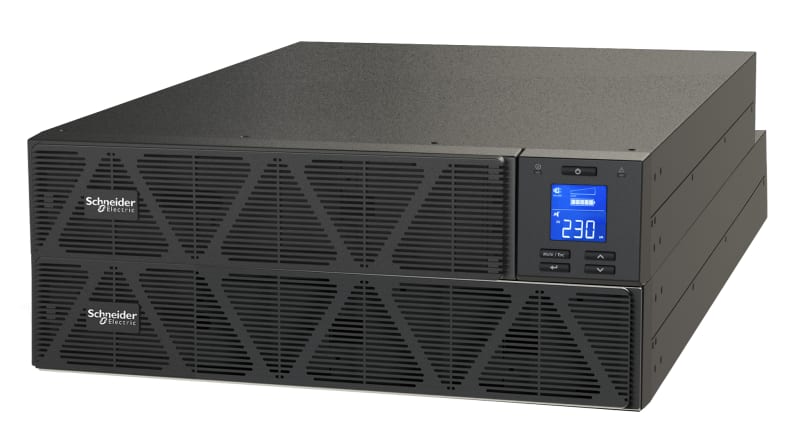

Schneider Electric Easy UPS SRVS RM 10000VA 230V with RailKit & external batter.pack
Technical Specifications
- Manufacturer part number (MPN)
- SRVS10KRIRK
- EAN / GTIN
- 0731304346319
- Sales unit
- pcs
- Presentation
- For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 110...300 V half load; 176...300 V full load
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 10000 W
- Rated power in VA
- 10000 VA
- Output connection
- Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- 1 %
- Maximum configurable power in VA
- 10000 VA
- Maximum configurable power in W
- 10000 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 94 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid external included
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Number of rack unit
- 4U
- Color
- Black (RAL 7010)
- Height
- 173 mm
- Width
- 438 mm
- Depth
- 710 mm
- Product weight
- 69 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- USB compatible
- Yes
- Mounting position
- Horizontal
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS 1Ph On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…60 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 58 dBA
- Heat dissipation
- 2128 Btu/h
- Operating altitude
- 0...3000 m
- Battery voltage
- 192 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 5 h
- Battery life
- 3…5 year(s)
- Battery charging power
- 235 W rated
- Battery power in VAh
- 1599 VAh runtime
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 48.500 cm
- Package 1 Width
- 60.000 cm
- Package 1 Length
- 83.600 cm
- Package 1 Weight
- 79.000 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304346319
- SAP 1200446178
- Code 82517573
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric standard motor mechanism module MT250, ComPact NSX250, 250 VDC LV431546
Schneider Electric
Schneider Electric LC2D40AEHE TeSys Deca Advanced Reversing Contactor, 3-Pole 40 A AC-3, EverLink, 48–130 V AC/DC Coil
Schneider Electric

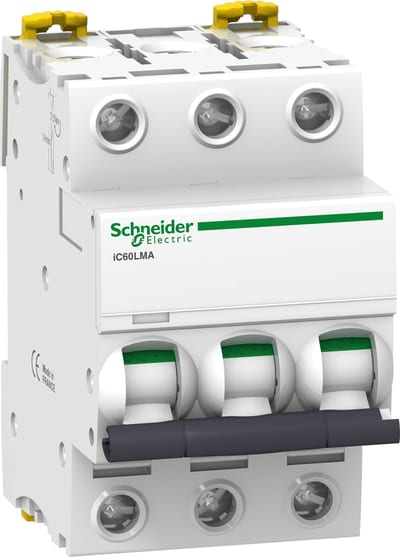

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC60L, 3P, 6.3A, MA curve, 20KA (IEC/EN 60947-2) A9F90376
Schneider Electric

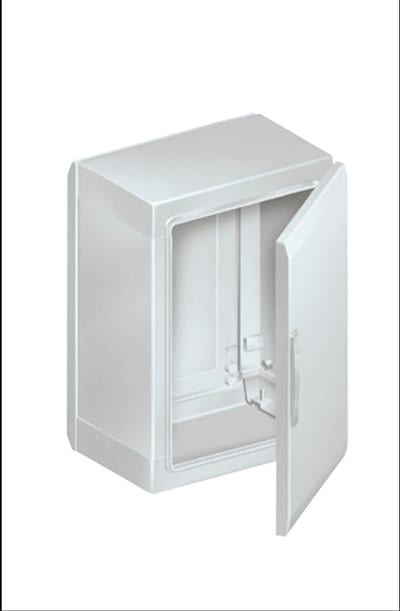

Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 1000X500X320 IP65 NSYPLA1053G
Schneider Electric

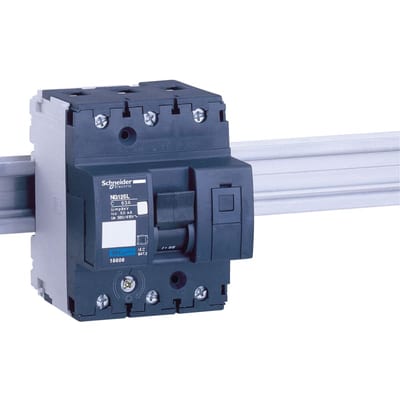

NG125L/C 63-3 Modular Power Switch
18806
Schneider Electric

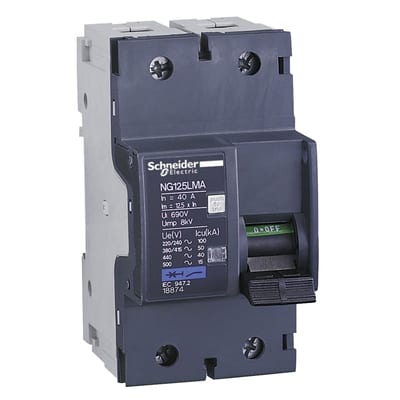

MCB NG125LMA 2P 16A (18872)
Schneider Electric

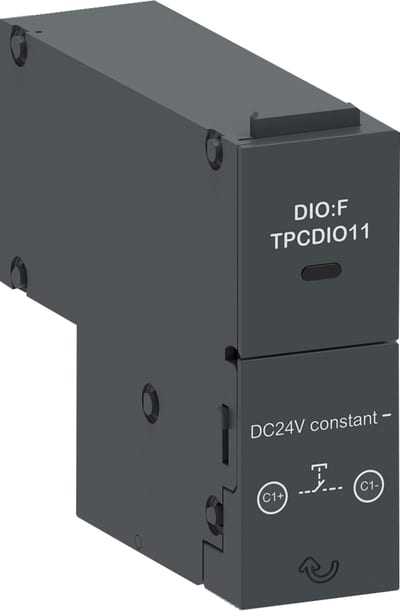

Schneider Electric function module, TransferPacT, Fire protection,24VDC constant, input signal TPCDIO11
Schneider Electric

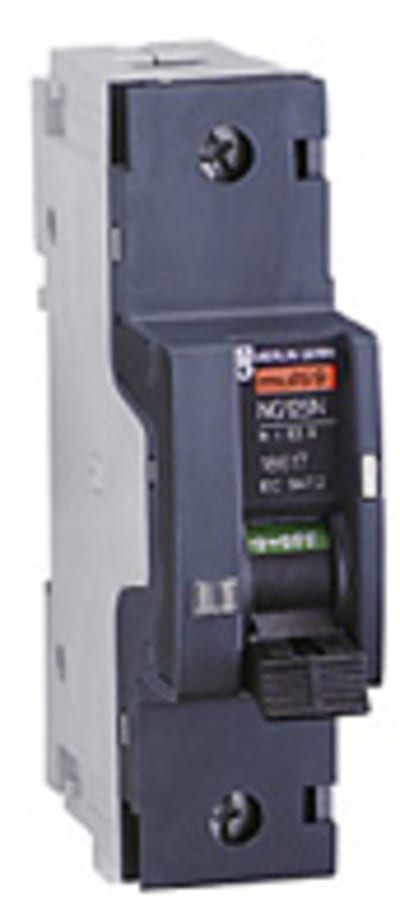

NG125N/C 10-1 Modular Power Switch
