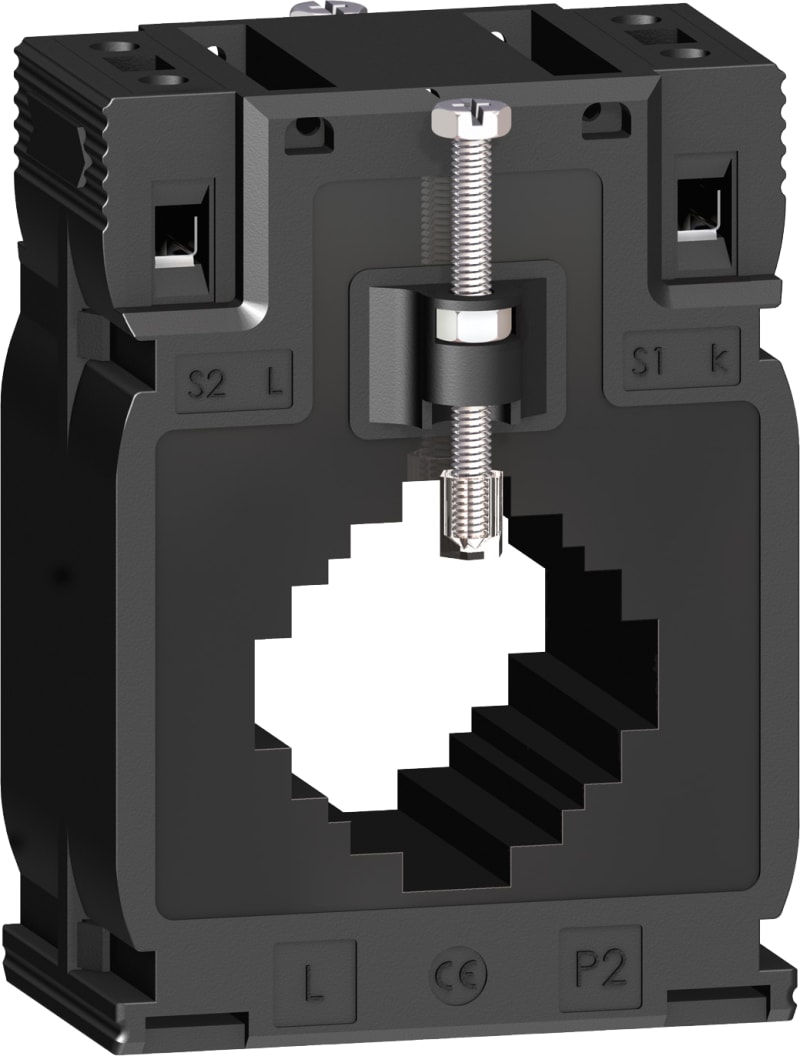

Current Transformer 600/5 KAB,Ø32+Rail

Schneider Electric METSECT5MC060 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5MC060

EAN / GTIN

3606480618864

Sales unit

pcs

Diameter

32 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 12 VA; Class 1 at 15 VA

[In] rated current

600 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

600/5

[Ith] conventional free air thermal current

36 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

By screws; Clip-on; Insulated locking screw

Mounting support

DIN rail; Mounting plate; Busbar

Width

Outside: 70 mm; Inner: 41 mm

Height

Outside: 95 mm; Inner: 41 mm

Depth

Frame : 45 mm; Total : 65 mm

Product weight

0.449 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

32 mm

Opening of bars

32.5 x 20.5; 25.5 x 25.5; 40.5 x 10.5

Sealing

Without

Standards

VDE 0414; IEC 61869-2

Product certifications

CE; EAC

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

25

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

600 A

Rated secondary current

5 A

Rated secondary apparent power

15 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

41 mm

Width opening

41 mm

Opening diameter

32 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31

• EAN 3606480618864
• SAP 1000632750
• Code 8147074
