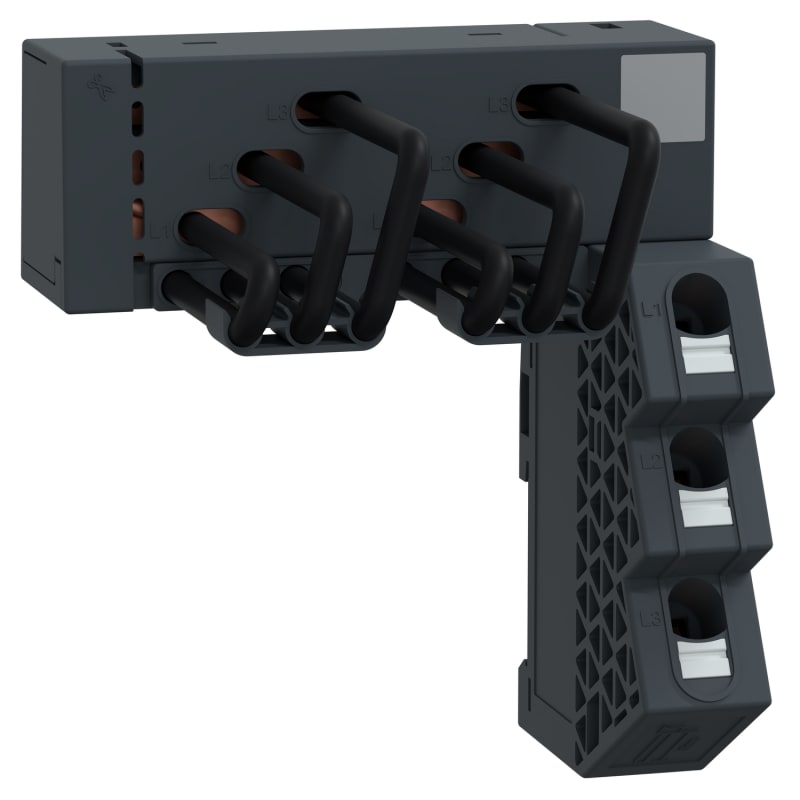

2 avgan. RF busbar GV2 63A Snap-In

Schneider Electric GV2G2RA — TeSys motor protection circuit breaker. Manual motor starter with thermal and magnetic protection. Linergy FT, busbar, connection hs, 63A, 2 branches, 45 mm pitch, for Snap-In GV2ME.

Manufacturer part number (MPN)

GV2G2RA

EAN / GTIN

3606487863991

Sales unit

pcs

Package quantity

6 pcs

Rated current

63 A

Range

Linergy

Product name

FT

Device short name

GV2G

Product or component type

Comb busbar

Accessory / separate part category

Connection accessory

Poles description

3P

Range compatibility

TeSys Deca; TeSys GV2

Product compatibility

GV2ME...A

Fixing mode

35 mm symmetrical DIN rail: clipped

Number of tap-offs

2

Connections - terminals

Push-in terminals: 1 cable(s) 1.5…16 mm² - solid; Push-in terminals: 1 cable(s) 1.5…25 mm² - flexible without cable end; Push-in terminals: 1 cable(s) 1.5…16 mm² - flexible with cable end; Push-in terminals: 1 cable(s) (16 AWG...10 AWG) - solid; Push-in terminals: 1 cable(s) (16 AWG...6 AWG) - stranded

[Ith] conventional free air thermal current

63 A

Product certifications

CE; cULus

[Ui] rated insulation voltage

690 V

Connection pitch

45 mm

Width

113 mm

Product weight

0.41 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Warranty (in months)

18

Colour

Black

Insulated

Yes

Number of phases

3

Rated permanent current Iu

63 A

Number of poles

3

Length

115 mm

Width in number of modular spacings

45

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

No

Suitable for number of devices

2

Max. rated operation voltage Ue

690 V

Module width

45 mm

Can be cut to size

No

Country of origin

China

HS Code

8536.90
