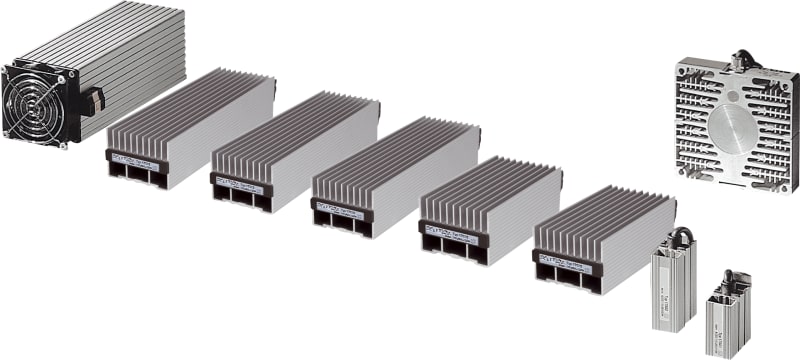

Schneider Electric ClimaSys heating resistance 200W, 230V aluminium slim NSYCRS200W230V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCRS200W230V HEATING ELEMENT 200W 230V, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCRS200W230V
- EAN / GTIN
- 3606480152412
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Voltage
- 230 V
- Power
- 200 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater with fan
- Power range
- 200 W
- Input voltage
- 230 V AC 50/60 Hz
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium
- Height
- 140 mm
- Width
- 80 mm
- Depth
- 20 mm
- Condition of use
- Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Country of origin
- FR
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- Yes
- Degree of protection (IP)
- IP20
- Rated power
- 200 W
- Continuous heating power at 10 °C
- 200 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480152412
- SAP 1000089030
- Code 8881653
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 0.5...10MIN, 100...240V AC DC XB5DTGM4
Schneider Electric
RAIL 100A 5M 20 Outlet
KSA100ED45020
Schneider Electric
Schneider Electric Cable tie, Thorsman installation material, 300X4.8MM, black IMT46420
Schneider Electric
2 avgan. RF busbar GV2 63A Snap-In
GV2G2RA
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 3P+N, 10A, C curve, 6000A, A type, 30MA A9DC3710
Schneider Electric
OCA relay card 16 outputs FDP
FFS00702531
Schneider Electric
OL MINI 1835 Internal corner Black
ISM14461
Schneider Electric

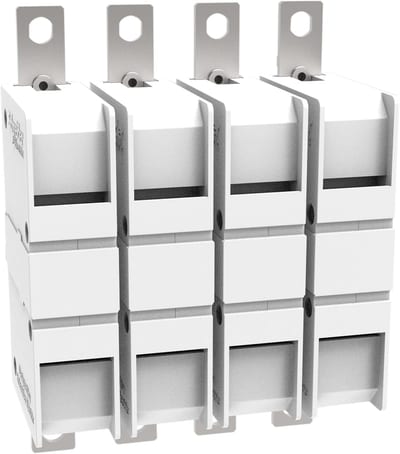

Contact set 4P LC1G400-500
