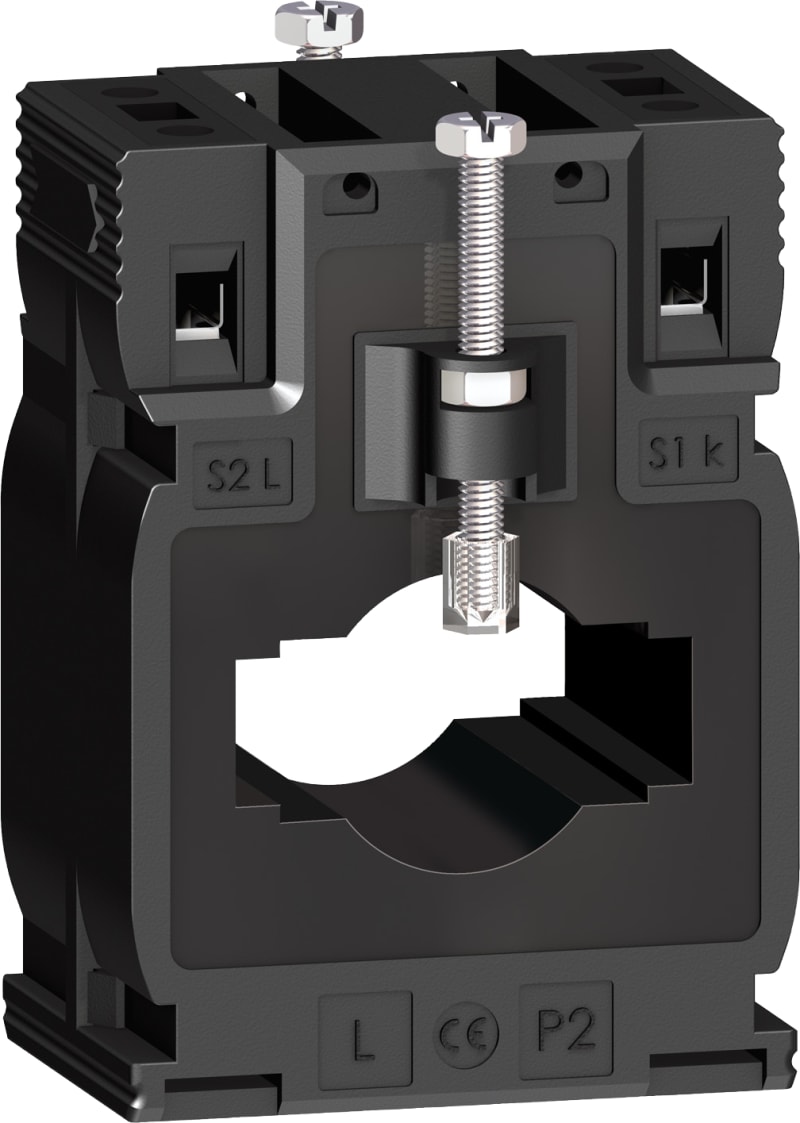

Schneider Electric current transformer tropicalised DIN mount 300 5 cables d. 26 - bars 12X40 15X32 METSECT5MB030

Schneider Electric METSECT5MB030 CT Current transformers with 5 A secondary current used together with an ammeter.

Manufacturer part number (MPN)

METSECT5MB030

EAN / GTIN

3606480618796

Sales unit

pcs

Diameter

26 mm

Range

PowerLogic

Product or component type

Current transformer

Product name

CT

Secondary current

5 A

Accuracy class

Class 0.5 at 4 VA; Class 1 at 6 VA

[In] rated current

300 A

Current transformer type

Tropicalised for busbar and cable; Solid core

Current transformer ratio

300/5

[Ith] conventional free air thermal current

18 kA

Dynamic withstand current

2.5 Ith

Maximum safety factor

5

[Ue] rated operational voltage

< 720 V AC 50/60 Hz

[Ui] rated insulation voltage

3 kV 50 Hz for 1 minute

mounting mode

Clip-on; By screws; Insulated locking screw

Mounting support

Busbar; DIN rail; Mounting plate

Width

Outside: 60 mm

Height

Outside: 85 mm

Depth

Frame : 43 mm; Total : 63 mm

Product weight

0.323 kg

[Uimp] rated impulse withstand voltage

3 kV

Electrical insulation class

Class B

Cable outer diameter

26 mm

Opening of bars

32.5 x 15.5; 40.5 x 12.5

Sealing

Without

Standards

IEC 61869-2; VDE 0414

Product certifications

CE

IP degree of protection

IP20

Relative humidity

0…95 %

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

36

Country of origin

TN

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

300 A

Rated secondary current

5 A

Rated secondary apparent power

6 VA

Overcurrent limiting factor

FS 5

Calibrated

No

With contact protection

No

Height opening

12 mm

Width opening

40 mm

Opening diameter

26 mm

Snap mounting

No

With copper rail

No

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8504.31
