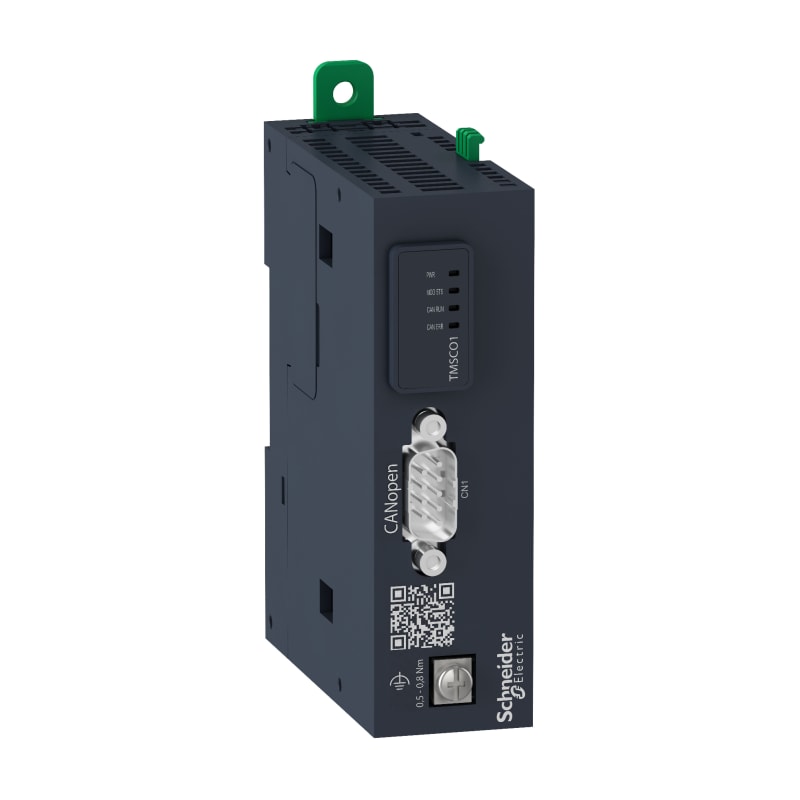

Schneider Electric Smart communication module, Modicon M262, CANopen, 1 SUBD9 TMSCO1

Schneider Electric TMSCO1 Modicon TMCCO1 CANopen communication module for M262 kontroller, 1 SubD9.

Manufacturer part number (MPN)

TMSCO1

EAN / GTIN

3606489604240

Sales unit

pcs

Package quantity

20 pcs

Range of product

Modicon M262

Product or component type

Smart communication module

Range compatibility

Modicon M262

Current consumption

50 mA at 24 V

Number of module per PLC

1 maximum per logic controller; 1 maximum per motion controller

Services

Maximum 63 slave nodes

Communication port protocol

CANopen

Local signalling

1 LED (green) for PWR; 1 LED (green/red) for MOD STS; 1 LED (green) for CAN RUN; 1 LED (red) for CAN ERR

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Width

30 mm

Height

100 mm

Depth

88.3 mm

Standards

UL 61010-1; UL 61010-2-201; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201; CSA C22.2 No 213; ANSI/ISA 12-12-01; IEC 61131-2

Product certifications

CE; cULus; RCM; EAC (pending); Achilles

Resistance to electrostatic discharge

4 kV on contact conforming to IEC 61000-4-2; 8 kV on air conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4; 1 kV (input) conforming to IEC 61000-4-4; 1 kV (transistor output) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-4; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBµV/m A at 30…230 kHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBµV/m A at 230…1000 MHz conforming to IEC 55011

Ambient air temperature for operation

-20…60 °C horizontal installation; -20…50 °C vertical installation

Ambient air temperature for storage

-40…85 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20

Pollution degree

2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 2…8.4 Hz on symmetrical rail; 1 gn at 8.4…200 Hz on symmetrical rail; 3.5 mm at 2…8.4 Hz on panel mounting; 1 gn at 8.4…200 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

ID

Warranty (in months)

18

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Module rack extension

Transmission rate

1000 kBit/s

With potential separation

No

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8517.62

• EAN 3606489604240
• SAP 1200360953
• Code 82366092
