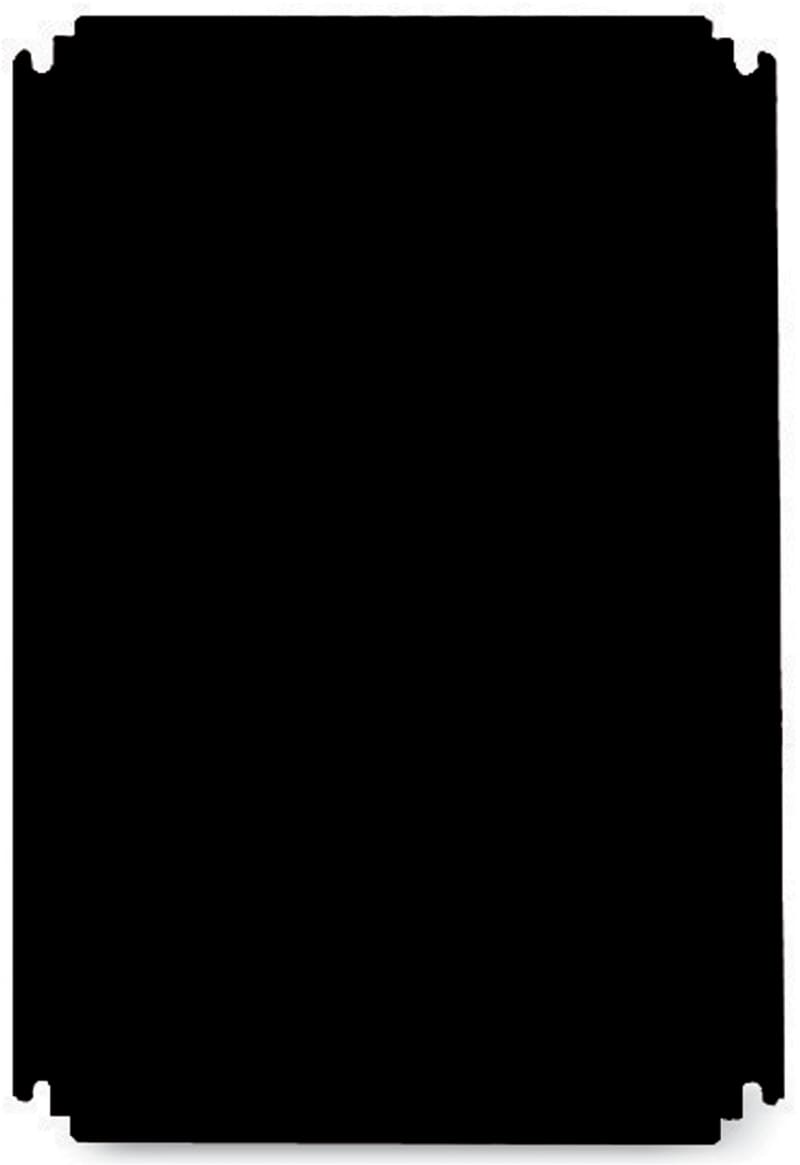

PLA710 bakelite mounting plate
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPMB710 PLA710 bakelite mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMB710
- EAN / GTIN
- 3606480194139
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Step slide; Back inserts
- Mounting plate description
- Insulating
- Range compatibility
- PanelSeT PLA PLA
- Device composition
- 1 mounting plate
- Material
- Bakelite
- Colour
- Black (RAL 9005)
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 750 mm; Real: 640 mm
- Width
- Nominal: 1000 mm; Real: 875 mm
- Depth
- Real : 125 mm
- thickness
- 5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.000 cm
- Package 1 Width
- 64.500 cm
- Package 1 Length
- 89.000 cm
- Package 1 Weight
- 4.020 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 40
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 174.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Untreated
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480194139
- SAP 1000318040
- Code 8826923
Product Documentation
More from Schneider Electric
Schneider Electric
Esmi Impresia In/O module 240V
FFS06741020
Schneider Electric
Schneider Electric sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 5 mm ABE7R08S111
Schneider Electric
Schneider Electric TeSys D - star delta starter - 3 x 3P (3 NO) - 32 A - 230 V AC coil LC3D32AP7
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX160N, 50KA/415VAC, 3 poles, MA trip unit 100A C16N3MA100
Schneider Electric
BOX 16A 1POL C60N/H (KNB16CM2H)
Schneider Electric
MOD.UNIVERS.ADAPT F DIN-Kinne
A9A15152
Schneider Electric

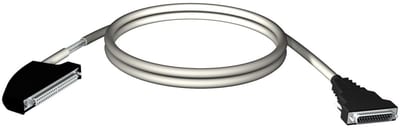

M340 Cable FCN-25P SUBD, 1.5M
BMXFCA152
Schneider Electric

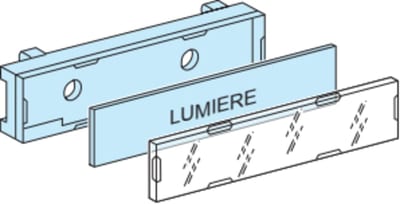

Label Holder w/Labels and Cover 12 Pcs 18x35 G/P
LVS08913
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYPMB710?
- NSYPMB710 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYPMB710.
- What is the HS code for NSYPMB710?
- The customs tariff (HS) code for NSYPMB710 is 3926.90.
- Who manufactures NSYPMB710?
- NSYPMB710 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYPMB710?
- Yes — the NSYPMB710 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYPMB710?
- The minimum order quantity is 1.
- Is NSYPMB710 available?
- Yes — NSYPMB710 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
