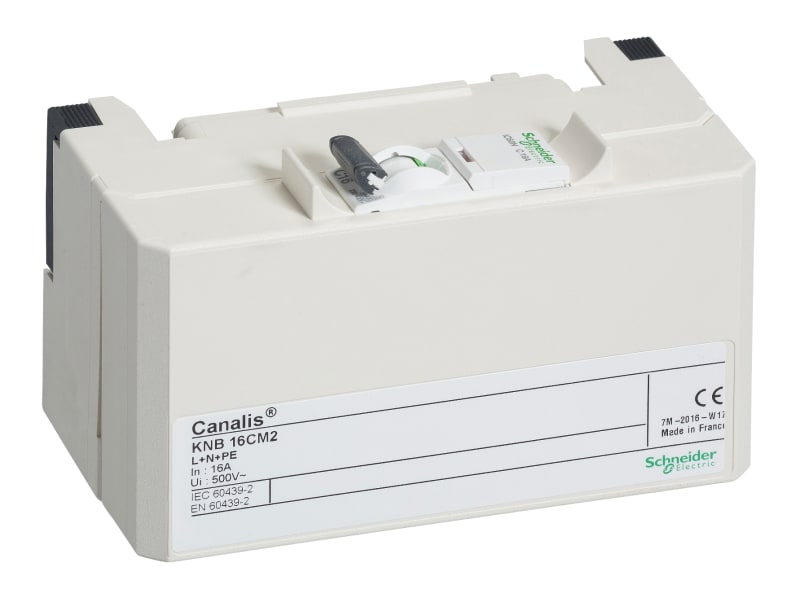

BOX 16A 1POL C60N/H (KNB16CM2H)

Schneider Electric KNB16CM2H Box 16A 1Pol C60N/H.

Manufacturer part number (MPN)

KNB16CM2H

EAN / GTIN

3606480003288

Sales unit

pcs

Rated current

16 A

Range of product

Canalis

Range compatibility

Canalis KN busbar trunking

Product or component type

Tap-off unit

busbar trunking compatibility

Canalis KN busbar trunkingplug-in

[Ie] rated operational current

16 A

Protection type

Circuit breaker: iC60H

Mounting mode

Plug-in with phase selection

Tap-off unit polarity

L+N+PE

Colour

White (RAL 9001)

Device application

Low power distribution

Provided equipment

1 circuit-breaker; cable clamp

[Ue] rated operational voltage

230...500 V depending on protective device

[Uimp] rated impulse withstand voltage

4.6 kV

[Ui] rated insulation voltage

400 V depending on protective device; 500 V depending on protective device

Network frequency

50/60 Hz

Electrical connection

Cable clamp terminal 4 mm² flexible; Cable clamp terminal 6 mm² rigid

door/cover opening side

Front

Tap-off unit disconnection mode

By drawing out

Standards

IEC 61439-6; IEC 61439-1

Width

79 mm

Depth

70 mm

Height

172 mm

Product weight

0.34 kg

Earthing system

TT; TN-S

IP degree of protection

IP41 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

96

Country of origin

FR

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

Miniature circuit breaker (MCB)

Number of conductors (without earthing)

4

Phase selection

Yes

Number of poles

4

Length

79 mm

Degree of protection (IP)

IP55

Branch off type

Pipe in-lead

Rated voltage AC 50 Hz

230–500 V

Rated current AC 50 Hz

16 A

HS Code

8536.90

• EAN 3606480003288
• SAP 1200721700
• Code 83841220
