Schneider Electric LVS04223 Vertical DIN Rails for Terminal Blocks, 4-Pack
Pricing
Request a quote
We reply within 24 hours
Product Description

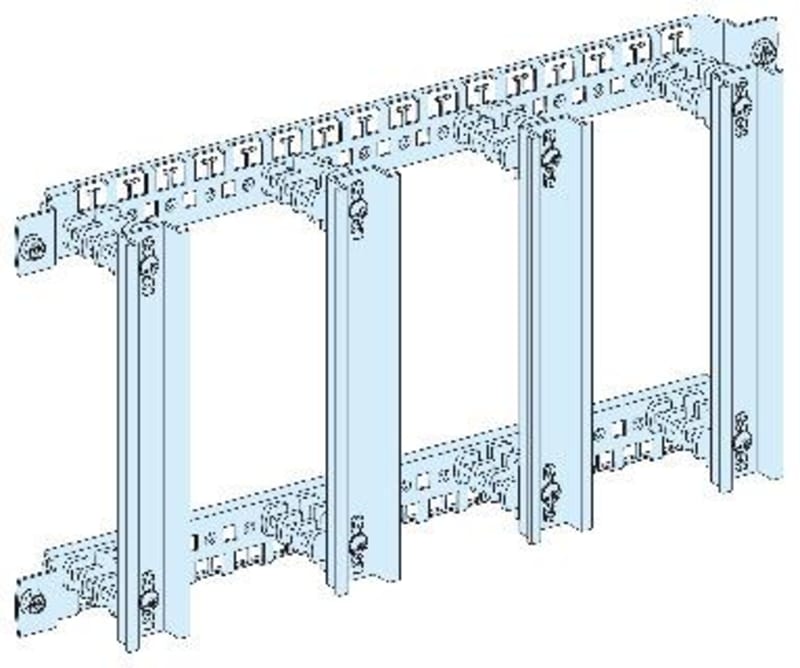

Schneider Electric LVS04223 is a set of 4 vertical DIN rails for mounting terminal blocks inside PrismaSeT G floor-standing or wall-mounted enclosures of 600 mm width. The plate measures 470 x 250 x 80 mm in sheet steel with a textured white RAL 9003 epoxy-polyester finish. Conforms to IEC 61439-2 and carries ASTA certification. Country of origin: France; 18-month warranty.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04223
- EAN / GTIN
- 3606481874528
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm
- Provided equipment
- 4 vertical DIN rails
- Installed device
- Connection: terminal blocks
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured
- Colour
- White (RAL 9003)
- Width
- 470 mm
- Height
- 250 mm
- Depth
- 80 mm
- Product weight
- 1.06 kg
- Functional unit
- 600 mm PrismaSeT G floor-standing enclosure connection terminal blocks; 600 mm PrismaSeT G wall-mounted enclosure connection terminal blocks
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481874528
- SAP 1200547077
- Code 82879508
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ClimaSys PTC heating resistance 55W, 270-420V NSYCR55WU3
Schneider Electric
Schneider Electric passive connection sub-base ABE7 - 16 inputs or outputs - Led - insulator ABE7H16S21
Schneider Electric
PLUG 3L+N 250mm (AK5PC34)
Schneider Electric
Selector switch with LIGHT 2 POSITIONS RET. H Green
ZB5AK1433
Schneider Electric
Schneider Electric PanelSeT SF/SM double-insert handle NSYSFHD3
Schneider Electric
Schneider Electric modular smart relay Zelio Logic - 10 I O - 24 V DC - clock - display SR3B101BD
Schneider Electric
Emergency stop pressure/pull Ø57
9001KR9R21H6
Schneider Electric
Schneider Electric ACTI9 20X Screw shield iCT 3-4P 16-25A A9A15921
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS04223?
- LVS04223 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS04223.
- What is the HS code for LVS04223?
- The customs tariff (HS) code for LVS04223 is 8536.90.
- Who manufactures LVS04223?
- LVS04223 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LVS04223?
- Yes — the LVS04223 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS04223?
- The minimum order quantity is 1.
- Is LVS04223 available?
- Yes — LVS04223 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
