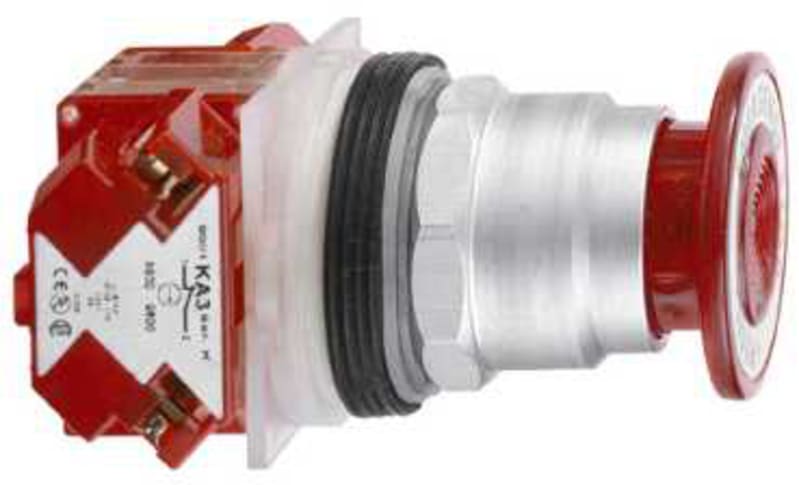

Emergency stop pressure/pull Ø57

Schneider Electric 9001KR9R21H6 Emergency stop pressure/pull Ø57.

Manufacturer part number (MPN)

9001KR9R21H6 EAN / GTIN: 3389118040014 Sales unit: pcs Package quantity: 16 pcs Diameter: 57 mm Range of product: Harmony 9001K Product or component type: Push-button Device short name: 9001K Type of operator: push-pull Operator profile: Red mushroom Ø 57 mm, unmarked Bezel material: Metal Mounting diameter: 30 mm Product weight: 0.141 kg Operating position: Any position Shape of signaling unit head: Round Head material: Plastic Operator additional information: Metal guard Operator position information: 2 positions Contacts type and composition: 1 NC Contact operation: Standard Positive opening: With conforming to IEC 60947-5-2 Mechanical durability: 5000000 cycles Connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 Tightening torque: 0.8 N.m conforming to IEC 60947-1 Shape of screw head: Cross slotted Contacts material: Silver alloy contacts Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1 [Ith] conventional free air thermal current: 10 A [Ui] rated insulation voltage: 250 V (pollution degree 3) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1 [Ie] rated operational current: 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA; 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA [Icm] rated short-circuit making capacity: 12 kA at 600 V AC-15, 7200 VA; 15 kA at 480 V AC-15, 7200 VA; 30 kA at 240 V AC-15, 7200 VA; 60 kA at 120 V AC-15, 7200 VA; 0.1 kA at 600 V DC-13; 0.27 kA at 250 V DC-13; 0.55 kA at 125 V DC-13 Rated breaking capacity: 3 kA at 240 V AC-15, 720 VA; 6 kA at 120 V AC-15, 720 VA; 1.2 kA at 600 V AC-15, 720 VA; 1.5 kA at 480 V AC-15, 720 VA; 0.1 kA at 600 V DC-13; 0.27 kA at 250 V DC-13; 0.55 kA at 125 V DC-13 Device presentation: Complete product Cap/operator or lens colour: Red Size: 30 mm Protective treatment: TC Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -25…70 °C Overvoltage category: Class II conforming to IEC 61140 IP degree of protection: IP65/IP66 NEMA degree of protection: NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 6 Standards: IEC 60947-5-1; IEC 60947-1; IEC 60947-5-4; JIS C 4520; JIS C 852; UL 508; CSA C22.2 No 14 Product certifications: UL 508; NEMA Vibration resistance: 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance: 50 gn conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Number of Units in Package 2: 16 Country of origin: MX Warranty (in months): 18 Hole diameter: 31 mm Colour button: Red/green Suitable for lighting: No Number of command positions: 1 Spring-return: No Type of button: Mushroom Colour front ring: Chrome Type of electric connection: Screw connection Degree of protection (IP): IP66 material front ring: Metal With front ring: Yes Transparent: No Construction type lens: Round Switching function latching: Yes Number of contacts as normally closed contact: 1

HS Code

8536.50

• EAN 3389118040014
• SAP 1000257733
• Code 81144401
