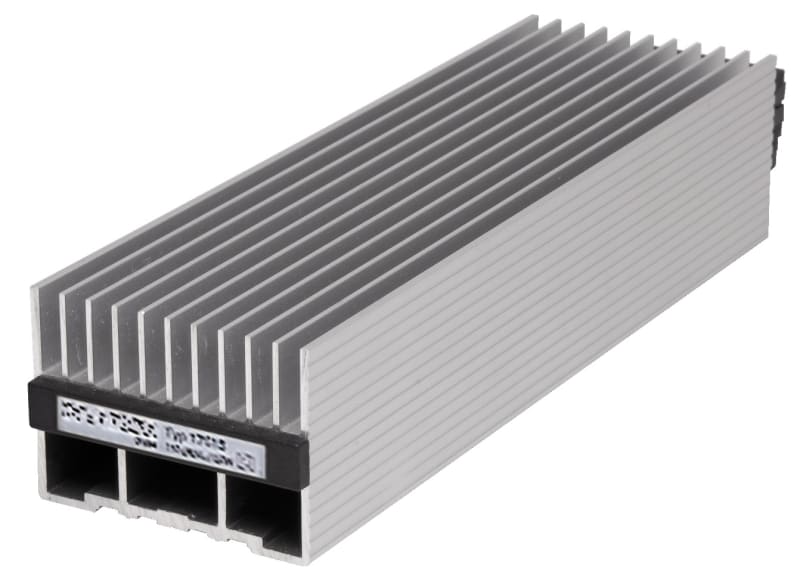

Schneider Electric ClimaSys PTC heating resistance 55W, 12-24V NSYCR55WU1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR55WU1 HEATING ELEMENT 55 W 12-36V DC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR55WU1
- EAN / GTIN
- 3606480152153
- Sales unit
- pcs
- Voltage
- 12-36 V
- Power
- 55 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 55 W
- Input voltage
- 12...24 V DC
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium
- Condition of use
- Air sealed enclosure; Electrical protection is needed; Heaters must be installed with a thermal controller
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Number of Units in Package 3
- 320
- Country of origin
- CN
- Warranty (in months)
- 18
- Width
- 70 mm
- Height
- 205 mm
- Depth
- 85 mm
- Voltage type
- DC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 55 W
- Operating voltage DC
- 12–24 V
- Continuous heating power at 10 °C
- 55 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152153
- SAP 1000089022
- Code 8913303
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric external power supply module, input voltage 110 V AC to 130 V AC 50/60 Hz, output voltage 24 V DC, output current 1 A LV454443
Schneider Electric
Schneider Electric Power cabinet, Schneider StarCharge Fast 720, 360kW, upgradable up to 480kW EVD1S360
Schneider Electric
Schneider Electric 84mm Rotating Mirror Green 24VAC-DC XVR08B03
Schneider Electric
Schneider Electric Harmony, Interface plug-in relay pre-assembled, 5 A, 2 CO, with LED, with lockable test button, with protection circuit, 24 V AC RXG22B7PV
Schneider Electric
Schneider Electric Modicon TM3 - 8 outputs transistor NPN (spring) TM3DQ8UG
Schneider Electric
Schneider Electric Multi-sound Siren 12/24VDC 2 Tones XVS10BMW
Schneider Electric
Schneider Electric communicating motor mechanism module (MCH), drawout ComPact NS630B to NS1600, 48/60 VDC, 48 VAC 50/60 Hz
33838
Schneider Electric
Schneider Electric chassis locking kit, ComPact NSX, keylock not included LV429286
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCR55WU1?
- NSYCR55WU1 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCR55WU1.
- What is the HS code for NSYCR55WU1?
- The customs tariff (HS) code for NSYCR55WU1 is 8516.29.
- Who manufactures NSYCR55WU1?
- NSYCR55WU1 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCR55WU1?
- Yes — the NSYCR55WU1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCR55WU1?
- The minimum order quantity is 1.
- Is NSYCR55WU1 available?
- Yes — NSYCR55WU1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
